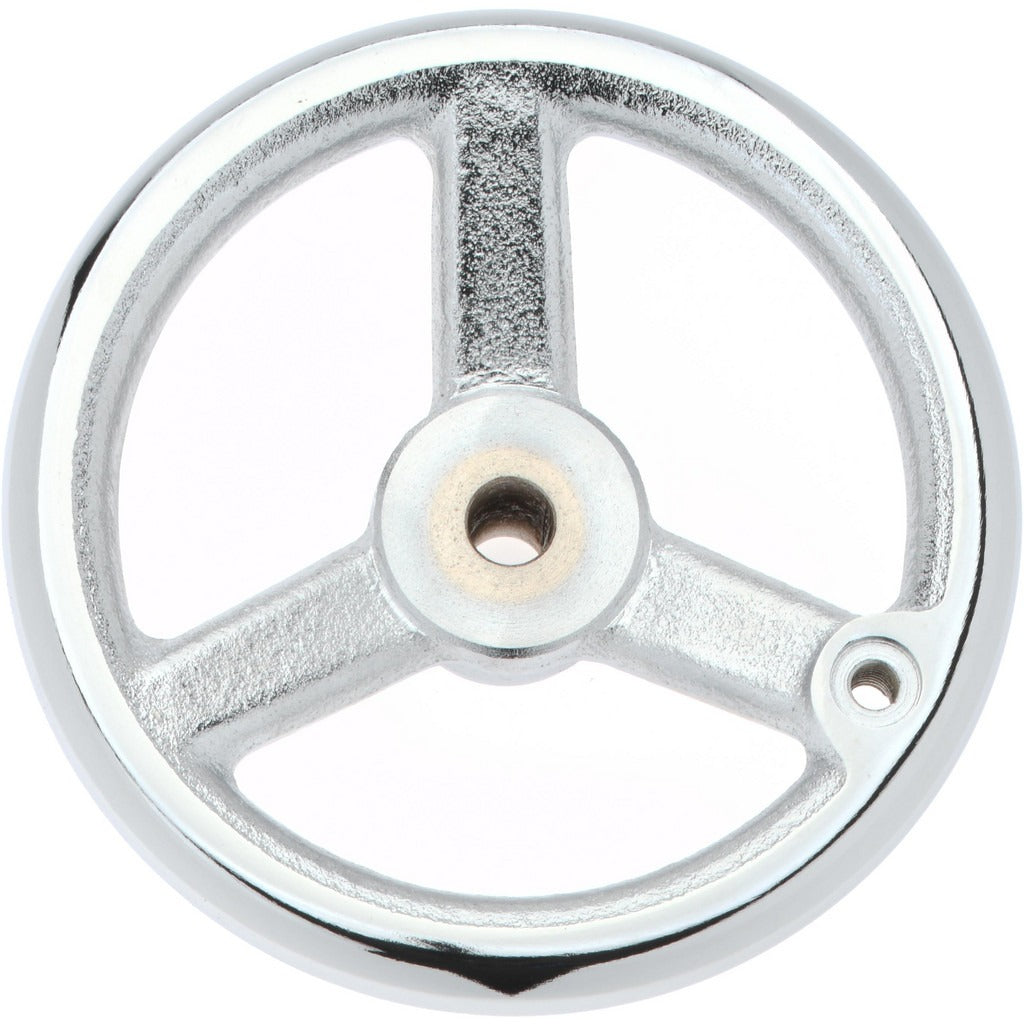

Gibraltar A23-6-G Spoked Offset Handwheel 6 in Chrome

Product Description

The GIBRALTAR A23-6-G is a spoked offset handwheel designed for manual valve and machine tool applications requiring a repositioned grip axis relative to the bore centerline. Finished in chrome plating over an iron hub, this handwheel features 3 spokes, a 6-inch handle diameter, and a 5/16-18 threaded bore insert. The offset configuration allows operators to rotate a shaft or valve stem in confined spaces where a standard inline handwheel would not clear surrounding structure. At 2.75 pounds, the A23-6-G provides solid feel and durable service in industrial and mechanical system environments. Installers include millwrights, pipefitters, and maintenance mechanics.

This handwheel is suited for use on manual shut-off valves, machine tool feed handles, jig fixtures, and similar manually operated mechanical assemblies in both light industrial and commercial settings. The chrome-plated finish resists surface oxidation in environments with moderate humidity exposure. The 1/2-inch bore diameter and 5/16-18 thread accommodate standard valve stem and shaft configurations common in industrial machine and fluid-handling equipment.

Key Features

• Offset handwheel design allows operation in tight or obstructed clearance spaces
• Chrome-plated finish over iron hub for durability and corrosion resistance
• 3-spoke construction provides open grip access and reduced weight compared to solid-disc wheels
• 6-inch handle diameter delivers mechanical advantage for torque-sensitive applications
• 5/16-18 threaded bore accommodates standard shaft and stem fasteners
• 1/2-inch bore diameter fits common valve stem and machine shaft sizes

Compatibility

Designed as an OEM-style replacement or retrofit handwheel for manual valves, machine tool assemblies, and industrial equipment requiring a 6-inch offset handwheel with a 1/2-inch bore and 5/16-18 thread.

Installation Notes

Installation is performed by millwrights, pipefitters, or qualified maintenance mechanics. Before mounting, isolate and de-energize or depressurize the associated system per applicable safety lockout/tagout procedures. Verify that the shaft or stem thread matches the 5/16-18 specification and that the bore diameter clears the mating shaft without binding. Do not force the handwheel onto a mismatched thread or undersized bore.
