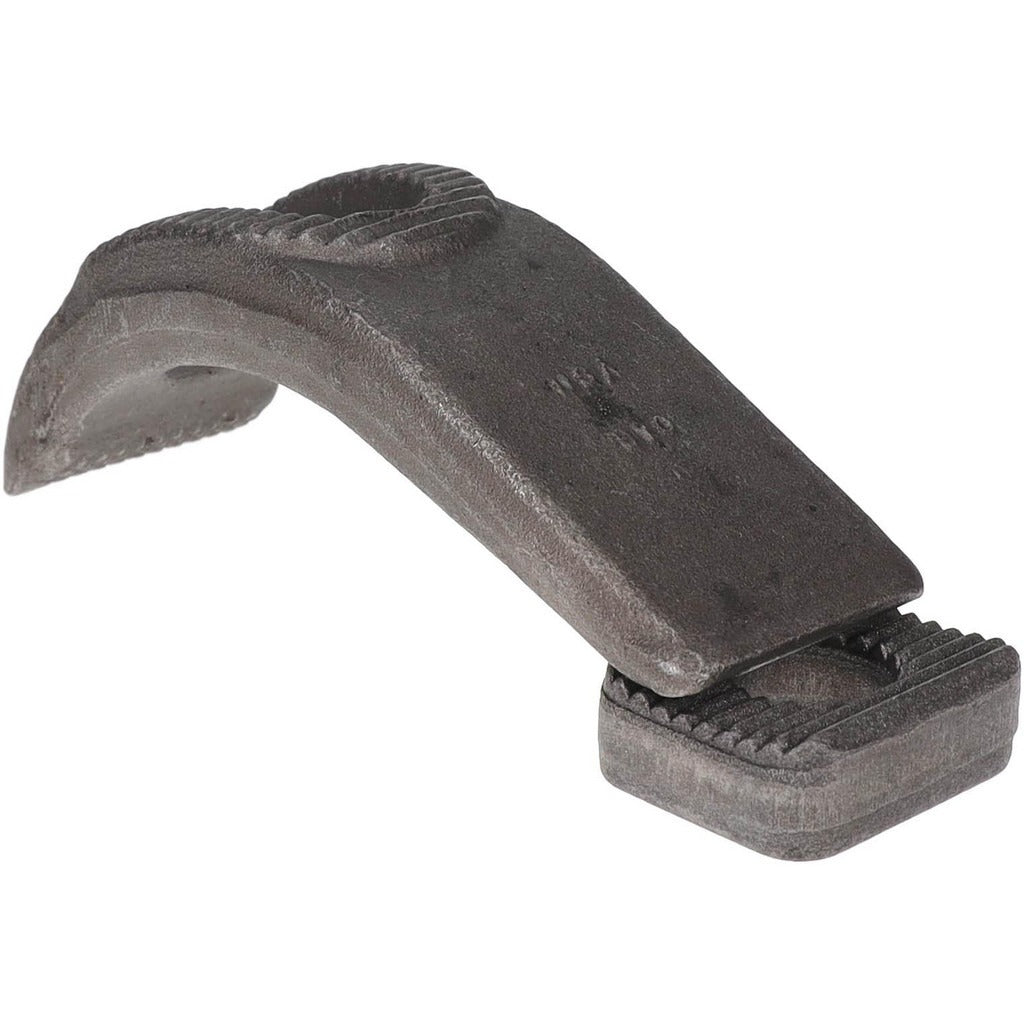

Gibraltar 910/910-A-G Clamp Strap Carbon Steel 5/8 in Stud

Product Description

The GIBRALTAR 910/910-A-G is a carbon steel clamp strap designed for secure workholding and fixturing applications in machine shops, toolrooms, and fabrication environments. Built with a plain nose and plain heel configuration, this strap delivers straightforward clamping force without serrated interference on finished or precision surfaces. The strap measures 5-1/16 inches overall length, 1-5/8 inches wide, and 2-1/4 inches high, with a 5/8-inch stud size and a 2-1/4-inch adjustment range. It is a non-tapped design. Machinists, toolmakers, and fabricators install this type of strap as part of standard T-slot or step-block setups on milling machines, drill presses, and surface tables.

This clamp strap suits general-purpose workholding setups in job shops, production machining, and maintenance environments. Its serrated bearing surface adds grip during clamping operations, while the plain nose keeps contact clean on flat or delicate workpiece surfaces. The 5/8-inch stud size aligns with common T-slot bolt kits and modular clamping sets. It is sold as a single unit and is appropriate for both light and moderate clamping loads typical of manual machining operations.

Key Features

• Carbon steel construction for durability in shop environments
• Plain nose and plain heel for clean contact on finished surfaces
• Serrated bearing surface for positive grip during clamping
• 5/8-inch stud size compatible with standard T-slot bolt hardware
• 2-1/4-inch adjustment range for flexible workpiece positioning
• Non-tapped design for straightforward strap-and-bolt assembly

Compatibility

Designed as a standard replacement or supplemental clamp strap for 5/8-inch stud workholding setups on milling machines, drill presses, and similar machine tool fixtures.

Installation Notes

Installation is typically performed by machinists or toolroom personnel using standard T-slot bolts, step blocks, and a torque wrench or hand wrench appropriate for the stud size. Always ensure the machine is powered down and the spindle is secured before adjusting workholding components. Position the strap so the load point is as close to the workpiece as possible and the step block is nearest the T-slot bolt to maximize clamping efficiency. Do not exceed the clamping capacity appropriate for the stud diameter and base material.
