Gibraltar 8E-MACH.-G Rod End 7/8-9 Unc Male Thread Steel

Product Description

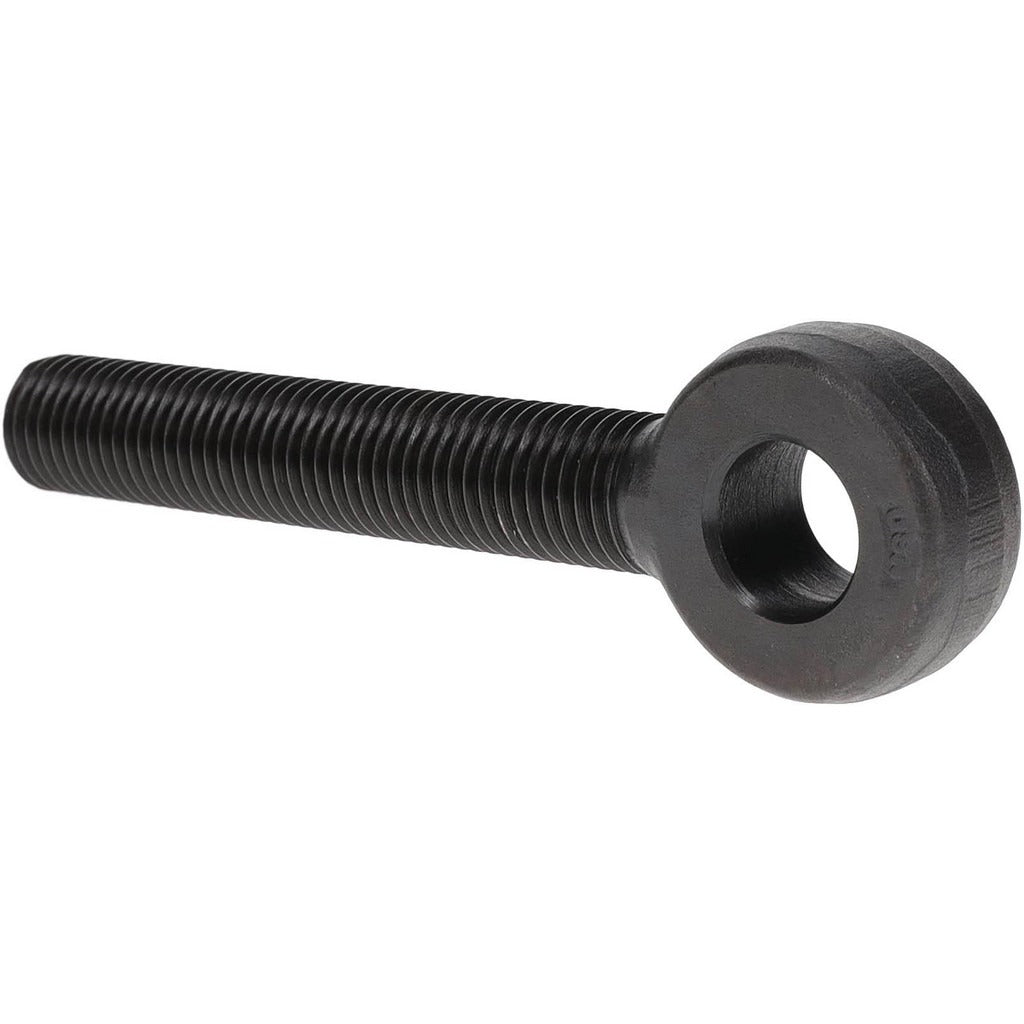

The GIBRALTAR 8E-MACH.-G is a male-thread rod end with an eye hole head, manufactured from steel with a black oxide finish. It features a 7/8-9 UNC external thread and is used to create articulating pivot connections in mechanical linkages, actuator assemblies, and motion-control systems. The shank diameter measures 7/8 inches, the thread length is 1-13/16 inches, and the hole center-to-end distance is 6 inches. Grade C-1030/C-1035 steel provides reliable tensile strength for moderate-load industrial and mechanical service applications. Installation is typically performed by millwrights, maintenance mechanics, or experienced tradespeople working on mechanical drive and control systems.

This rod end is suited for use in industrial machinery, actuator rods, steering linkages, and mechanical control assemblies where a pivoting end connection is required. The eye hole head accepts a clevis pin or bolt to complete the pivot joint. The black oxide finish provides light corrosion resistance for general indoor or protected-environment use. The inch-series 7/8-9 UNC thread allows direct connection to standard threaded rod or actuator shafts without adapters.

Key Features

• 7/8-9 UNC external male thread for direct connection to standard threaded rod or shafts
• Eye hole head design allows pivoting motion in single-plane linkage assemblies
• C-1030/C-1035 steel construction for moderate-load mechanical service
• Black oxide finish provides light corrosion resistance
• 6-inch hole center-to-end distance suits medium-reach linkage configurations
• Inch-series dimensions with 7/8-inch shank diameter and 1-13/16-inch thread length

Compatibility

Designed as an OEM-style replacement or new-installation rod end for inch-series mechanical linkage and actuator assemblies using 7/8-9 UNC threaded connections.

Installation Notes

Installation is performed by qualified mechanics or millwrights. Shut down and de-energize all associated machinery and relieve any hydraulic or pneumatic pressure before removing or installing rod ends. Thread engagement should be sufficient to handle the rated load without bottoming out in the mating component. Verify alignment of the pivot axis to avoid side-loading the eye hole during operation.
