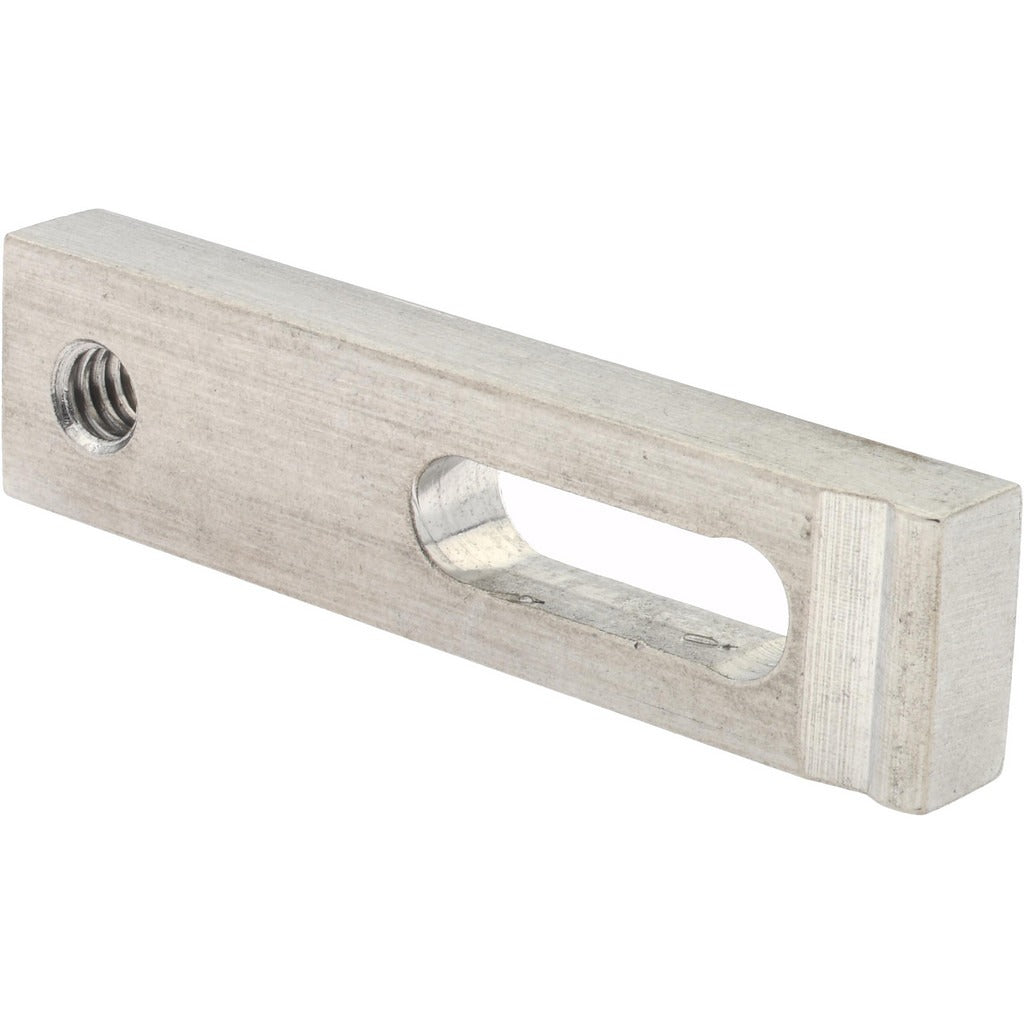

Gibraltar 88364856 Clamp Strap Stainless Steel Radius Nose

Product Description

The GIBRALTAR 88364856 is a stainless steel clamp strap designed for secure workholding and fixturing applications. Constructed from 304 stainless steel, this strap resists corrosion and maintains clamping force in demanding environments. It features a radius nose profile and accepts a 9/32 inch stud with a 1/4-20 tap size. At 2-1/2 inches overall length and 0.05 pounds, it is a compact, lightweight component suited for machine tool setups, jigs, and fixture work performed by machinists and tooling technicians.

This clamp strap is used in manual and CNC machining environments where repeatable, low-profile clamping is required. The radius nose distributes clamping load across the workpiece surface, reducing the risk of surface marking. With 11/16 inch of travel, it accommodates workpieces of varying thickness without changing stud height. It is sold as a single unit and is appropriate for both production shop and maintenance applications where stainless material is specified for cleanliness or corrosion resistance.

Key Features

• 304 stainless steel construction for corrosion resistance
• Radius nose profile for distributed clamping load
• 9/32 inch stud size with 1/4-20 tap size
• 11/16 inch travel accommodates variable workpiece thickness
• Non-serrated contact surface to minimize workpiece marring
• Compact 2-1/2 inch overall length for tight fixture layouts

Compatibility

Designed as a standard clamp strap for use with 1/4-20 threaded stud clamping systems commonly found in manual and CNC machining fixtures and workholding setups.

Installation Notes

Installation is performed by machinists or tooling technicians using standard hand tools. Ensure the mating stud and T-slot hardware are rated for the intended clamping load before assembly. Position the strap so the radius nose contacts the workpiece squarely to avoid uneven load distribution. Power down any machine tool and confirm the table is stationary before adjusting or repositioning clamp hardware.
