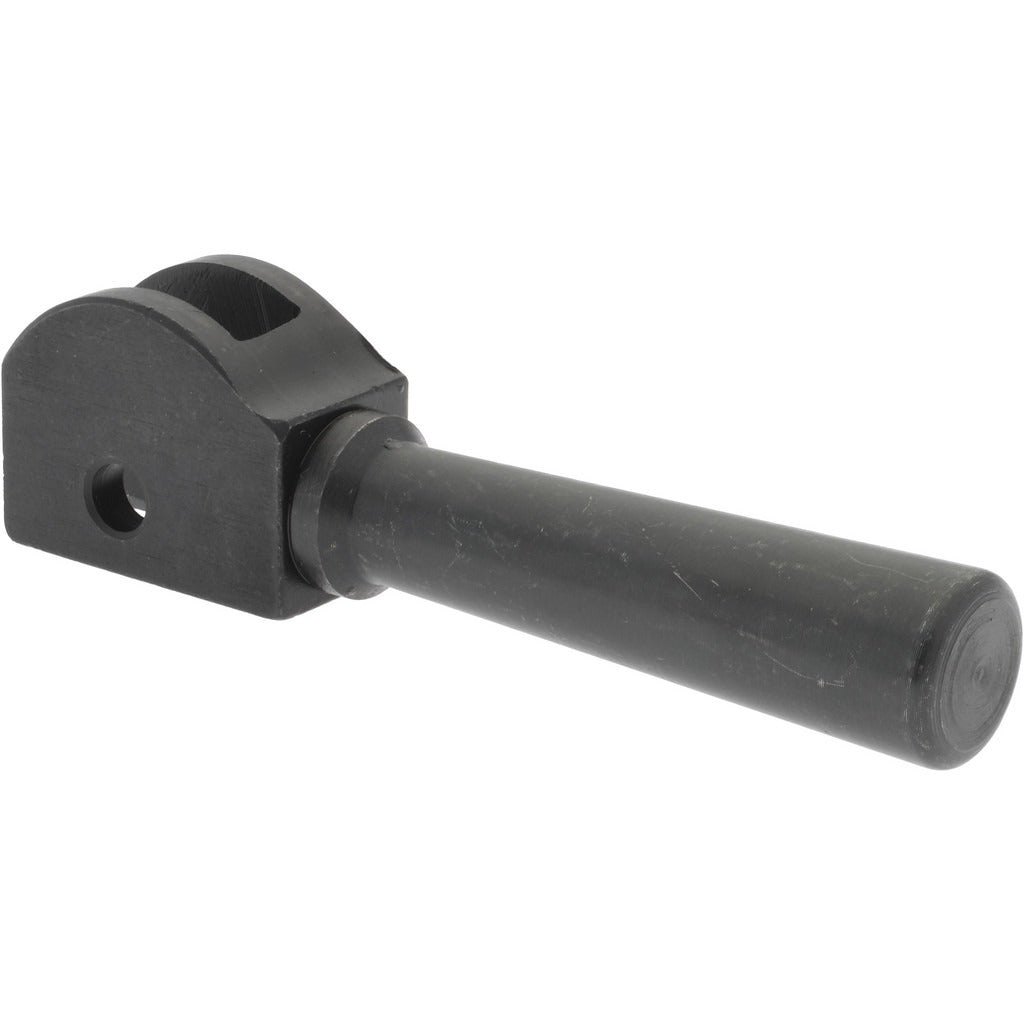

Gibraltar 849005-G Double Cam Clamp Lever 3/16 Inch

Product Description

The GIBRALTAR 849005-G is a double cam clamp lever designed for use in mechanical clamping and indexing applications. Made from heat treated steel with a black oxide finish, this lever provides reliable holding force in a compact form. The 3/16 inch hole diameter accommodates standard fastener sizes, and the 2.5 inch hole center to lever end dimension gives the operator adequate leverage for manual actuation. The 1/16 inch travel keeps cam engagement tight and controlled. Machinists, tool and die technicians, and industrial maintenance professionals install this type of lever in fixtures, jigs, and clamping assemblies where repeatable locking is required.

This clamp cam lever is suited for use in production tooling, machine fixtures, and workholding equipment. The double cam configuration delivers clamping force on both sides of the lever pivot, making it appropriate for applications requiring balanced load distribution. The 9/16 inch overall width and 1/4 inch space between cams fit into standard fixture slots and tooling plate setups common in light industrial and precision machining environments.

Key Features

• Double cam design for balanced clamping force at the pivot point
• Heat treated steel construction for durability under repeated actuation
• Black oxide finish provides mild corrosion resistance
• 3/16 inch hole diameter fits standard fastener sizes used in tooling fixtures
• 1/16 inch travel for precise and controlled cam engagement
• Compact 9/16 inch overall width suits tight fixture and jig clearances

Compatibility

Designed as an OEM-style replacement or direct-fit component for double cam clamping lever applications in standard industrial fixtures and workholding assemblies.

Installation Notes

Installation is typically performed by a machinist or maintenance technician. Disengage and de-energize any associated machinery before replacing or servicing clamp levers. Ensure the mounting fastener diameter matches the 3/16 inch hole before assembly. Verify cam travel and seating after installation to confirm proper clamping function before returning the fixture to service.
