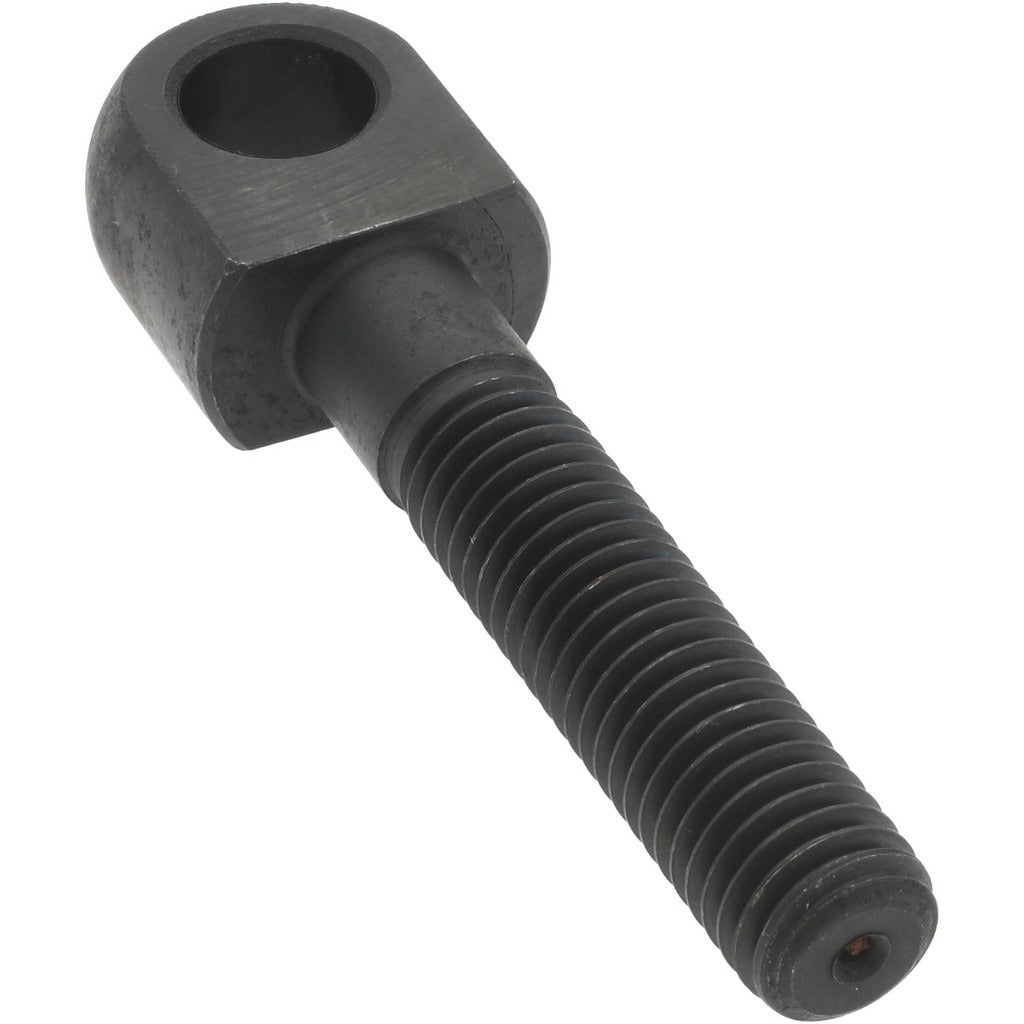

Gibraltar 832760-G Swing Bolt 1/2-13 Steel Black Oxide

Product Description

The GIBRALTAR 832760-G is a steel swing bolt designed for clamping and toggle-latch applications in industrial and mechanical assembly work. It features a 1/2-13 thread size with a 1-3/4 inch thread length, a 1/2 inch hole diameter, and a black oxide finish that provides moderate corrosion resistance. The head is 5/8 inches thick with a 1-inch head width, and the hole center-to-end measurement is 3-1/8 inches. Manufactured from Grade 1045 steel, this bolt delivers the strength and dimensional consistency required for repeatable clamping setups. Machinists, maintenance technicians, and assembly line personnel are the typical end users.

This swing bolt is suited for use in fixture clamping, jig assemblies, and toggle-clamp configurations on production equipment or workholding setups. The swing feature allows the bolt to pivot clear of the workpiece for rapid loading and unloading cycles. It is appropriate for light to medium industrial clamping applications where a standard 1/2-13 threaded bolt with a swinging mount is required. The black oxide finish is consistent with shop-floor and machine-tool environments.

Key Features

• 1/2-13 thread size with 1-3/4 inch thread length for secure clamping engagement
• Grade 1045 steel construction for reliable strength in fixture and jig applications
• Black oxide finish for moderate surface protection in shop environments
• 1/2 inch hole diameter and 3-1/8 inch hole center-to-end for standard pivot mounting
• 5/8 inch head thickness and 1 inch head width for consistent bearing surface contact

Compatibility

Designed as an OEM-style replacement or direct-fit component for standard 1/2-13 swing bolt clamping assemblies and toggle-latch fixtures requiring a Grade 1045 steel bolt with black oxide finish.

Installation Notes

Installation is typically performed by machinists or maintenance technicians using standard hand tools. Ensure the pivot hole and mounting surface are free of burrs and debris before installation. Verify thread engagement depth meets the requirements of the clamping fixture design. De-energize or lock out any powered equipment before servicing or replacing swing bolts in active assemblies.
