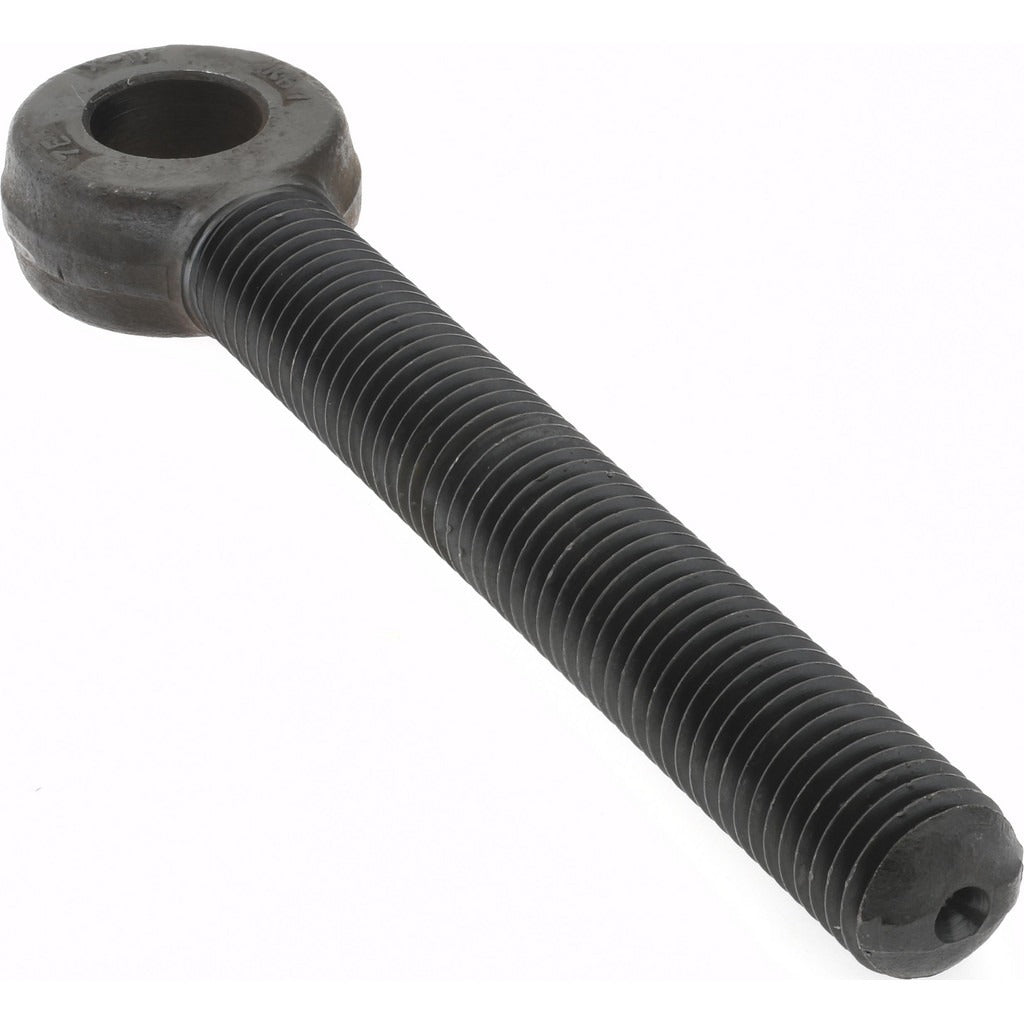

Gibraltar 7E-B7 Mach.-g Rod End 3/4-10 Alloy Steel

Product Description

The GIBRALTAR 7E-B7 MACH.-G is a male-threaded rod end designed for mechanical linkage and motion-control applications requiring a secure pivot or articulation point. Built from grade 4140 alloy steel with a black oxide finish, this rod end features an eye hole head that accepts a 3/4-inch pin or fastener. The external male thread is sized at 3/4-10 with a thread length of 5.125 inches and a shank diameter of 0.75 inches. The hole center-to-end dimension measures 6 inches. Licensed mechanics, millwrights, and maintenance technicians install these components on actuator rods, tie rods, and clevis-style assemblies across industrial and agricultural equipment.

This rod end is suited for industrial machinery, conveyor systems, agricultural implements, and general mechanical linkage where a rotating or pivoting connection is needed at the end of a threaded rod or cylinder shaft. The eye hole head style provides a clean through-hole mount point. Its 4140 alloy steel construction handles moderate-to-high load conditions where standard carbon steel rod ends would be insufficient. Black oxide finish provides mild corrosion resistance in controlled indoor or sheltered environments.

Key Features

• Grade 4140 alloy steel construction for elevated strength and load capacity
• Black oxide finish for mild corrosion and wear resistance
• External male thread at 3/4-10 for direct threading onto actuator rods or linkage
• Eye hole head accepts 3/4-inch pin with a 1.5-inch outside diameter and 0.75-inch head thickness
• 6-inch hole center-to-end length for precise linkage geometry
• 5.125-inch thread engagement length accommodates deep threading and positional adjustment

Compatibility

Designed as an OEM-style replacement or upgrade rod end for industrial and mechanical linkage assemblies requiring a 3/4-10 external male thread and eye hole head configuration in the inch measurement system.

Installation Notes

Installation is performed by qualified millwrights, maintenance mechanics, or industrial technicians. Always de-energize and lock out equipment before removing or installing rod ends on actuated linkages. Thread the rod end onto the mating rod or shaft and verify full thread engagement before applying load. Inspect the through-hole pin and retaining hardware for proper fit and secure fastening before returning the assembly to service.
