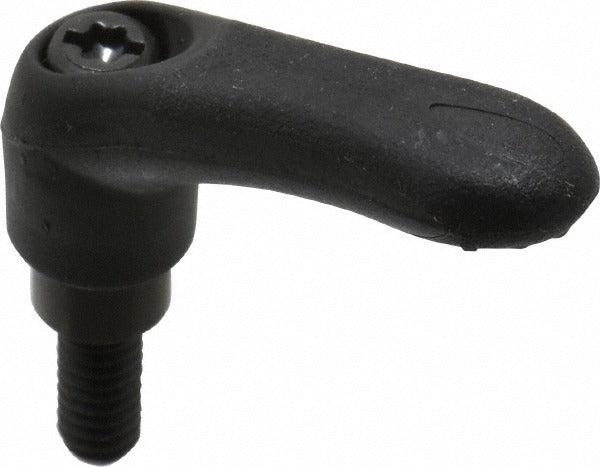

Gibraltar 7C40KQ8SAAN001G Adjustable Clamping Handle

Product Description

The GIBRALTAR 7C40KQ8SAAN001G is an adjustable clamping handle designed for tool-free fastening and adjustment applications on machinery, fixtures, and equipment. It features a 1/4-20 threaded stud mount and a thermoplastic elastomer (TPE) grip body in black. The hub diameter measures 0.39 inches, the stud length is 0.59 inches, and the actual handle height is 0.96 inches. The projected handle height reaches 1.46 inches when extended. This type of hardware is installed by maintenance technicians, machine builders, and industrial assembly professionals working on light to medium-duty clamping and positioning tasks.

This clamping handle is suited for use on jigs, fixtures, enclosures, guards, and panel assemblies where hand-tightened adjustments are required. The 1/4-20 thread size is a common standard in light industrial and trade hardware, making this handle a straightforward drop-in fit for many existing threaded inserts and studs. It is appropriate for both production floor and service environments where repeated adjustment without tools is necessary.

Key Features

• 1/4-20 threaded stud mount for broad hardware compatibility
• Thermoplastic elastomer grip provides firm hand feel and resistance to oils and common shop fluids
• Compact hub diameter of 0.39 inches and hub height of 0.28 inches for tight-clearance mounting
• Actual handle height of 0.96 inches with a projected height of 1.46 inches
• Actual handle length of 1.87 inches for comfortable one-hand operation
• Black finish for standard industrial appearance

Compatibility

Designed as a standard replacement or addition for equipment and fixtures using 1/4-20 threaded stud clamping hardware in light industrial and trade assembly applications.

Installation Notes

Installation requires threading the stud into a 1/4-20 tapped hole or mating insert by hand. Ensure the mating thread is clean and free of debris before installation. No special tools are required for standard hand-tight applications. For applications requiring a defined clamping load, consult the equipment manufacturer specifications before use.
