Gibraltar 75283291 Jig Foot 5/16-18 Thread Black Oxide

Product Description

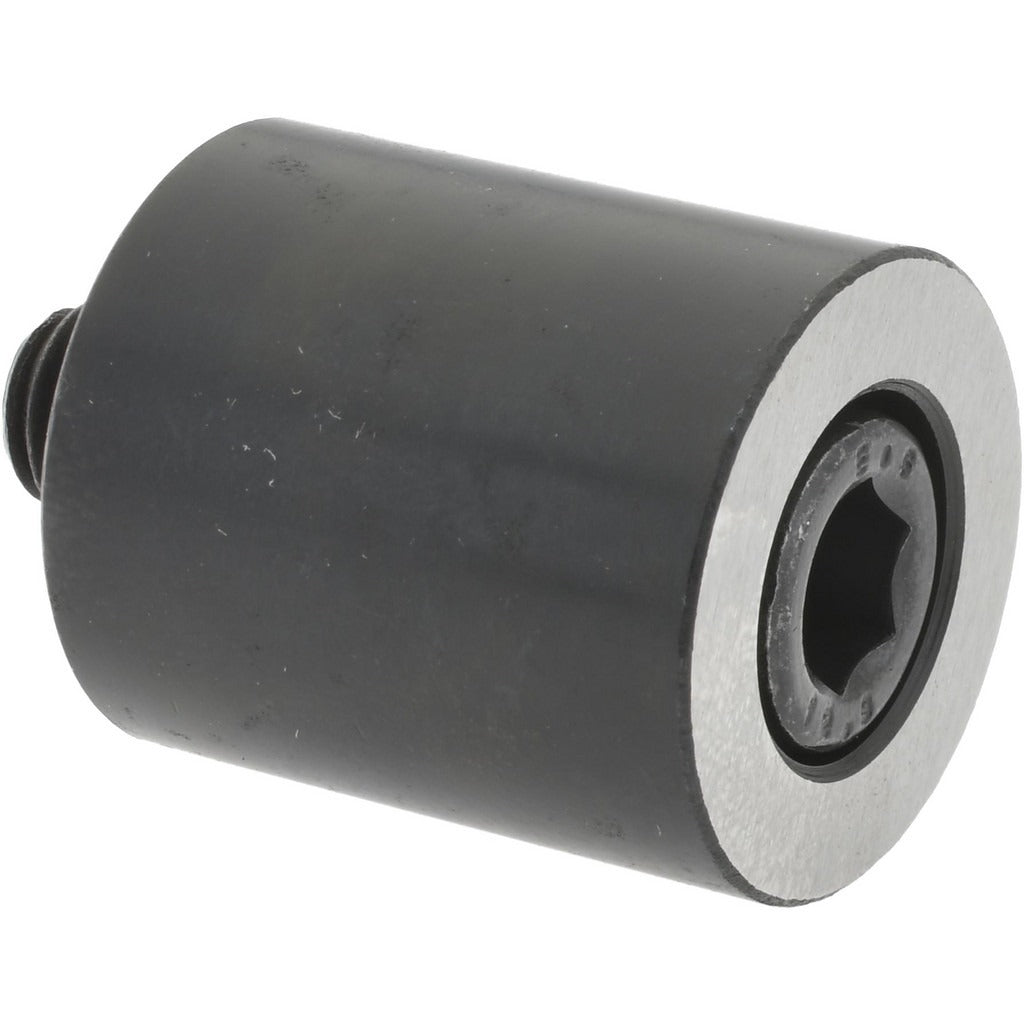

The GIBRALTAR 75283291 is a jig foot designed for use in workholding, fixture building, and tooling setups where a stable, adjustable support point is required. Built from low carbon steel with a black oxide finish, this jig foot provides corrosion resistance and a durable surface for repeated use in shop and production environments. It features a 5/16-18 threaded shank, an outer diameter of 7/8 inches, and stands 1 inch in height. A cap screw is included. Machinists, toolmakers, and fixture builders install these as leveling or support feet on jigs, fixtures, and workholding assemblies.

This jig foot is suited for use in machine shops, production facilities, and toolroom environments where precision fixtures and jigs require reliable, repeatable support points. It threads directly into tapped holes in fixture plates, jig bodies, or base components. The black oxide finish reduces light reflection and provides mild corrosion resistance in dry indoor environments. The included cap screw simplifies installation without requiring additional hardware sourcing.

Key Features

• 5/16-18 threaded shank for direct installation into standard tapped holes
• 7/8 inch outer diameter base for stable contact surface
• 1 inch height provides consistent standoff in fixture assemblies
• Low carbon steel construction for strength in workholding applications
• Black oxide finish for corrosion resistance and reduced glare
• Includes cap screw — no additional hardware required

Compatibility

Designed as a standard jig foot for use in fixture plates, jig bodies, and tooling assemblies with 5/16-18 tapped mounting holes.

Installation Notes

Installation is performed by machinists or toolmakers using standard hand tools. Thread the jig foot into a 5/16-18 tapped hole and secure with the included cap screw to lock position. Ensure the mating threads in the fixture or jig body are clean and free of debris before installation. Follow applicable shop safety procedures when working with machine tools and fixturing equipment.
