Gibraltar 75283242 Jig Foot 1/4-20 Thread Black Oxide Steel

Product Description

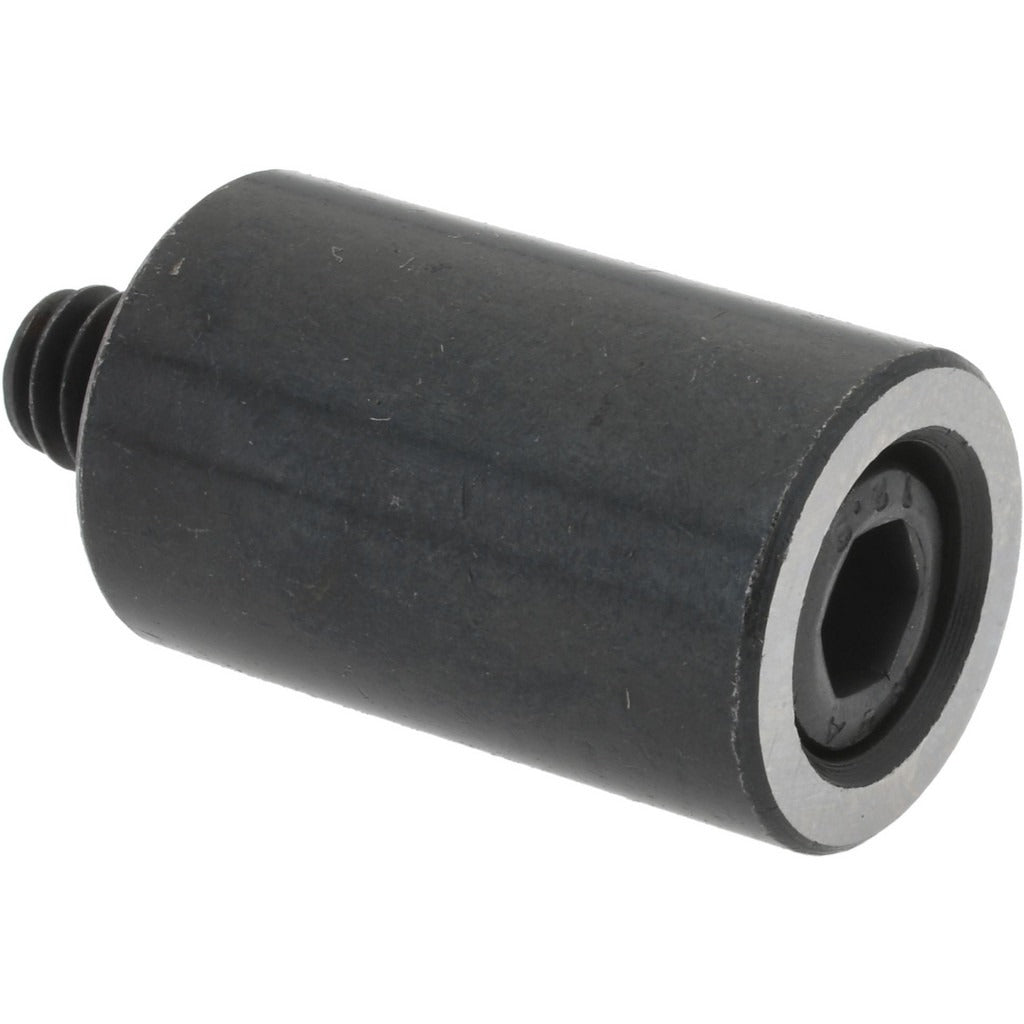

The GIBRALTAR 75283242 is a jig foot designed for use in workholding, fixturing, and precision positioning applications. It features a 1/4-20 threaded shank, a 5/8-inch outer diameter, and stands 1 inch high. Manufactured from low carbon steel with a black oxide finish, this jig foot provides a durable, corrosion-resistant contact point for jigs and fixtures. A cap screw is included. Machinists, toolmakers, and fixture builders rely on this type of component to establish repeatable, stable reference points on production jigs and assembly fixtures.

This jig foot suits light-duty industrial and metalworking fixture applications where a compact, threaded foot is needed to support or position a workpiece. It threads directly into a tapped hole in a fixture plate or base, allowing height adjustment and secure locking. The black oxide finish reduces light glare on the shop floor and provides modest surface protection in typical indoor shop environments.

Key Features

• 1/4-20 threaded shank for direct installation into standard tapped fixture holes
• 5/8-inch outer diameter provides a stable, compact footprint
• 1-inch overall height suits low-profile fixturing setups
• Low carbon steel construction for reliable strength in workholding use
• Black oxide finish reduces glare and adds surface protection
• Includes cap screw for secure positioning and locking

Compatibility

Designed as a standard 1/4-20 threaded jig foot suitable for use in metalworking and industrial fixture applications where a compact, low-profile adjustable foot is required.

Installation Notes

Installation is performed by machinists or toolmakers during fixture assembly or setup. Thread the jig foot into a 1/4-20 tapped hole in the fixture body and adjust to the desired height before tightening the included cap screw to lock position. Ensure the mating tapped hole is clean and free of chips or debris before installation. Always verify that the foot is fully engaged and locked before placing workpiece load on the fixture.
