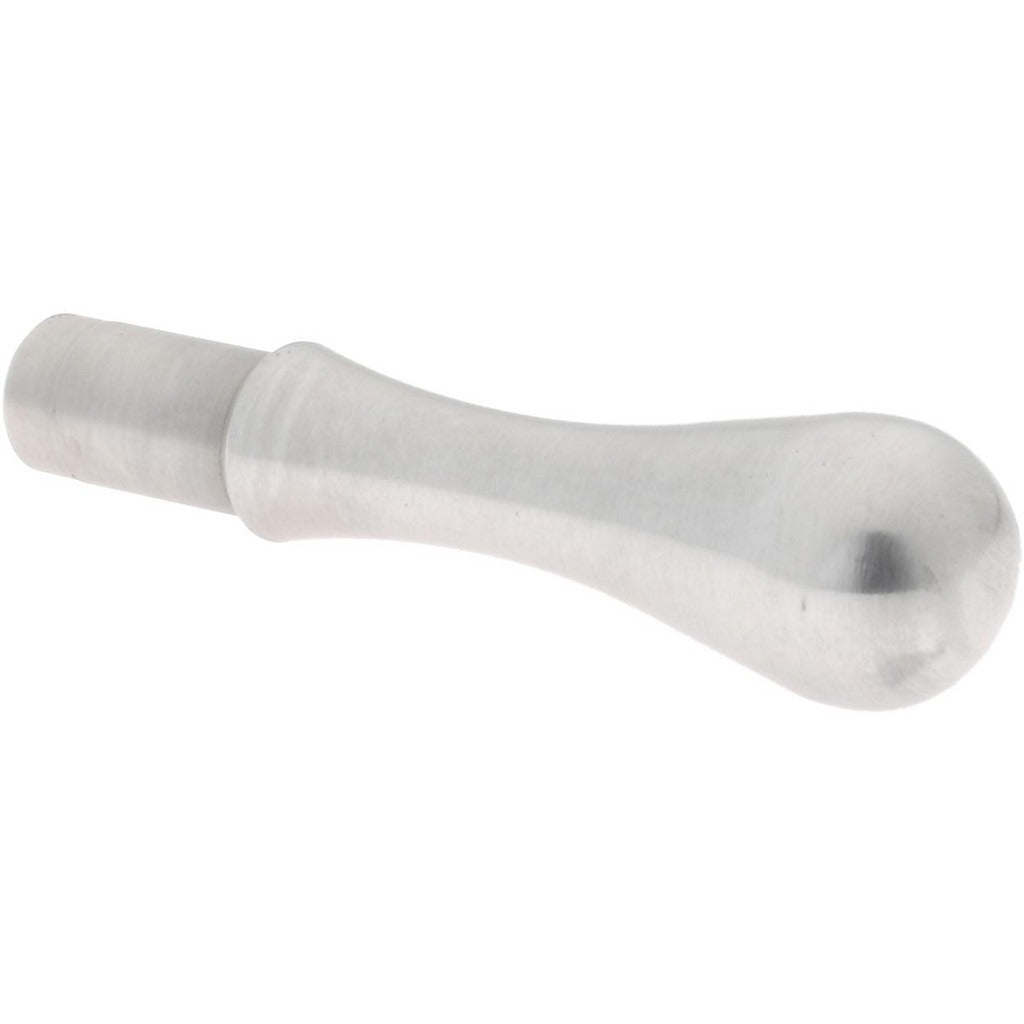

Gibraltar 645205-G Fixed Handwheel Machine Handle

Product Description

The GIBRALTAR 645205-G is a fixed handwheel machine handle designed for use with press fit stem mounting. Built with a carbon steel bulb-shaped handle body and a carbon steel stem, this component provides a reliable manual grip point for machine tool adjustments, jigs, fixtures, and industrial equipment. The stem measures 7/16 inches in length, and the handle has an overall length of 1-23/32 inches (approximately 1.75 inches). Licensed machinists, maintenance technicians, and tool-and-die professionals typically install this type of handle on precision equipment requiring repeated manual positioning.

This handle is suited for industrial and commercial machine tool applications where a compact, fixed-position grip is needed. The press fit stem mount allows for straightforward installation into a prepared bore without threading. Typical applications include manual feed mechanisms, clamping fixtures, and adjustment knobs on milling machines, lathes, drill presses, and similar equipment. Its bulb shape provides adequate grip surface in confined spaces where larger handles are impractical.

Key Features

• Bulb-shaped carbon steel handle body for a secure manual grip
• Press fit stem mount for tool-free installation into a matching bore
• Carbon steel stem, 7/16 inches in length
• Overall length of approximately 1.75 inches suits compact machine applications
• Fixed handwheel design — no folding or adjustable components

Compatibility

Designed as an OEM-style replacement or direct-fit handle for industrial machine tools and fixtures requiring a press fit stem mounting configuration with a bulb-shaped grip.

Installation Notes

Installation is performed by qualified maintenance technicians or machinists. Before installing, power down and lock out the machine per OSHA lockout/tagout procedures. The press fit stem should be pressed into a clean, properly sized bore using an arbor press or similar controlled-force tool — do not drive with a hammer, as this may damage the stem or bore alignment. Confirm bore diameter matches the stem before pressing to avoid loosening or interference fit failure.
