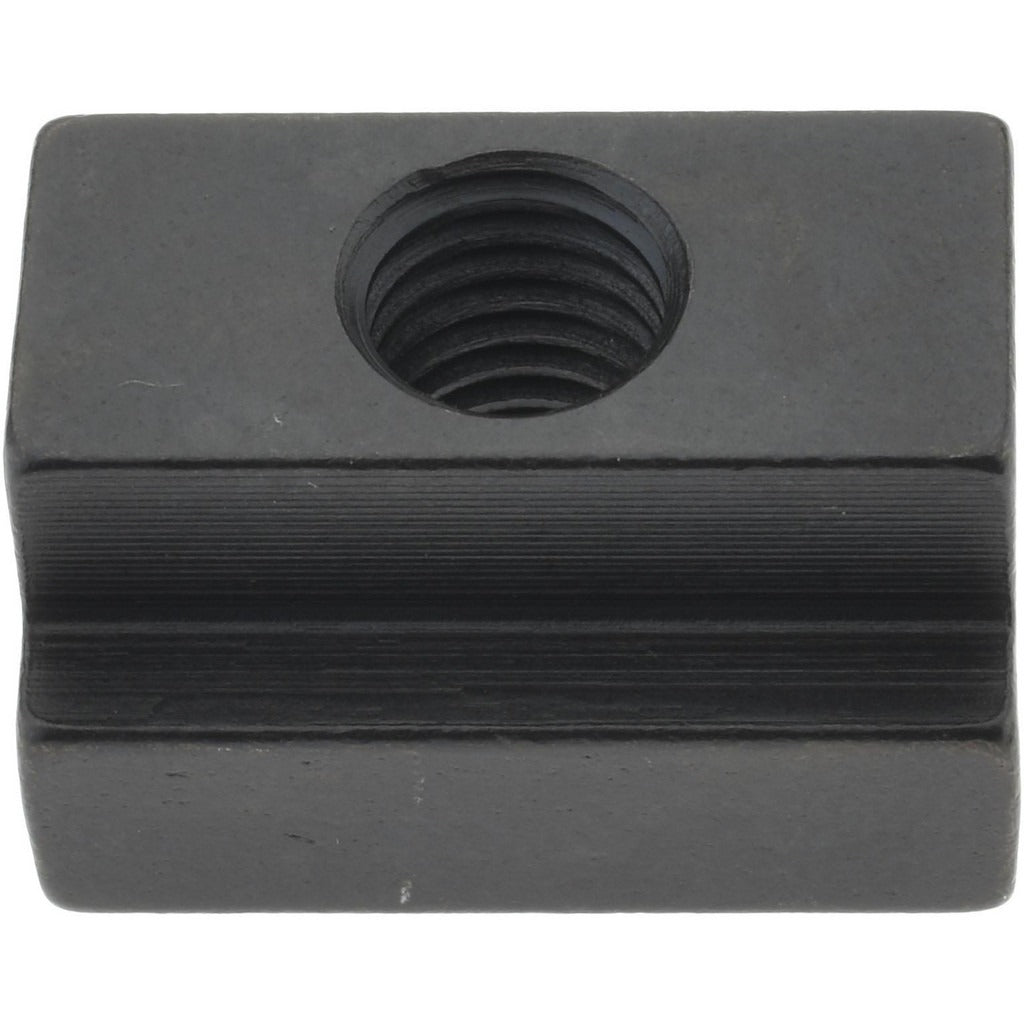

Gibraltar 61405TG M10x1.50 Tapped Through T-slot Nut

Product Description

The GIBRALTAR 61405TG is a metric tapped through T-slot nut machined from 1018 steel with a black oxide finish. It threads onto M10 x 1.50 right-hand threaded fasteners and slides into standard T-slot tracks on machine tables, fixtures, and workholding setups. The through-tap design allows a bolt to pass completely through the nut body, providing full thread engagement. Base dimensions are 22 mm wide by 9 mm tall. Overall length is 29 mm with an overall height of 16 mm. The black oxide coating provides mild corrosion resistance and a consistent, low-reflectance appearance. This nut weighs 0.25 pounds and is sold individually.

T-slot nuts of this type are used in machine shop and industrial fixture applications where components must be securely clamped to slotted tables on milling machines, drill presses, surface grinders, and similar equipment. The 14 mm nominal slot size compatibility makes it suitable for common metric T-slot table configurations. Machinists, toolmakers, and fixture builders install these as part of workholding setups requiring repeatable, adjustable clamping positions.

Key Features

• Through-tapped M10 x 1.50 right-hand thread for full bolt engagement
• Fits 14 mm nominal T-slot table tracks with 14.29 mm slot width clearance
• 1018 steel construction for reliable strength in workholding applications
• Black oxide finish for mild corrosion resistance and low-reflectance surface
• Compact base profile: 22 mm wide by 9 mm tall for secure slot seating
• Metric dimensions throughout — compatible with metric T-slot fixturing systems

Compatibility

Designed for use in 14 mm nominal metric T-slot tracks as found on standard metric machine tables and fixturing systems. Slot width clearance is 14.29 mm.

Installation Notes

Installation is performed by machinists or toolmakers as part of workholding and fixture assembly. Slide the nut into the T-slot before positioning the clamping component, then thread the bolt down from above. Ensure the machine table or fixture is de-energized and the machine is locked out before working near any spindle or moving element. Do not overtighten beyond the capacity of the 1018 steel body; consult your fixturing system documentation for recommended clamp torque ranges.
