Gibraltar 61402TG M6x1.00 Tapped Through T-slot Nut

Product Description

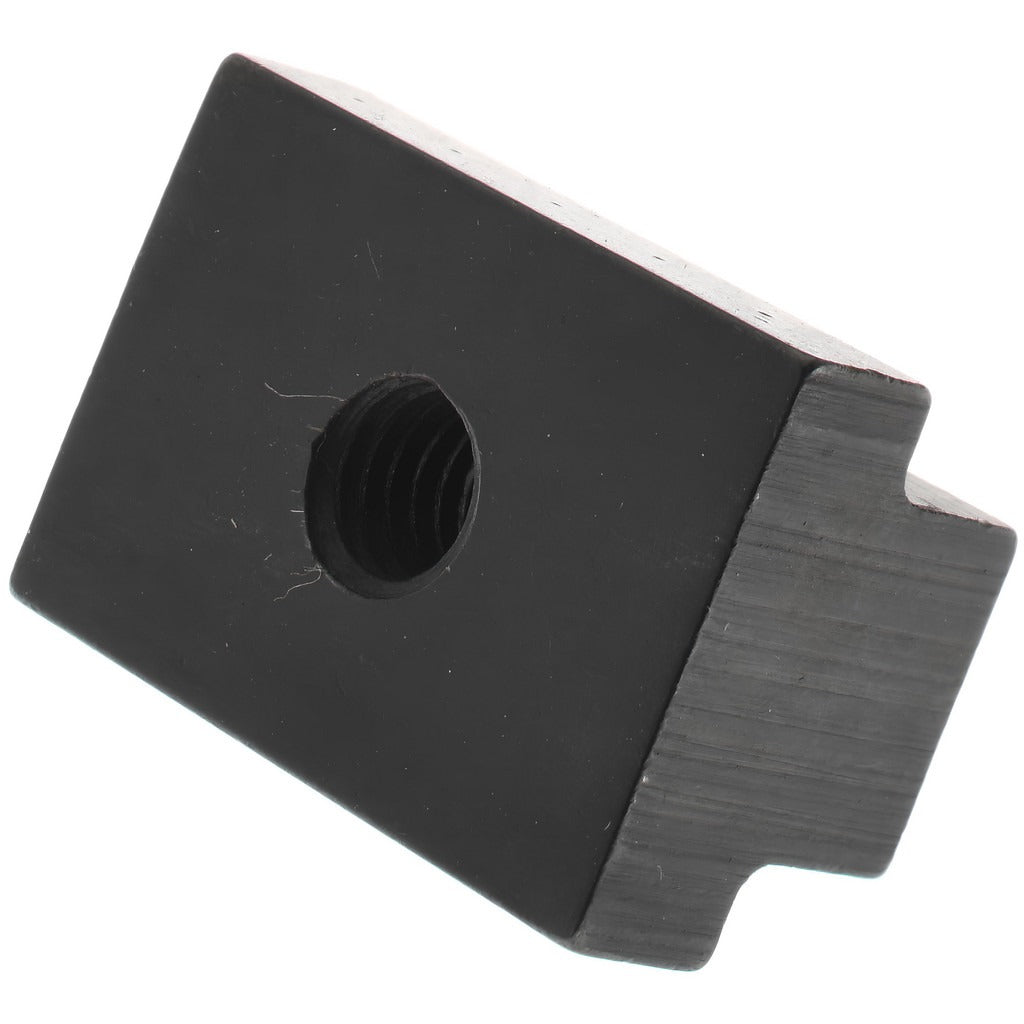

The GIBRALTAR 61402TG is a metric tapped through T-slot nut designed for use with T-slot workholding tables, fixture plates, and machine tool setups. Manufactured from 1018 steel with a black oxide finish, this nut slides into a T-slot track and accepts an M6x1.00 right-hand threaded fastener to secure workholding fixtures, clamps, or tooling components. The through-tapped design allows a bolt to pass completely through the nut body, offering flexibility in clamping depth. With an overall length of 22mm and an overall height of 11mm, the 61402TG fits standard 10mm table slots and provides a base width of 16mm and a base height of 6mm.

This T-slot nut is suited for use on milling machine tables, CNC fixture plates, welding tables, and other slotted workholding surfaces that use a 10mm T-slot. It is appropriate for light to medium fixturing applications in machine shops, fabrication shops, and tool rooms. The metric M6x1.00 thread size makes it compatible with standard metric clamping hardware commonly used in metric-dimensioned workholding systems. The black oxide finish provides mild corrosion resistance for typical shop environments.

Key Features

• Through-tapped design accepts M6x1.00 right-hand thread fasteners
• Fits 10mm T-slot table tracks
• 1018 steel construction for reliable strength in fixturing applications
• Black oxide finish for mild corrosion resistance
• Base dimensions of 16mm wide by 6mm tall for stable seating in the slot
• Overall length of 22mm and overall height of 11mm

Compatibility

Designed for use in T-slot workholding systems with a 10mm slot width, compatible with standard metric M6x1.00 clamping studs and bolts used on milling tables, fixture plates, and slotted workholding surfaces.

Installation Notes

Installation is typically performed by machinists or toolroom technicians. Slide the nut into the T-slot from the end of the track or through an access opening before positioning and threading in the clamping fastener. Ensure the slot width matches the 10mm specification before installation to avoid binding or improper seating. Do not overtighten the mating fastener beyond the rating of the M6 thread to prevent stripping the nut body.
