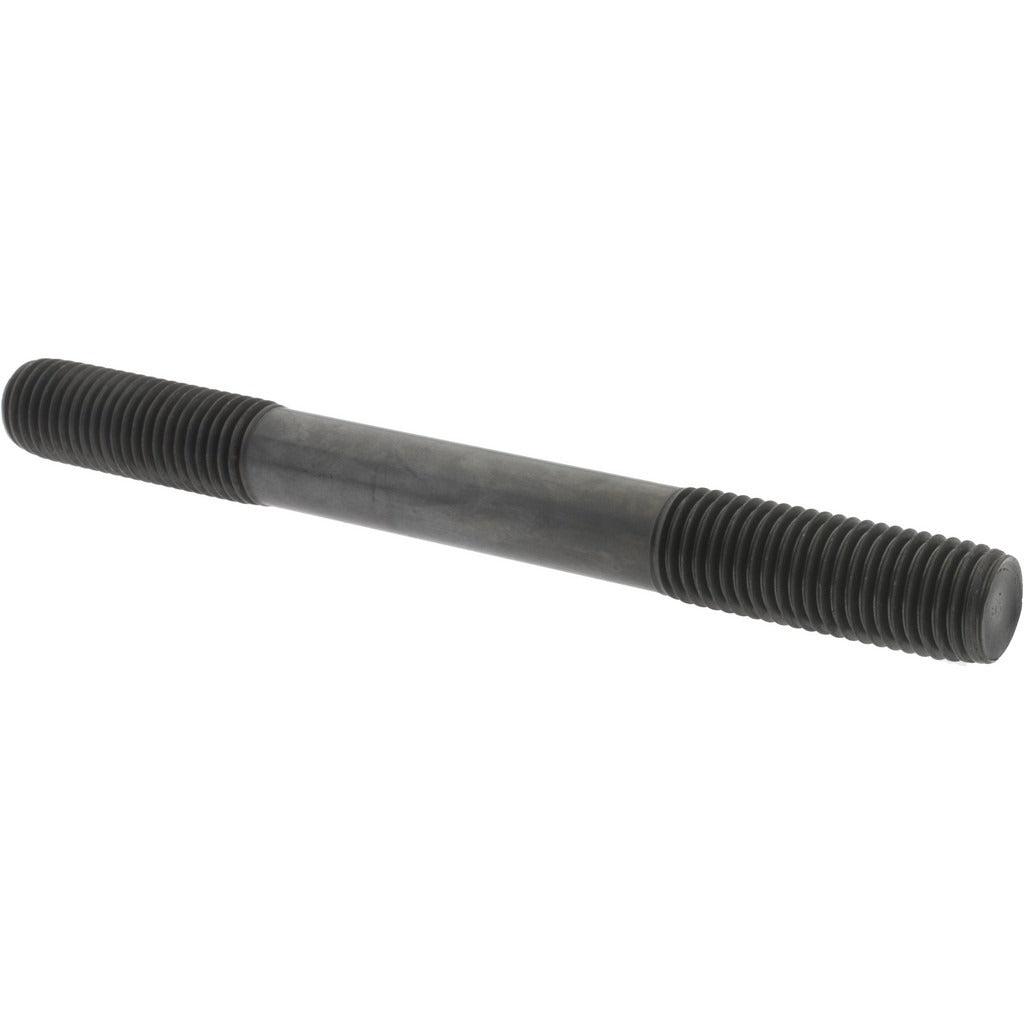

Gibraltar 60713G Double Threaded Stud M20x2.5 200mm Alloy Steel

Product Description

The GIBRALTAR 60713G is an equal double threaded stud designed for applications requiring a strong, corrosion-resistant fastener with continuous engagement on both ends. Manufactured from alloy steel with a black oxide finish, this stud delivers a Thread Fit Class 50 connection at M20 x 2.5 thread size. The overall length measures approximately 7.87 inches (200 mm). The black oxide finish provides moderate corrosion resistance and reduces light reflection. This stud is typically installed by millwrights, maintenance mechanics, pipefitters, and industrial technicians working on machinery assemblies and structural connections.

The 60713G suits industrial and commercial applications where equal thread engagement on both ends is required — such as flanged connections, machinery mounting, and structural fastening. The M20 x 2.5 thread pitch is a standard coarse metric thread commonly found in heavy equipment, pump housings, motor mounts, and industrial fabrication. Material Grade 5 alloy steel construction makes it appropriate for moderate- to high-load fastening scenarios in manufacturing and maintenance environments.

Key Features

• Equal double threaded design for symmetrical engagement on both ends
• M20 x 2.5 coarse metric thread — standard pitch for heavy industrial fasteners
• Alloy steel construction with Material Grade 5 for moderate- to high-load applications
• Black oxide finish for corrosion resistance and reduced surface reflectivity
• Thread Fit Class 50 for consistent, reliable thread engagement
• Overall length of 200 mm (approximately 7.87 inches)

Compatibility

Designed as an OEM-style or replacement double threaded stud for industrial machinery, pump assemblies, motor mounts, and structural fastening applications requiring M20 x 2.5 metric thread engagement.

Installation Notes

Installation is typically performed by licensed millwrights, industrial mechanics, or maintenance technicians. De-energize and lock out all equipment per OSHA LOTO procedures before installing or removing threaded studs in powered assemblies. Use calibrated torque tools appropriate to the fastener grade and joint specification — consult the equipment manufacturer's torque table before final tightening. Apply thread lubricant or anti-seize compound only if specified by the assembly drawing, as improper lubrication can alter clamp load.
