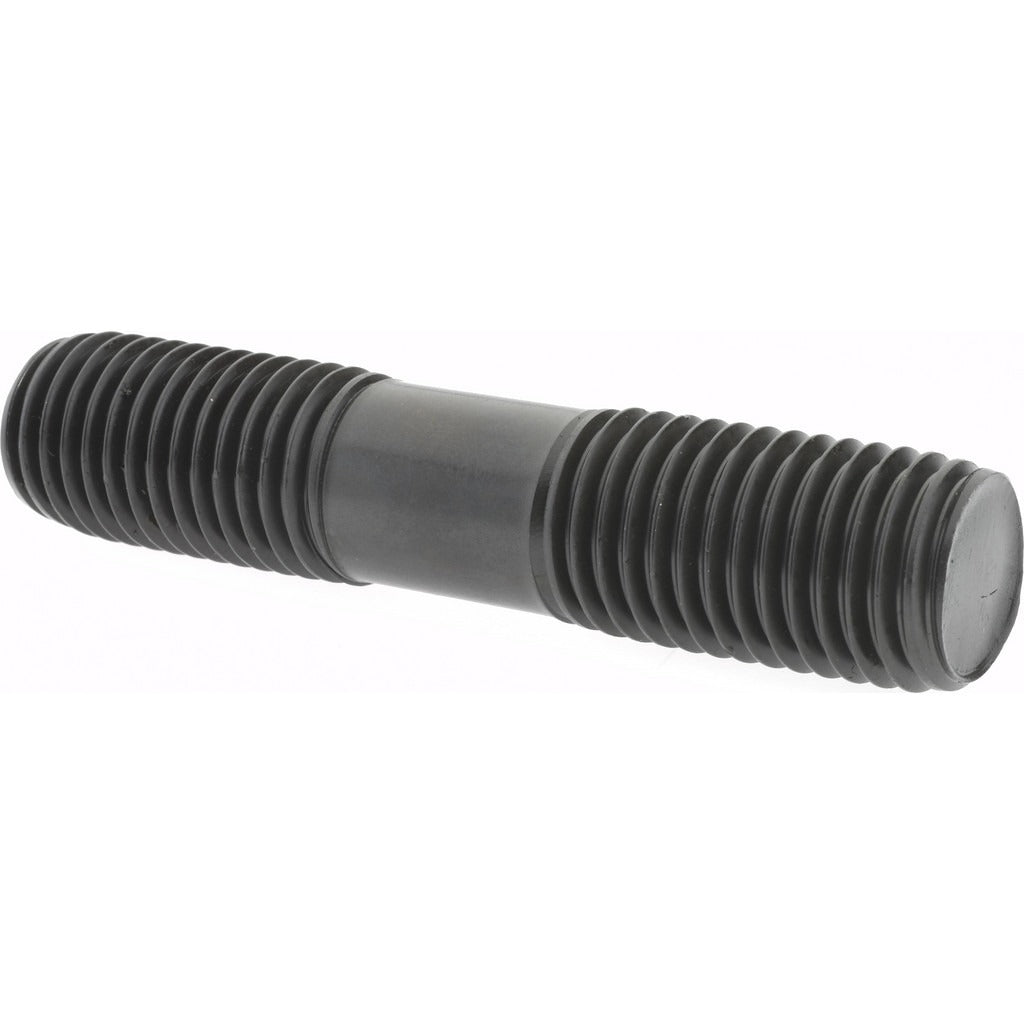

Gibraltar 60704G Double Threaded Stud M20x2.5 95mm Alloy Steel

Product Description

The GIBRALTAR 60704G is an equal double threaded stud with M20 x 2.5 thread sizing and an overall length of 95 mm (approximately 3.74 inches). Manufactured from alloy steel with a black oxide finish, this stud meets Material Grade 5 and Thread Fit Class 50 standards. It is designed for fastening applications where threaded engagement is required on both ends of the fastener, delivering consistent clamping force across both stud ends. The black oxide finish provides a degree of corrosion resistance in protected environments. Typical installers include millwrights, pipefitters, electricians, and mechanical contractors working on equipment mounting and structural assembly tasks.

This double threaded stud is suited for industrial, commercial, and trade applications where a fully threaded fastener must be anchored into a tapped hole on one end while accepting a nut or mating component on the other. Common install scenarios include equipment base mounting, HVAC mechanical frame assembly, and general mechanical fastening where a standard bolt cannot be used due to access or design constraints. Sold individually, this stud ships as a single-piece unit.

Key Features

• Equal double threaded design provides full thread engagement on both ends
• M20 x 2.5 thread size with Thread Fit Class 50 for consistent thread tolerance
• Alloy steel construction at Material Grade 5 for reliable load-bearing capacity
• Black oxide finish for mild corrosion resistance in protected environments
• 95 mm overall length (approximately 3.74 inches) suits medium-depth fastening applications
• Sold as a single unit with no minimum order beyond one piece

Compatibility

Designed as a standard M20 x 2.5 equal double threaded stud for use in any application requiring this thread size and pitch. Consult equipment service documentation to confirm thread engagement depth and stud projection requirements before installation.

Installation Notes

Installation is typically performed by a qualified mechanic, millwright, or licensed trade professional using appropriate thread-engagement tools. Ensure the mating tapped hole is clean and free of debris before driving the stud. De-energize and lock out all relevant systems before performing any fastener work on live mechanical or electrical assemblies. Follow applicable mechanical and structural codes for torque requirements specific to the equipment being serviced, as no torque value is specified for this stud.
