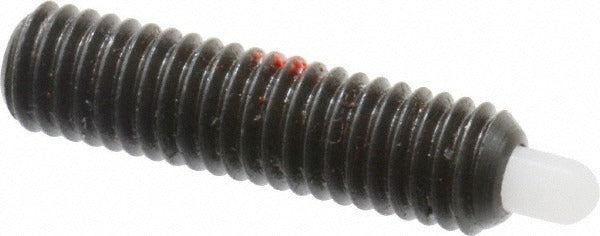

Gibraltar 57187G Threaded Spring Plunger 10-32 3/4in Steel

Product Description

The GIBRALTAR 57187G is a standard threaded spring plunger designed for indexing, positioning, and light-duty locking applications in mechanical assemblies. The body is machined from steel with a black finish and accepts a 10-32 threaded installation. The plunger nose is made from Delrin, providing low-friction contact against mating surfaces. A built-in locking element secures the plunger in the bore once installed, preventing rotation or backing out under vibration. Initial end force is 1.30 pounds, rising to a final end force of 2.70 pounds at full compression. Thread length and body length are both 3/4 inches, with a plunger projection of 1/8 inches.

This spring plunger is suited for use in jigs, fixtures, tooling plates, and precision mechanical assemblies where repeatable detent action or light part retention is required. It is installed into a pre-tapped 10-32 threaded hole using a 1/16-inch hex key. The Delrin nose makes it appropriate for use against finished, coated, or soft metal surfaces where steel-on-steel contact would cause marking or galling. Applications span machine shop tooling, assembly fixtures, and general industrial equipment maintenance.

Key Features

• 10-32 thread size with 3/4-inch thread and body length for standard tapped-hole installation
• Delrin nose minimizes surface marking on finished or soft mating materials
• Steel body with black finish for corrosion resistance and durability
• Locking element prevents rotation or backing out under vibration
• 1.30 lb initial end force and 2.70 lb final end force for light detent and positioning duty
• Installed and adjusted with a 1/16-inch hex key — no special tooling required

Compatibility

Designed as an OEM-style replacement or direct-install spring plunger for any application requiring a standard 10-32 threaded spring plunger with a locking element and 3/4-inch thread length.

Installation Notes

Installation is performed by a machinist or maintenance technician into a clean, pre-tapped 10-32 threaded bore. Use a 1/16-inch hex key to thread the plunger in and set the locking element. Ensure the mating bore is free of chips, burrs, or debris before installation. De-energize or lock out any machine before servicing components in moving or pressurized assemblies.
