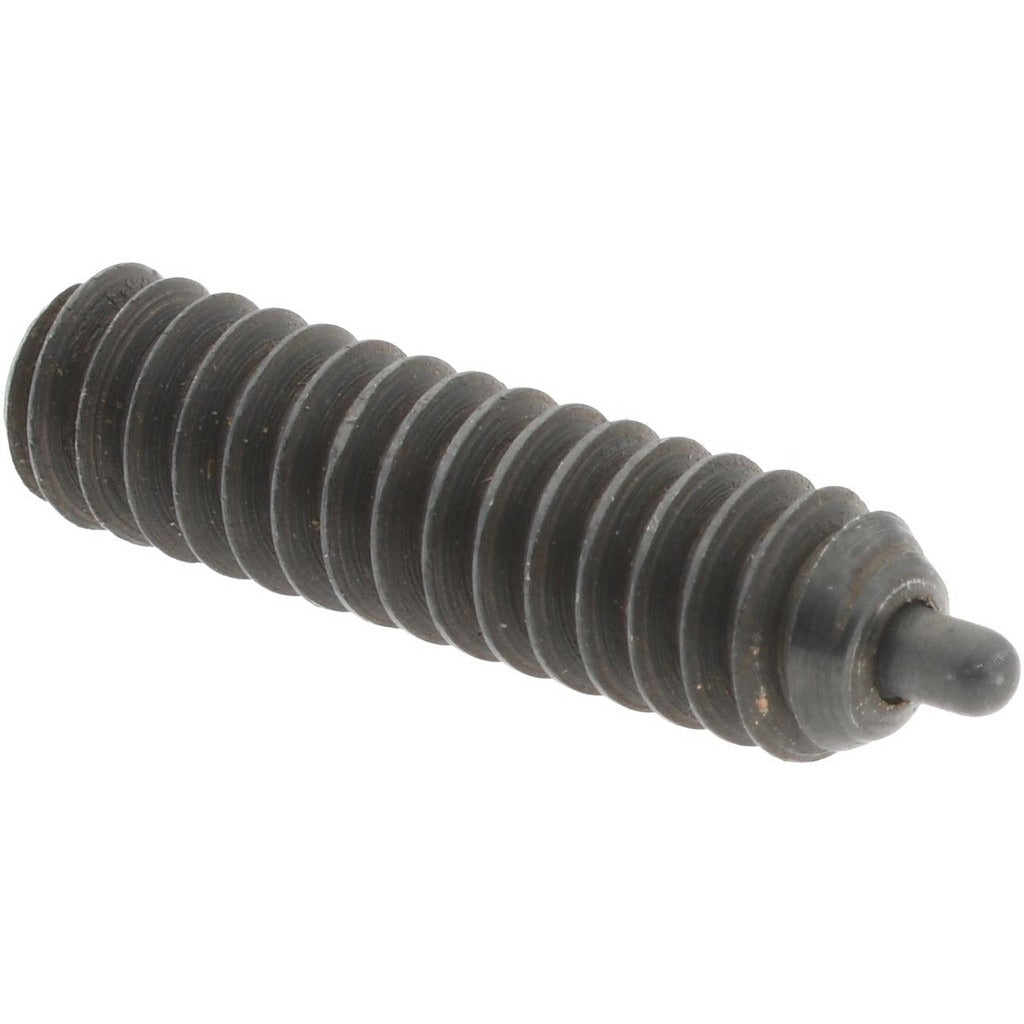

Gibraltar 57001XG Threaded Spring Plunger 6-32 Steel

Product Description

The GIBRALTAR 57001XG is a threaded spring plunger designed for indexing, positioning, and light-duty locking applications in mechanical assemblies. With a 6-32 thread size and 17/32 inch thread length, this plunger installs directly into a tapped hole without additional hardware. The steel body and steel nose deliver consistent performance under repeated cycling. An initial end force of 1.5 pounds and a final end force of 4.5 pounds make it suitable for low-force detent and positioning tasks. The black finish provides a degree of corrosion resistance for general shop and industrial environments. Machinists, toolmakers, and mechanical assembly technicians are the typical installers.

The 57001XG is used in jigs, fixtures, dies, and general mechanical assemblies where a spring-loaded plunger is needed to hold or index a component in position. The compact 17/32 inch body length fits tightly spaced assemblies. The 0.045 inch maximum plunger diameter and 1/16 inch projection keep the plunger profile minimal, making this part well suited for fine-pitch positioning work where clearance is limited. It is sold individually and carries a minimum order quantity of one unit.

Key Features

• 6-32 thread for direct installation into standard tapped holes
• 1.5 pound initial end force and 4.5 pound final end force for light-duty detent applications
• Steel body and steel nose construction for durability under repeated cycling
• 17/32 inch thread length and body length for compact assembly fitment
• 1/16 inch plunger projection keeps interference minimal in tight clearance designs
• Black finish for general corrosion resistance in shop environments

Compatibility

Designed as a standard threaded spring plunger for use in tapped 6-32 holes in jigs, fixtures, dies, and mechanical assemblies requiring light-force indexing or positioning.

Installation Notes

Installation requires a tapped 6-32 hole of sufficient depth to accept the 17/32 inch thread length. Use a hex wrench sized to the 1/16 inch hex to drive and seat the plunger body; avoid over-torquing, which can distort the thread or damage the plunger mechanism. Ensure the mating bore or detent feature is aligned with the plunger projection axis before final tightening. De-energize or immobilize any powered equipment before servicing assemblies that contain spring plungers.
