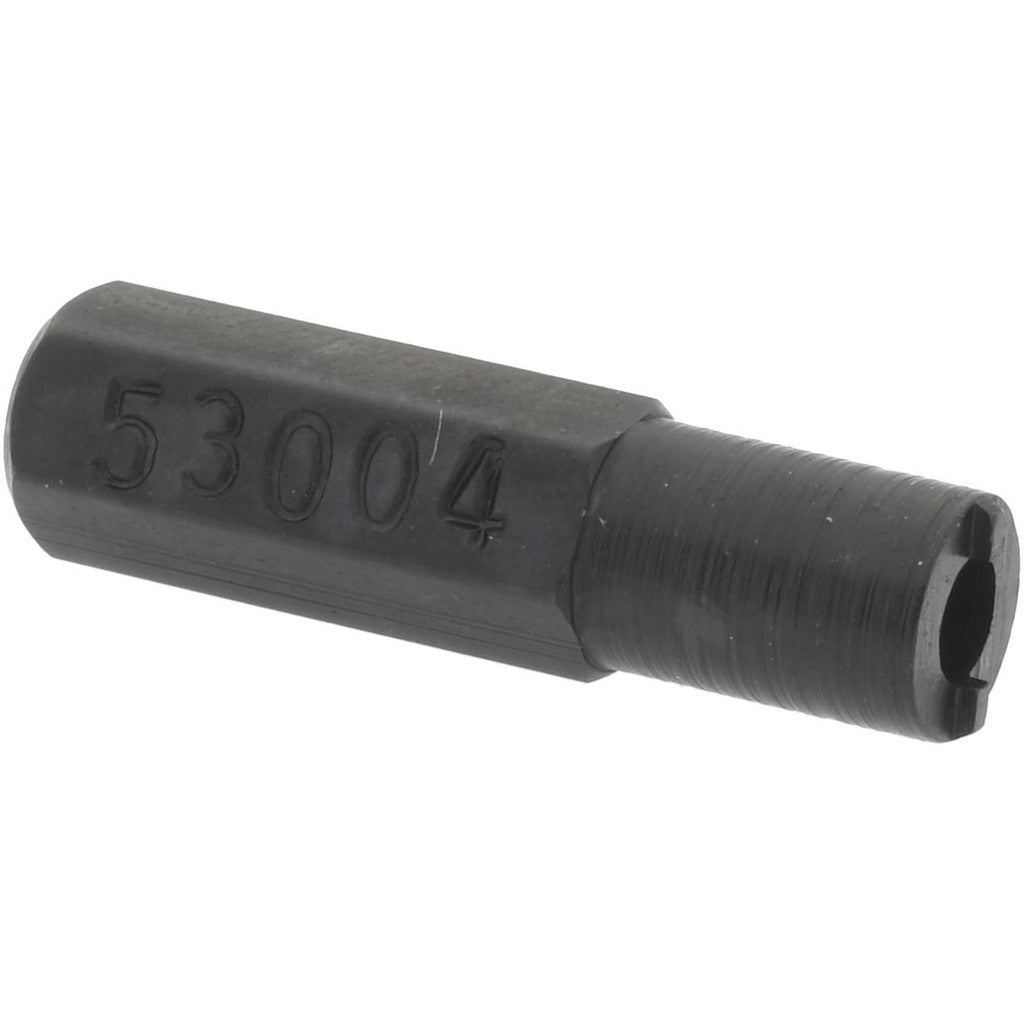

Gibraltar 53004G Plunger Wrench 1/4-20 1/4-28 Thread

Product Description

The GIBRALTAR 53004G is a dual-thread plunger wrench designed for installing and removing spring, ball, and stubby plungers in threaded assemblies. This tool engages both 1/4-20 (UNC) and 1/4-28 (UNF) thread forms, covering the two most common plunger thread standards in a single hand tool. Weighing 0.3 pounds, it is compact enough for confined workspaces and repetitive production use. Machinists, maintenance technicians, and assembly line workers use it to seat or extract plungers without damaging the plunger head or surrounding threads. It eliminates the need for improvised tools that can strip or misalign plunger hardware.

This wrench is suited for use in mechanical assemblies where spring, ball, or stubby plungers are used as detents, indexing pins, or positioning devices. Typical applications include machine tool fixtures, jig and fixture plates, industrial equipment panels, and enclosure hardware. The dual-thread configuration reduces the need to stock separate wrenches for UNC and UNF plunger types, making it practical in shops and facilities that work across both thread standards.

Key Features

• Fits 1/4-20 (UNC) and 1/4-28 (UNF) threaded plungers in a single tool
• Compatible with spring, ball, and stubby plunger styles
• Compact and lightweight at 0.3 pounds for ease of use in tight spaces
• Reduces tooling inventory by covering two common thread standards
• Sold individually as a single-piece unit

Compatibility

Compatible with spring, ball, and stubby plungers threaded to 1/4-20 (UNC) or 1/4-28 (UNF) specifications. Designed as an OEM-style installation and removal tool for standard plunger hardware used in industrial and mechanical assembly applications.

Installation Notes

This tool is used by machinists and maintenance technicians working on mechanical assemblies. Before servicing plunger hardware, confirm the assembly is de-energized or depressurized as applicable to the equipment. Use the correct thread end of the wrench to match the plunger thread form before applying torque to avoid cross-threading. Follow the equipment manufacturer's torque recommendations for the specific plunger being installed.
