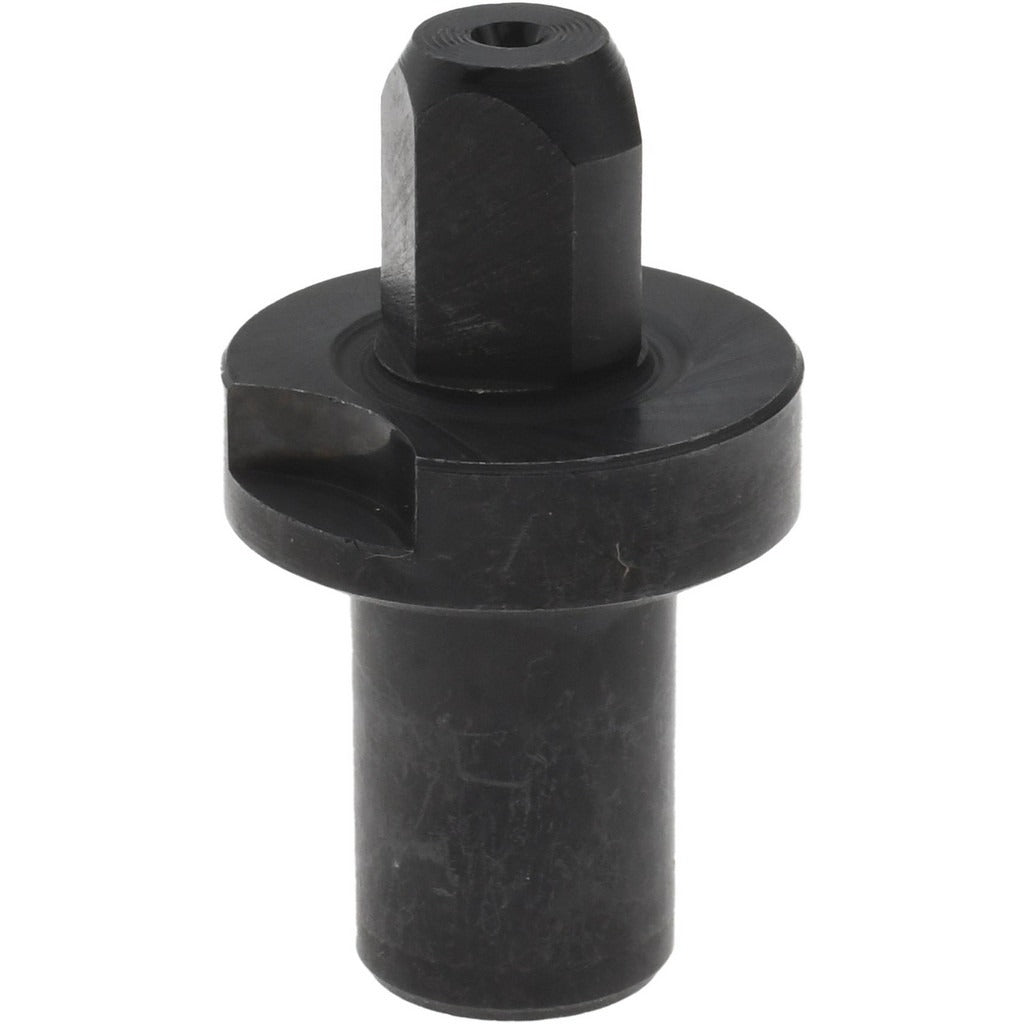

Gibraltar 49317G Slip Fit Diamond Locating Pin

Product Description

The GIBRALTAR 49317G is a slip fit diamond straight locating pin used in workholding and fixture applications. It features a relieved diamond-shaped nose that allows precise part location while accommodating slight misalignment between holes. With a nose diameter of 0.3584 inches, a nose length of 0.5 inches, and an overall length of 1.5 inches, this pin is sized for tooling plates, jigs, and fixtures where repeatable part positioning is required. Machined from low-carbon steel, it provides adequate hardness and wear resistance for moderate-duty production environments. Installation is straightforward with a slip fit engagement and a 0.875 inch collar diameter that seats against the fixture plate.

This locating pin is suited for use in machining fixtures, welding jigs, assembly tooling, and inspection fixtures across general manufacturing and fabrication environments. The diamond profile is the standard choice when a second locating pin is needed alongside a round pin, preventing over-constraint while still controlling rotation. Toolmakers, fixture builders, and CNC setup technicians are the primary installers. It is sold and packaged individually.

Key Features

• Diamond-shaped slip fit nose controls rotation without over-constraining the workpiece
• Relieved body reduces contact length and eases part loading and unloading
• 0.3584 inch nose diameter with 0 inch tolerance for accurate hole engagement
• 0.5 inch nose length and 1.5 inch overall length suit standard fixture plate thicknesses
• Low-carbon steel construction balances machinability with functional durability
• 1/8 inch chamfer length on nose aids part entry and reduces wear on mating holes

Compatibility

Designed as an OEM-style replacement or direct-use locating pin for standard workholding fixtures, jigs, and tooling plates that accept a 0.3584 inch nose diameter slip fit locating pin.

Installation Notes

Installation is performed by toolmakers or fixture technicians as part of fixture assembly or maintenance. Press or hand-seat the pin into the fixture plate bore, ensuring the collar seats flush against the plate surface. Verify fit and function before placing the fixture into production use. Always inspect mating holes for wear or damage before installing a replacement pin.
