Gibraltar 49106G Slip Fit Round Straight Locating Pin

Product Description

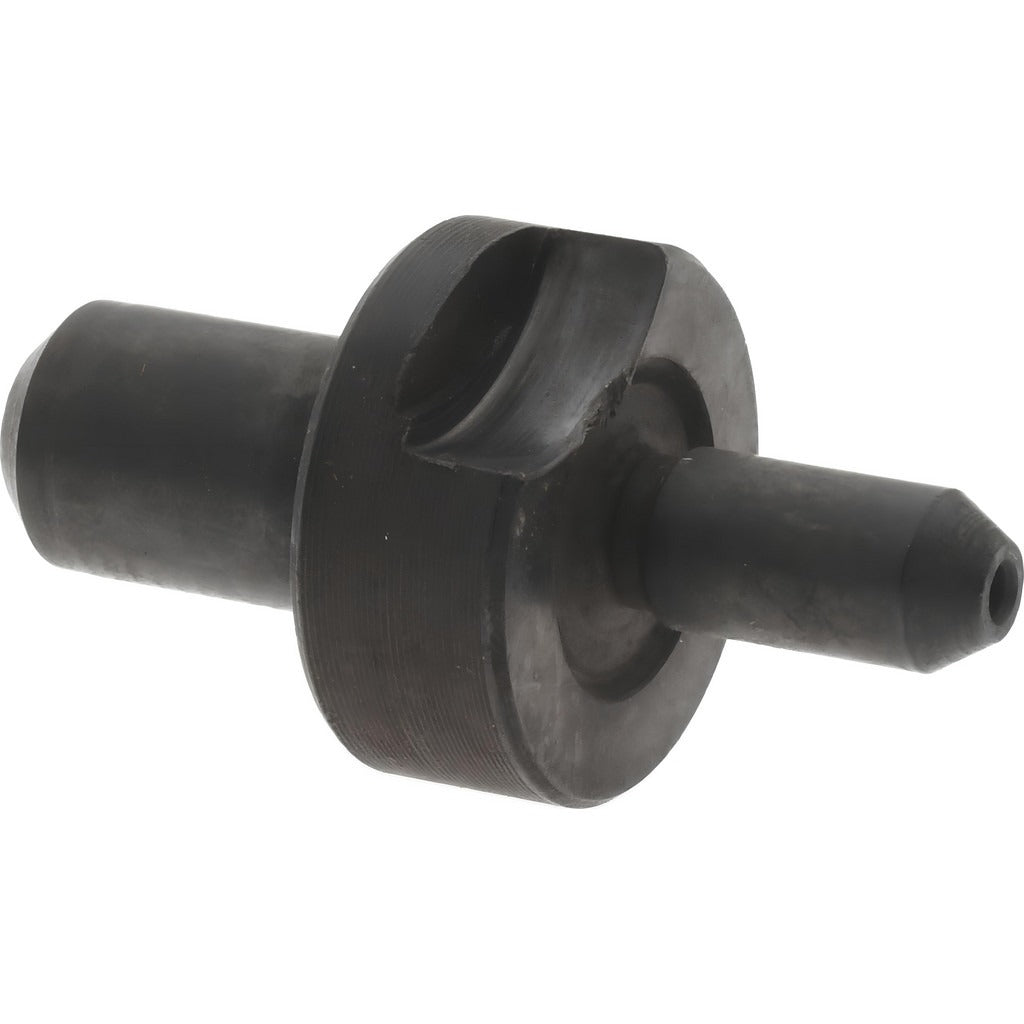

The GIBRALTAR 49106G is a slip fit round straight locating pin used to accurately position and hold workpieces during machining, assembly, and fixturing operations. Manufactured from low carbon steel, it provides consistent dimensional stability under repeated use. The pin features a 0.2026-inch nose diameter and a 7/16-inch nose length, with a 5/8-inch collar diameter that seats against the fixture plate. Overall length is 1-3/16 inches, and the tail diameter measures 5/16 inches. A 1/16-inch chamfer length eases entry. Tolerance is held at 0.0000 inches. Machinists, toolmakers, and fixture builders rely on this type of pin to maintain part location repeatability across production runs.

This locating pin is suited for use in drill jigs, machining fixtures, assembly fixtures, and inspection setups where precise part placement is required. It is appropriate for light-duty to moderate-duty applications in manufacturing and metalworking environments. The slip fit design allows easy insertion and removal without staking or pressing, making it practical for setups that require frequent changeover.

Key Features

• Slip fit nose design for easy insertion and removal during fixture changeover
• Low carbon steel construction for consistent dimensional stability
• 0.2026-inch nose diameter with 0.0000-inch tolerance for repeatable part location
• 5/8-inch collar diameter seats flush against fixture plate surface
• 1/16-inch chamfer length on nose eases workpiece entry
• Compact 1-3/16-inch overall length suits tight fixture layouts

Compatibility

Designed as an OEM-style replacement or direct-fit locating pin for standard slip fit round straight pin applications in machining and assembly fixtures.

Installation Notes

Locating pins of this type are installed by toolmakers and machinists working on fixture plates and jigs. Ensure the receiver hole is clean and free of chips or burrs before inserting the pin. No pressing or staking is required for slip fit installation; the collar shoulder controls seating depth. Inspect the pin and bore periodically for wear that could affect location accuracy.
