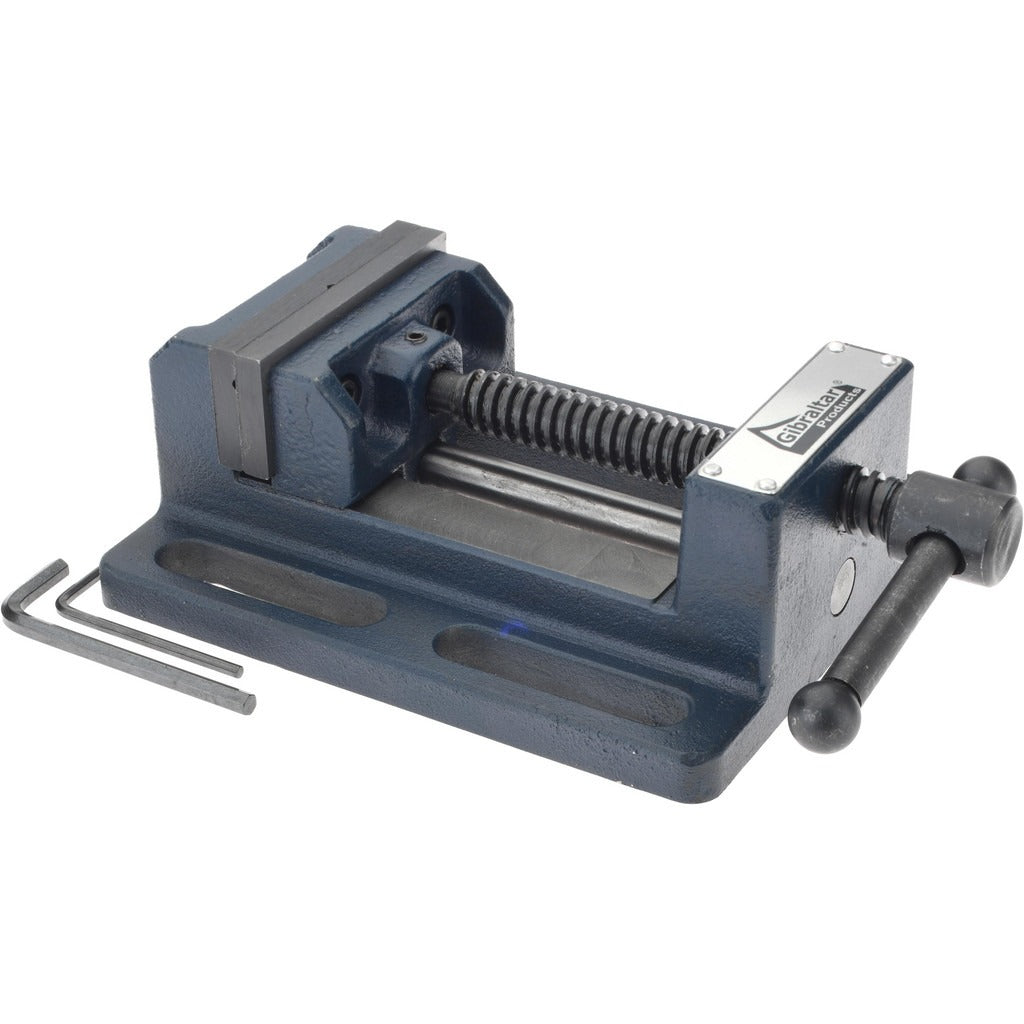

Gibraltar 428-84602 Horizontal Drill Press Vise Cast Iron

Product Description

The GIBRALTAR 428-84602 is a horizontal drill press vise designed for stationary benchtop drilling operations. Built from cast iron, it provides rigid workholding on drill press tables where precise, repeatable positioning is required. The vise features a 3-inch jaw opening capacity and a 1-1/8-inch throat depth, making it suited for securing small to medium workpieces during drilling. With an overall length of 6-9/16 inches and an overall height of 2-7/16 inches, the unit fits standard drill press tables without overhanging the table edge on most benchtop machines. Machinists, tool and die workers, and general shop professionals install this type of vise in production and maintenance environments.

This vise is intended for horizontal drilling applications on benchtop and floor-standing drill presses. The stationary base does not swivel or tilt, keeping the vise fixed in a single plane during operation. The 3-inch jaw width accommodates a range of flat, square, and rectangular stock. Standard spindle operation means no quick-release mechanism is present, which suits applications where controlled, deliberate clamping force is preferred over rapid changeover. It is appropriate for light industrial, maintenance, and trade shop use.

Key Features

• 3-inch jaw opening capacity handles small to medium workpieces
• 1-1/8-inch throat depth allows clearance for taller stock profiles
• Cast iron construction resists deflection under drilling load
• Stationary base keeps vise fixed during operation without rotation
• Compact footprint at 6-9/16 inches overall length and 2-7/16 inches overall height
• Standard spindle operation for controlled, deliberate clamping

Compatibility

Designed as an OEM-style replacement or direct-fit addition for standard benchtop and floor-standing drill press tables that accept horizontal vise mounting.

Installation Notes

Installation is performed by machinists or general shop technicians using standard T-slot hardware or clamp sets appropriate to the drill press table. Secure the vise firmly to the table before powering the machine to prevent movement under drilling load. Ensure the workpiece is fully clamped before initiating the spindle. Follow shop safety protocols and machine manufacturer guidelines when mounting any workholding device.
