Gibraltar 41430TG T-slot Nut 1-8 Thread 2 Inch Steel

Product Description

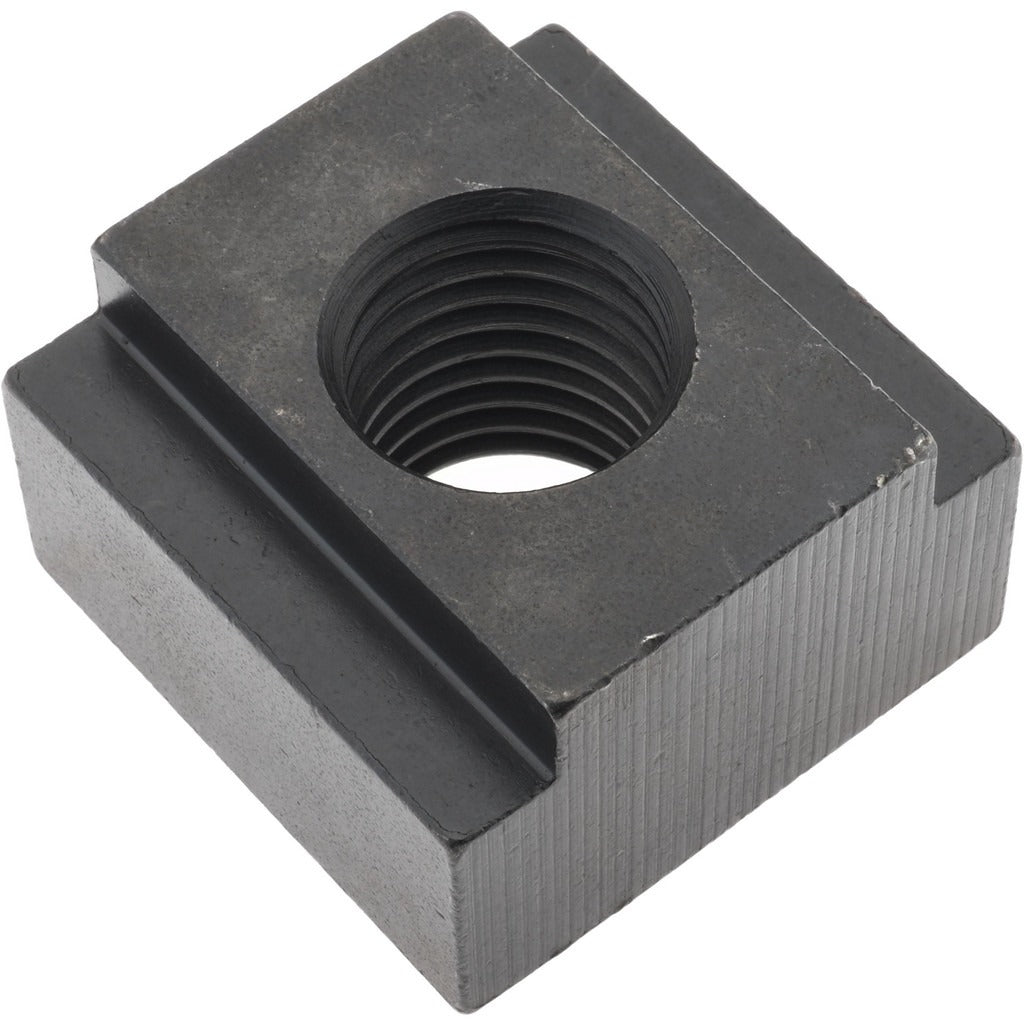

The GIBRALTAR 41430TG is a through-tapped T-slot nut machined from 1018 steel with a black oxide finish. It is designed to secure workpieces, fixtures, and tooling to T-slot tables on milling machines, drill presses, and other machining equipment. The nut features a 1-8 right-hand thread and fits a 1.3125-inch slot width. With a base width of 2 inches and an overall length of 2 inches, this nut provides a stable, low-profile clamping platform. Installation is handled by machine operators, setup technicians, and toolroom personnel who work with standard inch-measurement T-slot systems.

This nut is intended for use with T-slot tables that have a 34.00 mm slot size. Its through-tapped design allows a stud or bolt to pass completely through the nut, which suits applications where extended fastener engagement or flush-top clearance is required. The black oxide finish provides a measure of corrosion resistance for shop-floor environments. It is sold individually and is appropriate for both single-station setups and multi-fixture layouts on machining tables.

Key Features

• Through-tapped design allows full fastener pass-through for flexible clamping setups
• 1-8 right-hand thread for compatibility with standard inch-system studs and bolts
• 1018 steel construction delivers reliable strength for machining and fixturing loads
• Black oxide finish offers basic corrosion resistance in shop environments
• Fits 34.00 mm T-slot tables, a common size on milling and drill press beds
• Inch measurement system for direct use in standard inch-dimensioned setups

Compatibility

Designed for T-slot tables with a 34.00 mm slot width using inch-measurement fastening systems. Confirm your table slot dimensions before installation.

Installation Notes

Installation is performed by machinists or toolroom technicians during workholding setup. Power down and lock out any machine before inserting or removing T-slot hardware. Slide the nut into the T-slot from the open end of the table and position it before threading in the clamping stud. Do not exceed the rated clamping load for the stud and nut combination.
