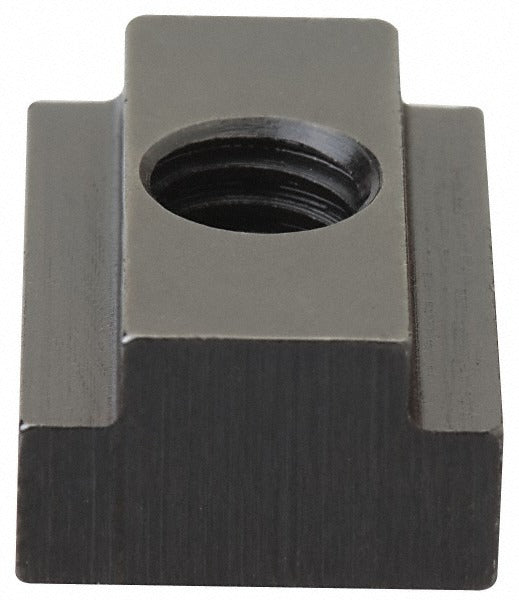

Gibraltar 41430G Blind Tapped T-slot Nut 1-8 Thread Steel

Product Description

The GIBRALTAR 41430G is a blind tapped T-slot nut designed for securing workpieces and fixtures to T-slot tables and machine bases. Threaded 1-8 (1-inch diameter, 8 threads per inch) with a right-hand thread direction, this nut slides into a T-slot track and accepts a standard bolt or stud from above without requiring access to the back side of the slot. It is machined from 1018 steel and finished with black oxide for corrosion resistance. The base measures 2 inches wide by 0.9375 inches tall, and the overall length is 2 inches with an overall height of 1.25 inches. Machinists, millwrights, and fixture builders are the primary installers.

This T-slot nut is suited for use with T-slot tables, milling machine tables, welding tables, and fabrication fixtures where a blind tapped connection is required. The 1.3125-inch slot width fits a 34 mm T-slot (34.00 mm for table slot size), making it compatible with a common metric-dimensioned T-slot found on many machining and fabrication tables. It is sold individually and is appropriate for both new fixture builds and replacement applications in maintenance and repair settings.

Key Features

• Blind tapped design eliminates the need for rear access during installation in T-slot tracks
• 1-8 right-hand thread accepts standard bolts and studs without modification
• 1018 steel construction provides reliable strength for fixturing and clamping applications
• Black oxide finish offers corrosion resistance in shop and industrial environments
• Fits 34.00 mm T-slot tables, accommodating common machining and fabrication table profiles
• Base width of 2 inches and slot width of 1.3125 inches provide stable seating in the slot

Compatibility

Designed for use with T-slot tables having a 34.00 mm (1.3125-inch) slot width. Verify slot width and thread requirements before installation.

Installation Notes

Installation is performed by machinists, millwrights, or fixture technicians. Slide the nut into the T-slot from an open end of the track, then position it under the desired clamping location before threading in the mating bolt or stud. Ensure the machine table is de-energized and the workpiece is clear before tightening fasteners. Follow applicable shop safety procedures and manufacturer torque guidance for the mating fastener.
