Gibraltar 33802G Manual Edge Clamp Steel Standard Grip

Product Description

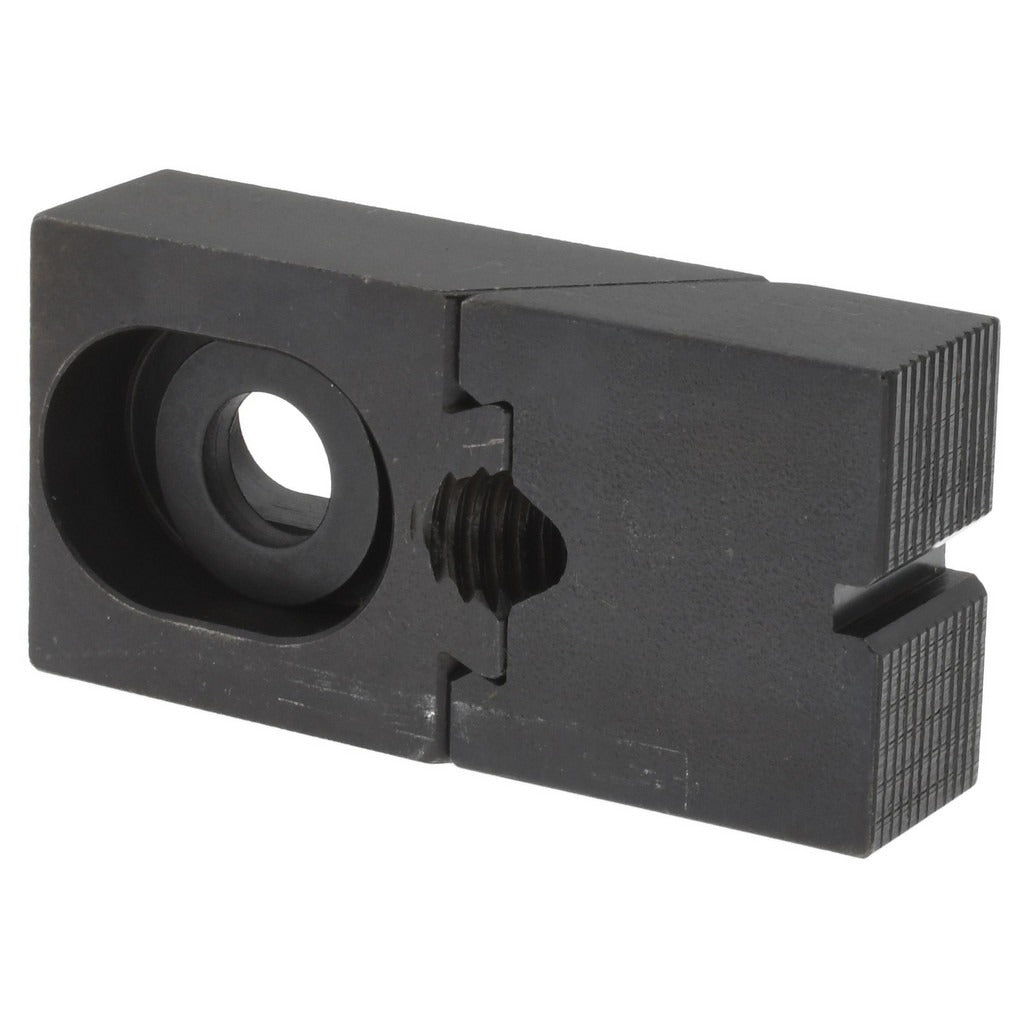

The GIBRALTAR 33802G is a manual edge clamp designed for workholding applications in machining, fabrication, and toolroom environments. Machined from 1018 steel with a black oxide coating, it provides corrosion resistance and a clean, low-reflectance finish suited to production settings. The clamp measures 2.3125 inches in overall length and 1.25 inches in overall width, with a 0.625-inch height and a 0.375-inch travel. A standard grip nose engages the workpiece edge securely. This clamp is a single-piece unit intended for use by machinists and toolmakers who require a compact, rigid edge-clamping solution at the workpiece perimeter.

The 33802G is used in manual milling, drilling, and fixturing setups where the workpiece edge must be clamped against a fixture plate or table. Its 0.375-inch socket cap screw slot accepts standard fasteners and integrates with common T-slot and plate-style fixture systems. The black oxide finish is appropriate for general shop use where moderate corrosion resistance is needed. This clamp suits low-profile clamping scenarios where a standard edge clamp style is specified on the setup sheet.

Key Features

• 1018 steel construction with black oxide coating for corrosion resistance
• Standard grip nose style for positive edge engagement
• 0.375-inch socket cap screw slot for secure fastener seating
• 0.375-inch clamp travel for workpiece adjustment range
• Compact 0.625-inch height for low-profile fixturing
• Single-piece unit, no assembly required

Compatibility

Designed as a standard manual edge clamp for use with fixture plates, T-slot tables, and modular workholding systems that accept 0.375-inch socket cap screws.

Installation Notes

Installation is performed by machinists or toolroom technicians using a hex key or Allen wrench to torque the socket cap screw into the fixture plate. Confirm the workpiece is properly seated and supported before tightening. Inspect the clamp nose and seating surface for debris before use. Follow shop safety procedures and deactivate any power feed or spindle before adjusting clamp position during setup.
