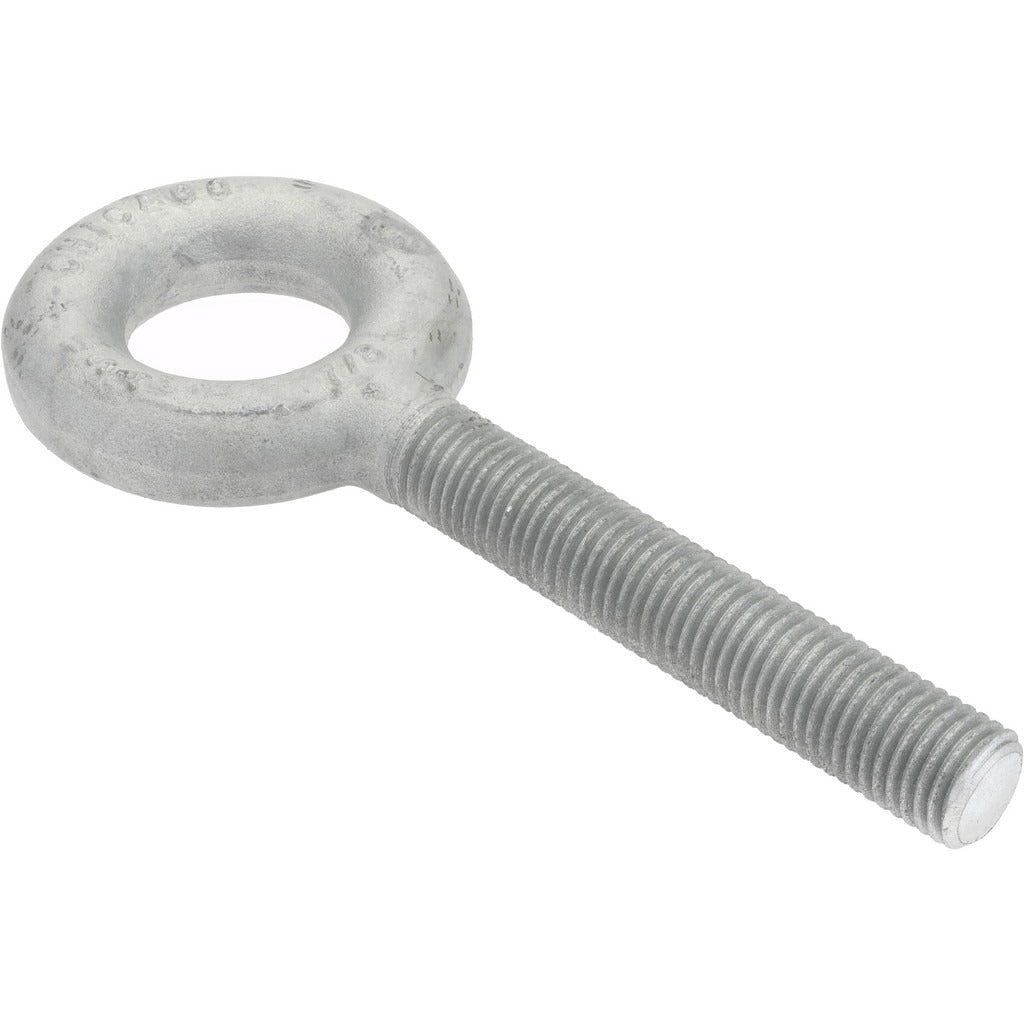

Gibraltar 27105 9 Fixed Lifting Eye Bolt 7000 Lb 7/8-9

Product Description

The GIBRALTAR 27105 9 is a fixed lifting eye bolt rated for 7,000 lb capacity, designed for overhead and rigging applications across industrial, construction, and mechanical service environments. Built from C-1035 grade steel with a hot dipped galvanized finish, it delivers corrosion resistance suitable for both indoor and outdoor use. The bolt features a 7/8-9 fully threaded shank measuring 5 inches in length, providing secure engagement across a wide range of structural connections. This eye bolt is installed by riggers, millwrights, and maintenance technicians wherever a fixed anchor point is required for lifting or material handling operations.

This fixed eye bolt is suited for permanent or semi-permanent lift points in structural steel, timber, and machinery applications. The without-shoulder design means the load must be applied in line with the shank axis — it is not rated for angular loading. Typical installation scenarios include rigging anchor points on machinery frames, overhead hoists, and load-securing assemblies in warehouses or fabrication facilities.

Key Features

• 7,000 lb vertical lifting capacity
• 7/8-9 fully threaded shank, 5 inches thread length
• C-1035 steel construction with hot dipped galvanized finish for corrosion resistance
• Eye inside diameter of 1-11/16 inches accommodates standard shackles and hooks
• Eye outside diameter of 3-1/4 inches for positive visual confirmation of hook engagement
• Without-shoulder design — load must be applied along the shank axis only

Compatibility

Designed as a fixed lifting anchor for threaded holes or through-bolt applications using 7/8-9 thread in structural steel, heavy timber, or machinery frames where a vertical lift point is required.

Installation Notes

Installation is performed by qualified riggers or maintenance technicians following applicable ASME B30.26 rigging hardware standards. Thread the bolt fully into a properly sized and tapped hole, ensuring complete thread engagement equal to at least the bolt diameter before applying any load. Because this is a shoulderless eye bolt, angular loading is not permitted — loads must be applied axially along the shank. Inspect threads, the eye, and the galvanized coating for damage before each use.
