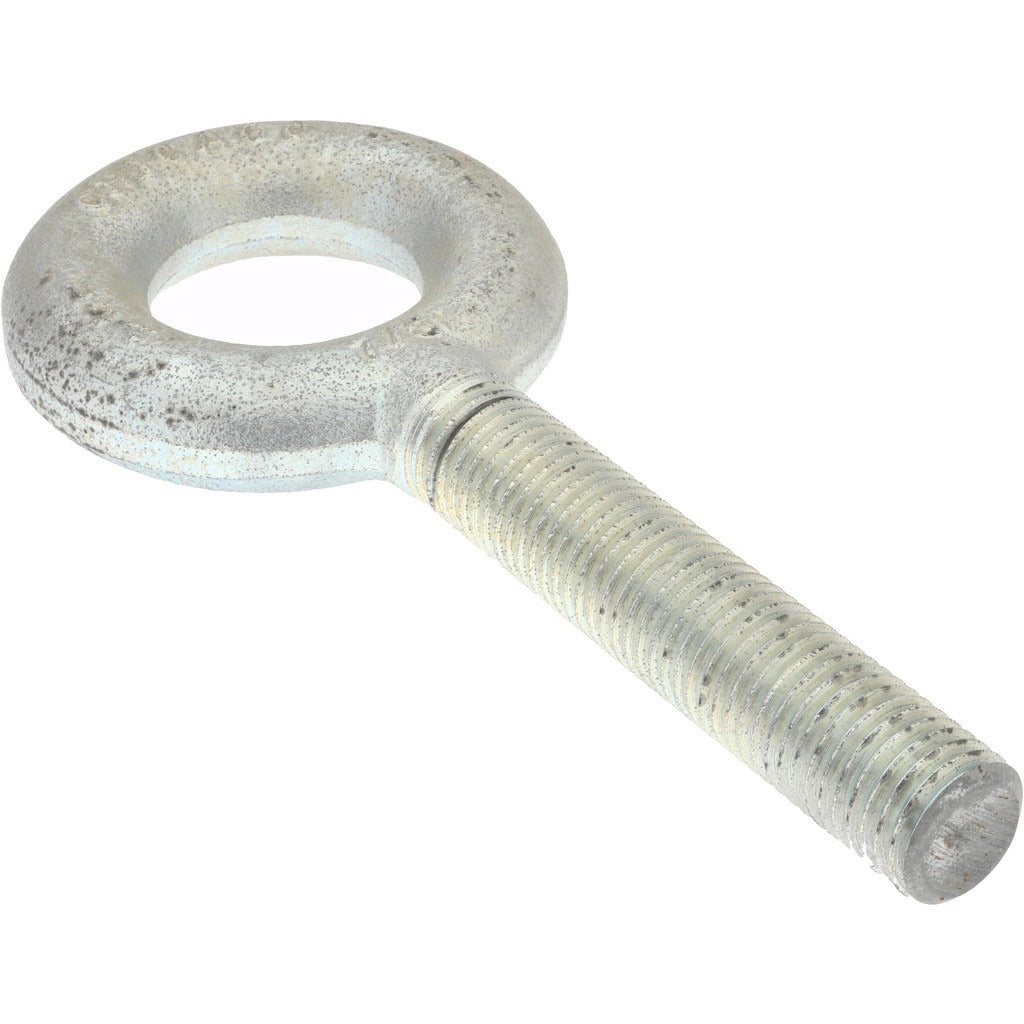

Gibraltar 26835 6 Lifting Eye Bolt 7000 Lb 7/8-9 Thread

Product Description

The GIBRALTAR 26835 6 is a shoulderless lifting eye bolt rated for 7,000 lb capacity, designed for vertical overhead lifting applications in industrial, construction, and mechanical environments. It features a 7/8-9 thread with a fully threaded shank measuring 4.5 inches in length. Constructed from C-1035 grade steel with a zinc-plated finish for corrosion resistance, this eye bolt provides a reliable anchor point when rigging slings, hooks, or cables to machinery, structural components, or heavy equipment. Installation is performed by maintenance mechanics, riggers, and millwrights in settings that require dependable load-bearing hardware.

This eye bolt is suited for overhead and vertical lift rigging in manufacturing facilities, warehouses, fabrication shops, and construction sites. The 7/8-9 thread size fits standard tapped holes and threaded inserts used in heavy machinery and structural steel assemblies. Its fully threaded shank allows engagement depth adjustment to meet specific installation requirements. The zinc-plated finish provides light corrosion protection in indoor and sheltered outdoor environments.

Key Features

• 7,000 lb rated lifting capacity for demanding vertical load applications
• Fully threaded 4.5-inch shank with 7/8-9 thread for versatile engagement depth
• C-1035 steel construction for high tensile strength and impact resistance
• Zinc-plated finish provides corrosion protection in typical shop and field environments
• Shoulderless design for straight vertical pull applications
• Eye inside diameter of 1.6875 inches and eye outside diameter of 3.25 inches accommodate standard shackles and hooks

Compatibility

Designed as a standard shoulderless lifting eye bolt for use in tapped holes or threaded inserts with a 7/8-9 thread specification, compatible with rigging hardware including shackles, hooks, and wire rope rated for equivalent or greater working load limits.

Installation Notes

Lifting eye bolts must be installed by qualified riggers or mechanics following applicable ASME B30.26 rigging hardware standards. Thread the bolt fully into a properly sized and rated tapped hole, ensuring full thread engagement before applying any load. Shoulderless eye bolts are rated for axial vertical pulls only and must not be used for angular or side loading without an appropriate swivel eye bolt rated for that application. Inspect threads and the eye for deformation or cracks before each use and remove from service if damage is found.
