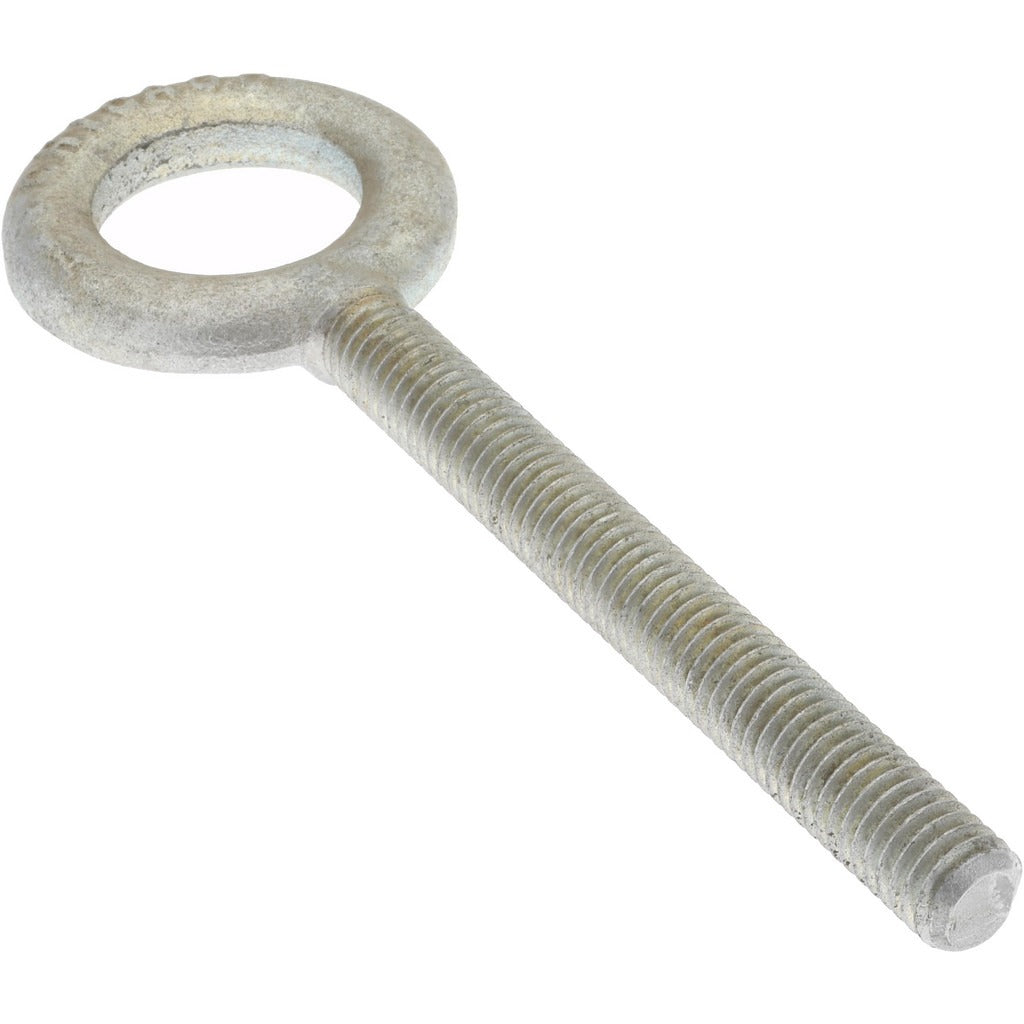

Gibraltar 26755 7 Fixed Eye Bolt 2000 Lb 7/16-14 C-1035

Product Description

The GIBRALTAR 26755 7 is a fixed lifting eye bolt designed for overhead lifting and rigging applications in industrial, construction, and mechanical trades. It features a 7/16-14 thread size with a fully threaded 4-inch shank, allowing secure engagement across the full thread length. The eye is forged from C-1035 grade steel and finished with zinc plating for corrosion resistance. Rated at 2,000 lb lifting capacity, this bolt is appropriate for straight-pull vertical lifts where a shoulderless design is acceptable. It is installed by qualified riggers, maintenance mechanics, and millwrights following applicable load-rated rigging standards.

This eye bolt is suited for use in fixed rigging points on equipment, structural steel, machinery, and similar load-bearing applications. The without-shoulder design means it is intended for straight inline vertical loads only — angular loading requires a shouldered style. The zinc-plated finish provides basic environmental protection for indoor and sheltered outdoor use. Its 7/16-14 thread is a common unified coarse pitch, compatible with standard tapped holes and nuts of the same specification.

Key Features

• 2,000 lb rated lifting capacity for vertical straight-pull applications
• Fully threaded 4-inch shank allows maximum thread engagement depth
• C-1035 grade steel construction for consistent mechanical strength
• Zinc-plated finish provides corrosion resistance in typical shop and industrial environments
• 7/16-14 unified coarse thread for compatibility with standard tapped holes
• Without-shoulder design — intended for inline vertical loads only

Compatibility

Designed as an OEM-style fixed eye bolt for use in standard 7/16-14 tapped holes in rigging, lifting, and load-anchoring applications where a shoulderless configuration is specified.

Installation Notes

Installation should be performed by qualified personnel familiar with rigging hardware standards such as ASME B30.26. Thread the bolt fully into the tapped hole until firmly seated, ensuring full thread engagement for rated capacity. Do not use this shoulderless eye bolt for angular or side loads — angular loading requires a shoulder-type eye bolt rated for that use. Inspect the eye and threads for deformation or damage before each lift.
