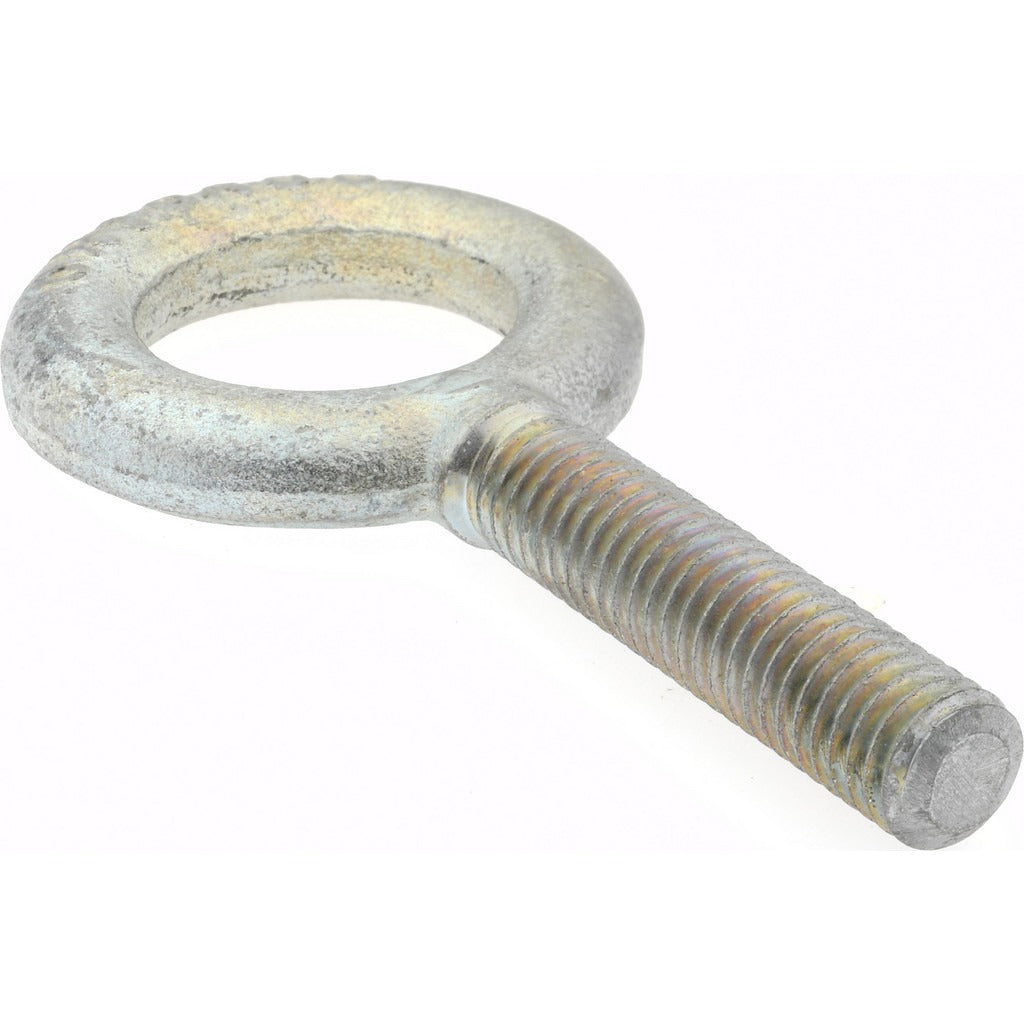

Gibraltar 26745 8 Fixed Lifting Eye Bolt 2000 Lb 7/16-14

Product Description

The GIBRALTAR 26745 8 is a fixed lifting eye bolt rated for 2,000 lb capacity, designed for vertical lift rigging applications in industrial, mechanical, and construction environments. It features a 7/16-14 thread size with a fully threaded, 2-inch shank and 2-inch thread length. Constructed from C-1035 grade steel with a zinc-plated finish, this eye bolt provides corrosion resistance suitable for demanding shop and field use. It is a shoulderless, fixed-eye design intended for straight, in-line vertical loads only. Installation and rigging are typically performed by millwrights, riggers, maintenance mechanics, and industrial tradespeople.

This eye bolt is suited for use in hoisting, lifting, and load-securing setups where a threaded anchor point is required in steel, structural members, or machinery frames. The shoulderless design makes it appropriate for use where the bolt threads fully through a tapped hole or secured with a nut on the back side. It is commonly used in maintenance shops, manufacturing facilities, and equipment rigging scenarios where a reliable fixed anchor point is needed for vertical lifting only.

Key Features

• 2,000 lb rated lifting capacity for vertical in-line loads
• Fully threaded 2-inch shank with 7/16-14 thread size
• C-1035 grade steel construction for strength and durability
• Zinc-plated finish for corrosion resistance
• Shoulderless fixed-eye design for through-hole or nut-secured installations
• Eye inside diameter of 1-3/32 inches accommodates standard rigging hardware

Compatibility

Designed as an OEM-style fixed lifting eye bolt for use in applications requiring a 7/16-14 threaded anchor point with a 2,000 lb vertical load rating in industrial and mechanical rigging setups.

Installation Notes

Installation should be performed by a qualified rigger or maintenance mechanic familiar with applicable ASME B30.26 rigging hardware standards. Ensure the mating hole is properly tapped to 7/16-14 and that the bolt is fully engaged before applying any load. This is a fixed-eye, shoulderless design rated for vertical in-line loading only — angular or side loads will significantly reduce safe working capacity. Always de-energize and secure the load path before inspecting or replacing rigging hardware.
