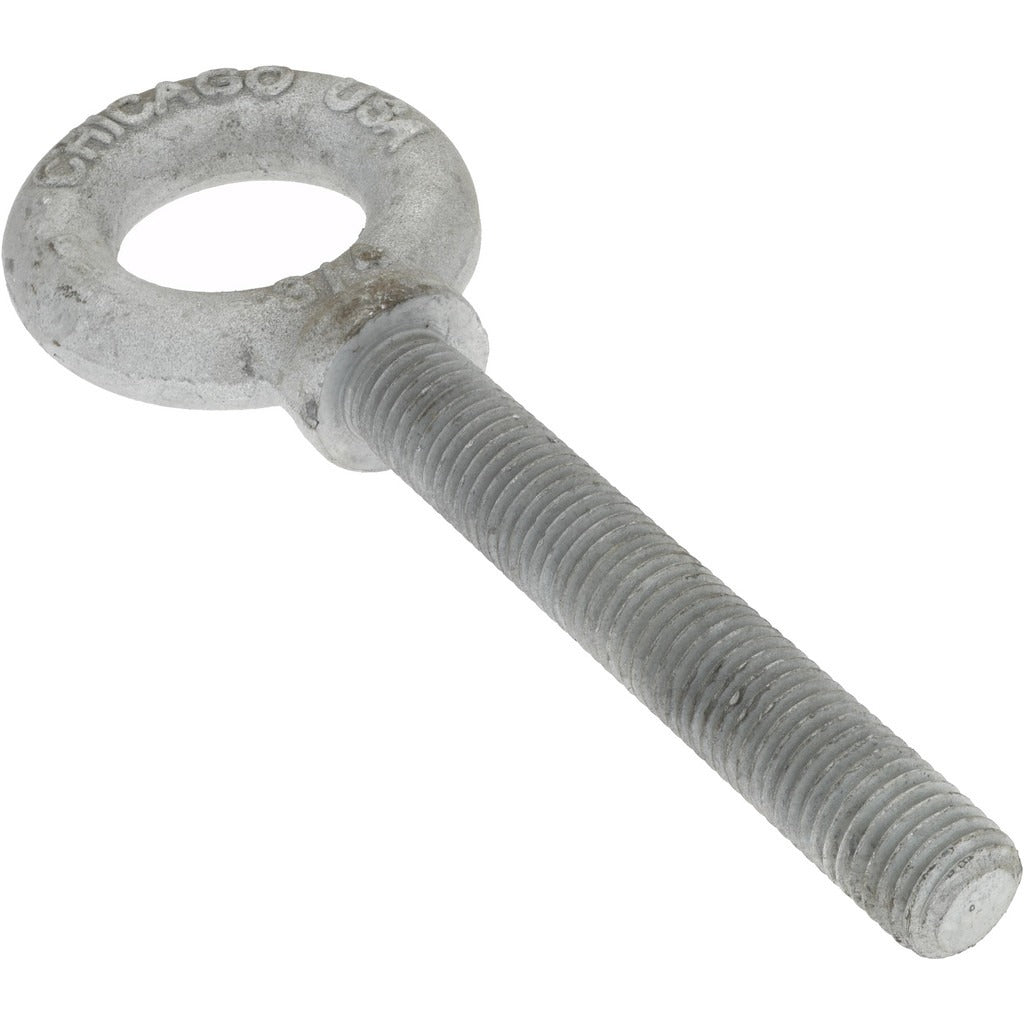

Gibraltar 26480 8 Fixed Shoulder Eye Bolt 6000 Lb 3/4-10

Product Description

The GIBRALTAR 26480 8 is a fixed lifting eye bolt with shoulder, designed for overhead lifting and rigging applications in industrial and commercial environments. Rated at 6,000 pounds lifting capacity, this bolt is manufactured from C-1035 grade steel with a hot dipped galvanized finish for corrosion resistance. The shank measures 5 inches with a fully threaded 5-inch thread length on a 3/4-10 thread size. It is installed by millwrights, riggers, maintenance mechanics, and contractors who require a reliable anchor point for hoists, chain falls, and lifting slings.

This eye bolt is suited for use in overhead rigging, machinery lifting, structural lifting points, and general material handling in manufacturing, construction, and maintenance settings. The shoulder design provides load stability under angular loading conditions, making it appropriate for applications where the load angle may deviate from vertical. The hot dipped galvanized coating makes it suitable for use in moderately corrosive or outdoor environments where bare steel would degrade rapidly.

Key Features

• 6,000 pound rated lifting capacity for heavy-duty rigging use
• Shoulder design adds lateral load stability compared to shoulderless eye bolts
• Fully threaded 5-inch shank on 3/4-10 thread for secure fastening
• C-1035 grade steel construction for strength and durability
• Hot dipped galvanized finish provides corrosion resistance in outdoor and wet environments
• 1-1/2 inch inside eye diameter accommodates standard hooks and shackles

Compatibility

Designed for use with standard 3/4-10 threaded anchor points and compatible with hooks, shackles, and lifting hardware rated to 6,000 pounds or greater. Shoulder style is required for any angular or side-load rigging applications per standard rigging practice.

Installation Notes

Installation should be performed by a qualified rigger or maintenance mechanic familiar with ASME B30.26 rigging hardware standards. The shoulder must seat fully and flush against the mounting surface before applying any load. Torque to the fastener manufacturer specifications for 3/4-10 thread engagement, and always verify thread engagement depth is adequate for the rated load. Never exceed the rated lifting capacity and always inspect the eye bolt for cracks, deformation, or thread damage before each use.
