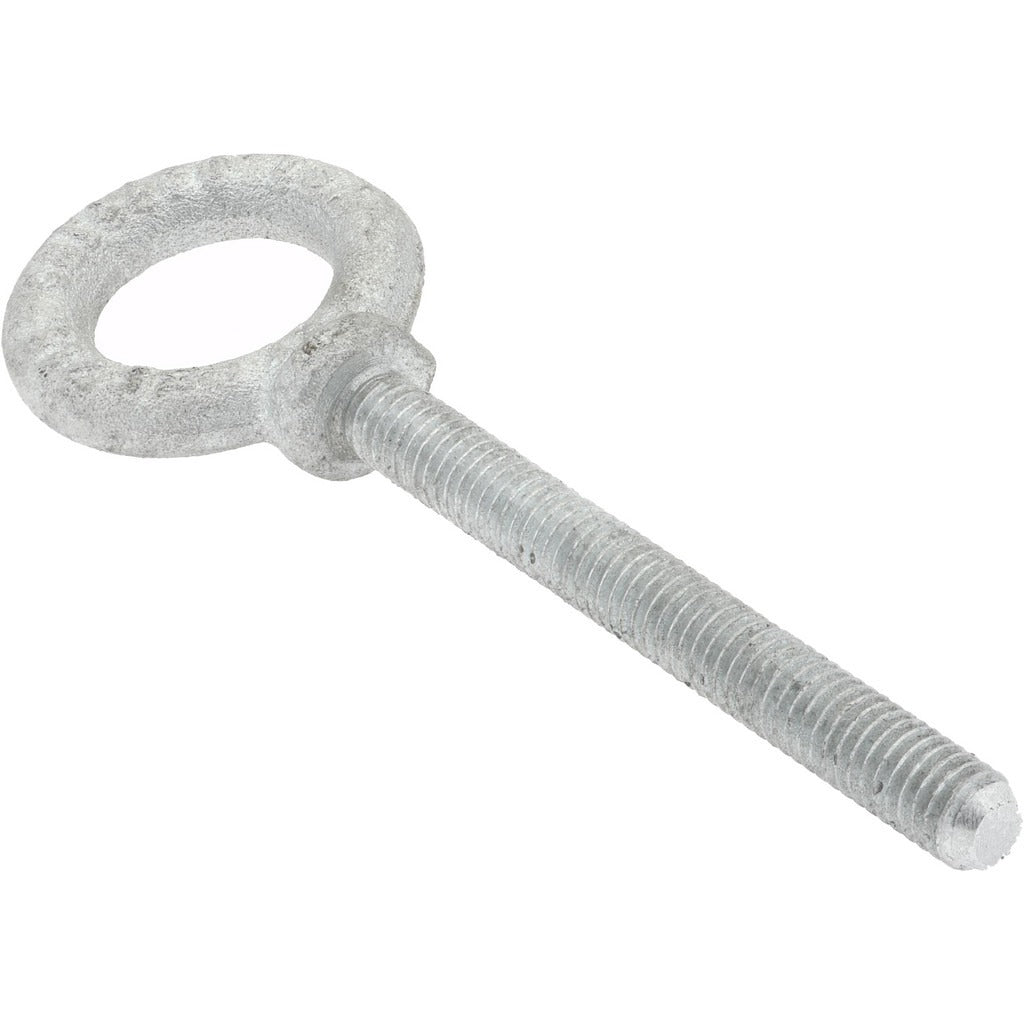

Gibraltar 26380 1 Fixed Shoulder Eye Bolt 900 Lb 5/16-18

Product Description

The GIBRALTAR 26380 1 is a fixed lifting eye bolt with shoulder, designed for overhead lifting and rigging applications in industrial and commercial settings. The bolt is manufactured from C-1035 grade steel with a hot dipped galvanized finish that provides corrosion resistance in demanding environments. It carries a rated lifting capacity of 900 pounds and features a fully threaded shank with a 5/16-18 thread size and a 3-inch thread length. The 3-inch shank length and shoulder design allow proper load distribution when installed through a load-bearing surface. Rigging professionals and maintenance crews are the primary installers.

This eye bolt is suited for straight-line vertical lifting and general rigging tasks in manufacturing facilities, warehouses, construction sites, and mechanical equipment rooms. The shoulder design is required when the bolt is installed through a structure, as it prevents the eye from pulling through the mounting surface under load. The 7/8-inch inside diameter eye accommodates standard shackles, hooks, and lifting hardware. Applications include securing and hoisting machinery, HVAC equipment, and other trade loads within the rated capacity.

Key Features

• 900 lb rated lifting capacity for vertical overhead lift
• Shoulder design distributes load across the mounting surface
• Fully threaded 3-inch shank with 5/16-18 thread for secure engagement
• Hot dipped galvanized C-1035 steel construction for corrosion resistance
• 7/8-inch inside diameter eye fits standard shackles and lifting hooks
• 1-1/2-inch outside diameter eye for compatibility with common rigging hardware

Compatibility

Designed as a standard fixed shoulder eye bolt for use with 5/16-18 threaded connections in inch-measurement rigging and lifting assemblies.

Installation Notes

Installation should be performed by qualified rigging or maintenance personnel in accordance with ASME B30.26 and applicable OSHA rigging standards. The shoulder must bear fully and flush against the mounting surface before any load is applied. Always inspect the eye bolt and surrounding structure for damage or corrosion before each use. Never side-load a fixed eye bolt beyond its rated capacity or apply angular loads without downrating per manufacturer rigging tables.
