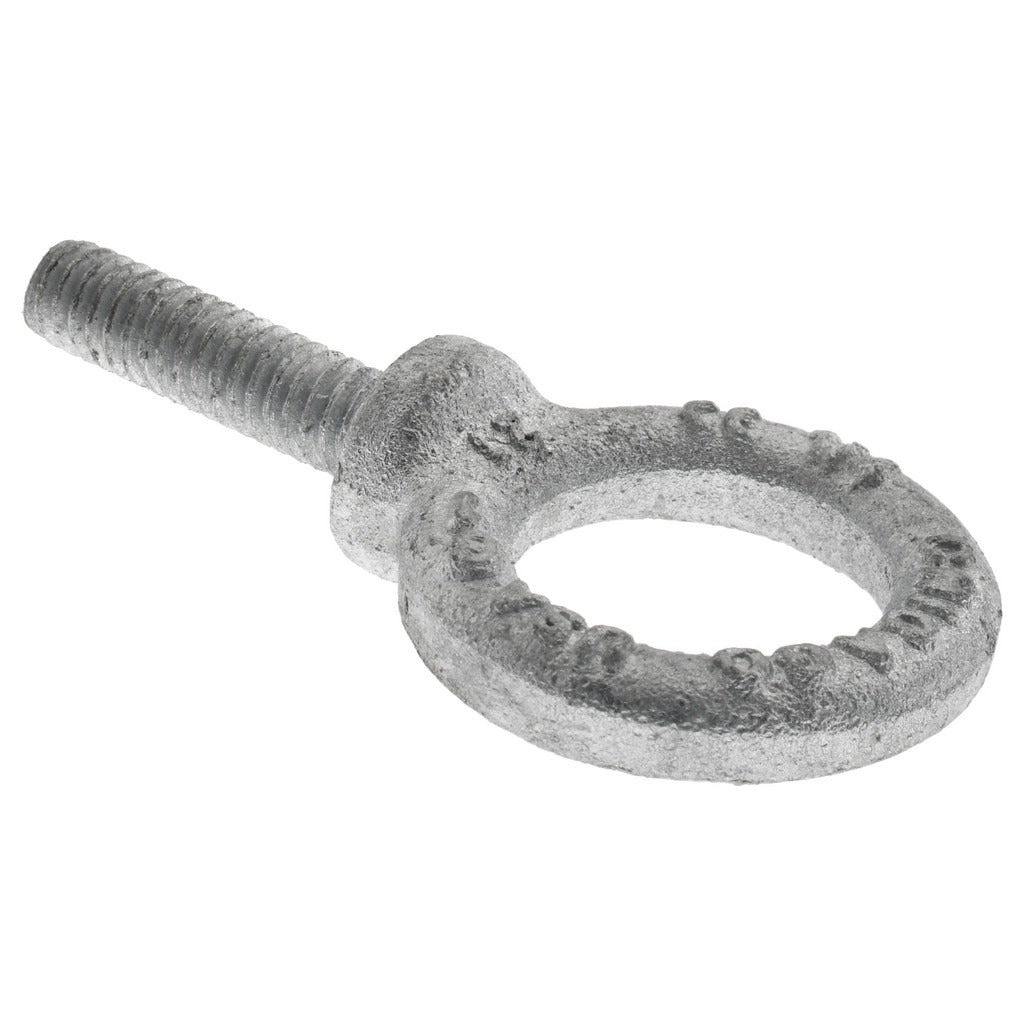

Gibraltar 26155 5 Fixed Shoulder Eye Bolt 500 Lb 1/4-20

Product Description

The GIBRALTAR 26155 5 is a fixed lifting eye bolt with a shoulder, designed for straight vertical lifting applications in industrial, mechanical, and construction environments. Built from C-1035 forged steel with a hot-dipped galvanized finish, this eye bolt is rated at 500 lb lifting capacity. The 1/4-20 thread is fully threaded along a 1-inch shank, providing secure engagement in compatible tapped holes. The shoulder base seats flush against the load surface to distribute stress and prevent pull-through under load. Licensed riggers and maintenance technicians working in overhead lifting and material handling applications are the primary installers.

This eye bolt is suited for use in rigging, hoisting, and load-securing setups where a fixed, non-swivel anchor point is required. Its compact 1/4-20 thread size makes it appropriate for lighter-duty lifting points on machinery, fixtures, enclosures, and structural assemblies in both residential and light commercial settings. The hot-dipped galvanized finish provides corrosion resistance for indoor and moderately exposed outdoor installations.

Key Features

• 500 lb rated lifting capacity for straight vertical loads
• 1/4-20 fully threaded shank, 1 inch thread length, 1 inch shank length
• Shoulder design distributes load stress at the mating surface and resists pull-through
• C-1035 forged steel construction for consistent grain structure and load integrity
• Hot-dipped galvanized finish for corrosion resistance
• Eye inside diameter of 3/4 inch accommodates standard shackles and hooks

Compatibility

Designed as a standard fixed shoulder eye bolt for use in tapped holes with 1/4-20 thread in steel, iron, or other structural materials requiring a rated vertical lifting anchor point.

Installation Notes

Installation should be performed by a qualified rigger or maintenance technician familiar with ASME B30.26 rigging hardware standards. Thread the bolt fully into the tapped hole until the shoulder seats completely against the load surface before applying any load. Never side-load a fixed eye bolt, as rated capacity applies to straight vertical pulls only. Inspect the eye bolt and mating threads for damage before each use.
