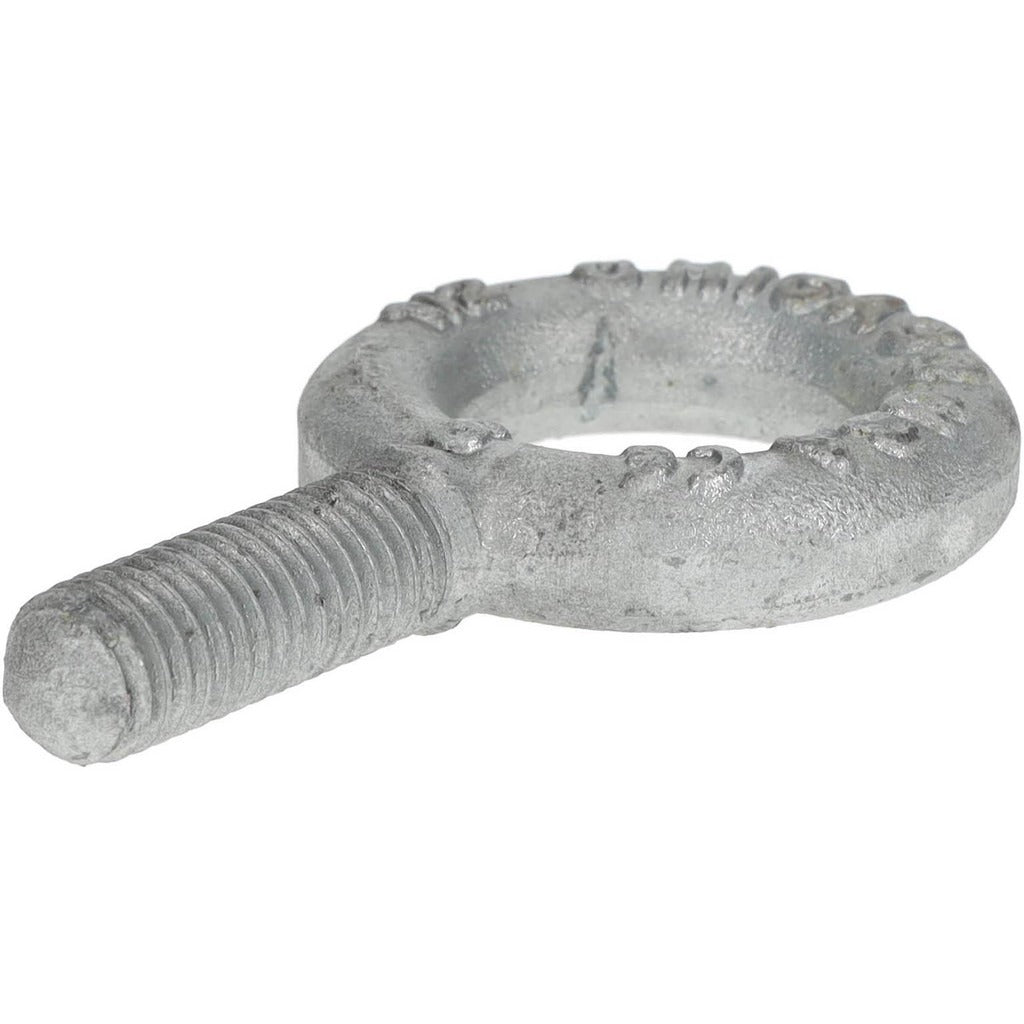

Gibraltar 26117 3 Fixed Eye Bolt 2600 Lb 1/2-13 Forged Steel

Product Description

The GIBRALTAR 26117 3 is a fixed lifting eye bolt designed for overhead lifting and rigging applications where a permanent, non-swiveling attachment point is required. Manufactured from C-1035 grade forged steel with a hot-dipped galvanized finish, this eye bolt carries a rated lifting capacity of 2,600 pounds. The shank is fully threaded at 1/2-13 UNC, making it compatible with standard nuts and threaded inserts. Rigging hardware like this is installed by millwrights, maintenance mechanics, and contractors who need a reliable anchor point for hoists, chain falls, and lifting slings. The hot-dipped galvanized coating provides corrosion resistance for use in industrial and outdoor environments.

This eye bolt is suited for residential, commercial, and industrial settings where a fixed lifting point is needed in structural members, equipment frames, or machinery. The without-shoulder design means the bolt seats flush against the surface, making it appropriate for in-line or vertical lifting loads. Applications include equipment rigging, material handling, and structural tie-off points. The 1/2-13 thread size is a common standard in industrial fastener applications, and the fully threaded shank offers maximum thread engagement within the available shank length of 1.5 inches.

Key Features

• 2,600 lb rated lifting capacity for overhead rigging and hoisting use
• C-1035 forged steel construction for high strength and durability
• Hot-dipped galvanized finish for corrosion resistance in wet or outdoor environments
• Fully threaded 1/2-13 UNC shank for maximum thread engagement
• Without-shoulder design for flush seating against mounting surface
• Eye inside diameter of 1-3/16 inches accommodates standard hooks and shackles

Compatibility

Designed as an OEM-style replacement or standard-fit lifting eye bolt for use with any application requiring a 1/2-13 UNC threaded fixed eye bolt without shoulder.

Installation Notes

Installation should be performed by qualified rigging personnel or licensed contractors familiar with applicable ASME B30 rigging standards. Always power down or de-energize any connected equipment before installing or removing lifting hardware. For vertical in-line loads only — without-shoulder eye bolts are not rated for angular loading; use a shouldered or swivel eye bolt when off-axis loads are present. Verify full thread engagement and inspect the bolt for damage before each lift.
