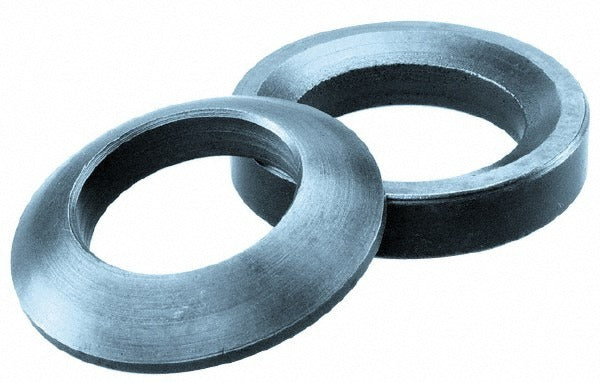

Gibraltar 23050.0124 Female Spherical Washer 24mm

Product Description

The GIBRALTAR 23050.0124 is a Type D female spherical washer designed for use with 24mm metric bolts. Manufactured from case hardened steel, this washer provides a self-aligning bearing surface that compensates for angular misalignment in bolted assemblies. It meets DIN 6319 fastener standards and accommodates a maximum angular correction of 3.00 degrees. The female spherical seat features a 28mm inside diameter and a 44mm outside diameter, with a thickness of 9.50mm and a total weight of 1 pound. This component is installed by maintenance mechanics, millwrights, and industrial technicians working with precision fastening assemblies.

The GIBRALTAR 23050.0124 is suited for industrial and mechanical assemblies where bolt misalignment must be corrected to ensure even load distribution across the fastener. Spherical washers are commonly used in machine bases, structural steel connections, conveyor systems, and heavy equipment mounting where surface irregularities or angular offsets are present. This washer pairs with a corresponding male spherical washer (Type C, per DIN 6319) to form a matched self-aligning set, though only the female component is supplied here.

Key Features

• Type D female spherical washer conforming to DIN 6319 fastener standard
• Case hardened steel construction for durability under high clamping loads
• Accommodates up to 3.00 degrees of angular correction to compensate for misaligned surfaces
• 28mm female inside diameter x 44mm female outside diameter x 9.50mm thickness
• Metric sizing for 24mm bolt applications
• Sold individually — package quantity of 1

Compatibility

Designed for use with 24mm metric bolts in assemblies requiring DIN 6319 Type D female spherical washers. Intended to mate with a corresponding DIN 6319 Type C male spherical washer in a matched pair arrangement.

Installation Notes

Installation is performed by millwrights, maintenance mechanics, or industrial technicians. De-energize and lock out all equipment before servicing any bolted assembly. Spherical washers must be oriented correctly — the concave face of the female washer seats against the convex face of the male washer — to achieve proper angular compensation. Consult applicable machinery documentation and relevant fastening standards for torque requirements appropriate to the specific assembly.
