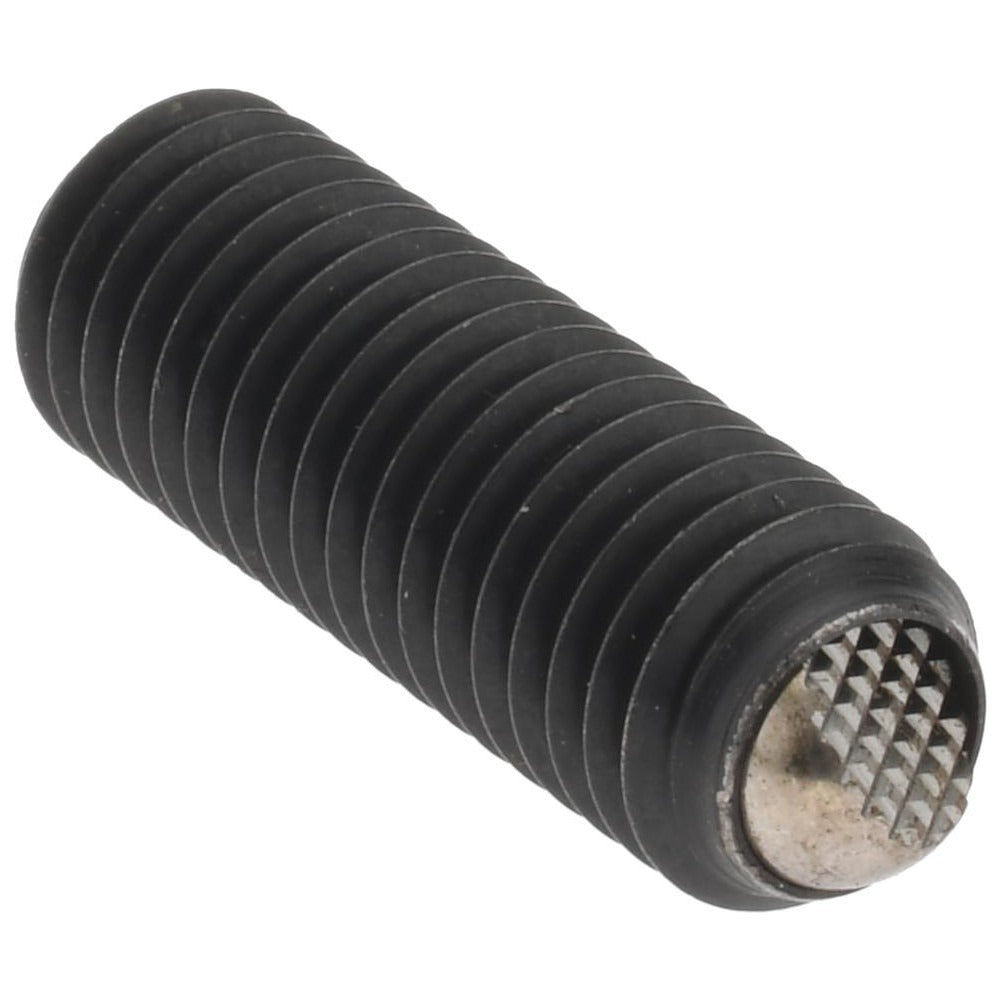

Gibraltar 22720.0905 Ball End Clamping Screw M10 30mm

Product Description

The GIBRALTAR 22720.0905 is a headless ridged flat face ball end clamping screw designed for workholding and fixturing applications in machining and manufacturing environments. Manufactured from steel throughout, including the 7mm ball, this screw delivers a rated maximum load capacity of 4,496 pounds. The M10 thread and 30mm overall length suit standard fixturing setups where a low-profile, headless fastener is required to apply consistent clamping force without protruding above the workpiece surface. A 5mm hex key drive allows precise torque application in tight clearance areas. Machinists, toolmakers, and fixture builders are the typical end users.

This clamping screw is suited for use in precision workholding fixtures, jigs, and modular fixturing systems commonly found in job shops, production machining cells, and toolrooms. The ridged flat face ball design allows the screw to seat firmly against angled or irregular clamping surfaces while maintaining positive contact and load transfer. It is appropriate for both manual and assisted clamping setups where an M10 threaded hole is present in the fixture body.

Key Features

• Headless design keeps the fastener flush or below the fixture surface, reducing interference with workpieces and toolpaths
• Ridged flat face ball style provides positive, non-slip contact against clamping surfaces
• 4,496 pound maximum load capacity for demanding fixturing applications
• Full steel construction on both screw body and ball for durability under repeated clamping cycles
• 5mm hex key drive allows installation and adjustment in confined fixture pockets
• M10 thread size compatible with standard metric fixturing components

Compatibility

Designed as a direct-fit clamping fastener for modular and custom workholding fixtures using M10 threaded clamping points in machining and manufacturing environments.

Installation Notes

Installation is performed by toolmakers or machinists using a 5mm hex key. Confirm the receiving threaded hole is clean, undamaged, and correctly sized for M10 before installation. Do not exceed the rated maximum load capacity of 4,496 pounds during clamping operations. Periodically inspect the ball end for wear or deformation, particularly in high-cycle fixturing applications.
