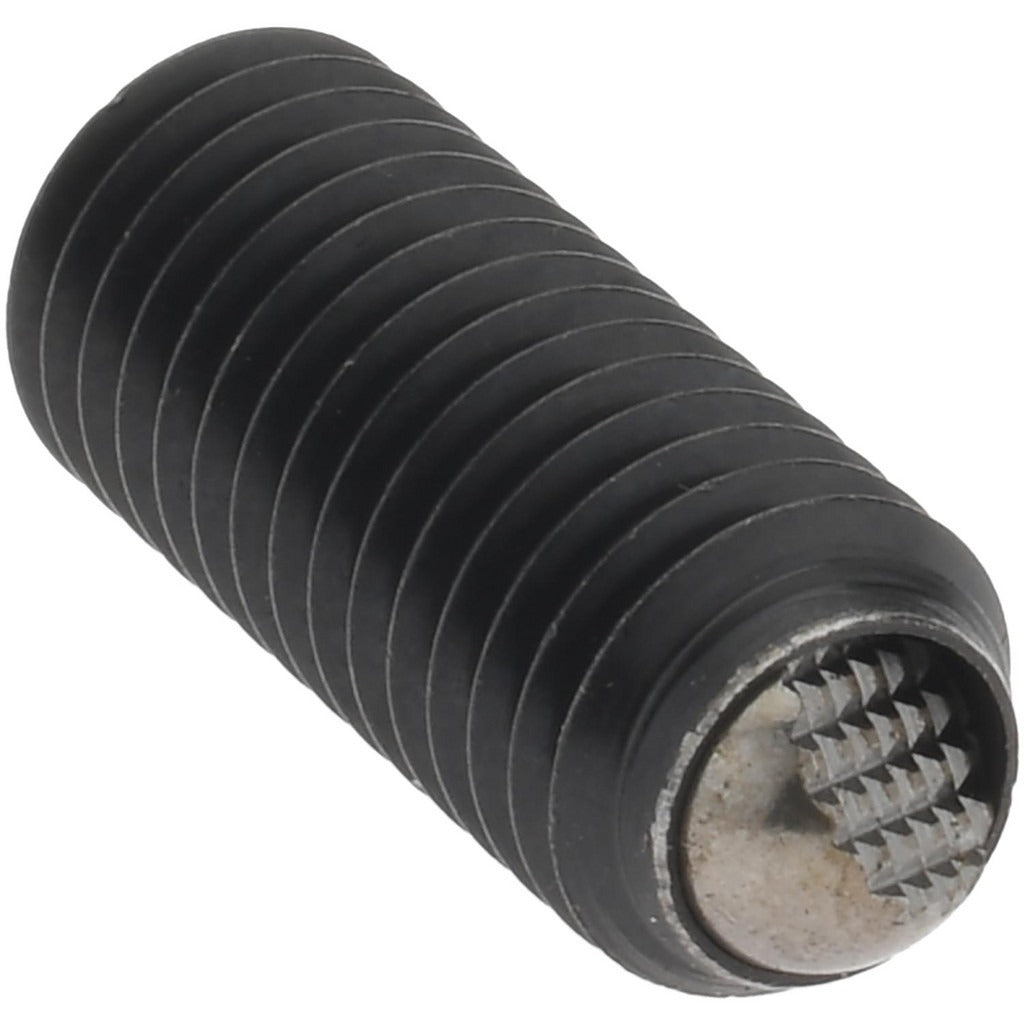

Gibraltar 22720.0904 Ball End Clamping Screw M10

Product Description

The GIBRALTAR 22720.0904 is a headless ridged flat face ball end clamping screw used in workholding, fixturing, and machine tool setups. Manufactured from steel throughout, it features a 7mm ridged flat face ball end that provides controlled clamping pressure against a workpiece without marring or shifting it. The M10 thread and 25mm overall length suit compact clamping assemblies where a low-profile, headless design is required. A 5mm hex key drives the screw. Maximum rated load capacity is 4,496 pounds, making this a solid choice for demanding production fixturing applications. Machinists, toolmakers, and fixture builders are the primary installers.

This clamping screw is suited for use in toggle clamps, fixture clamps, modular workholding systems, and custom jig assemblies found in machine shops, fabrication facilities, and production environments. Its M10 thread is compatible with standard metric threaded clamp bodies and fixture plates. The ridged flat face ball end distributes clamping force evenly and resists rotation under load, making it appropriate for applications requiring repeatable, secure clamping without surface damage to the workpiece.

Key Features

• Headless design allows flush or recessed installation in threaded clamp bodies
• Ridged flat face ball end delivers controlled, rotation-resistant clamping contact
• M10 metric thread size fits standard metric workholding components
• 4,496 pound maximum load capacity rated for demanding fixturing applications
• Full steel construction — both screw body and ball end — for durability under repeated use
• Driven by a 5mm hex key for easy torque control in tight spaces

Compatibility

Designed for use with metric M10 threaded clamp bodies and fixture assemblies. No specific compatible system models were identified in the product data provided.

Installation Notes

Installation is performed by machinists or fixture builders using a 5mm hex key. Ensure the mating clamp body or fixture plate is threaded to M10 specifications before installation. Verify thread engagement depth is sufficient to support the intended clamping load before applying force. Do not exceed the rated maximum load capacity of 4,496 pounds.
