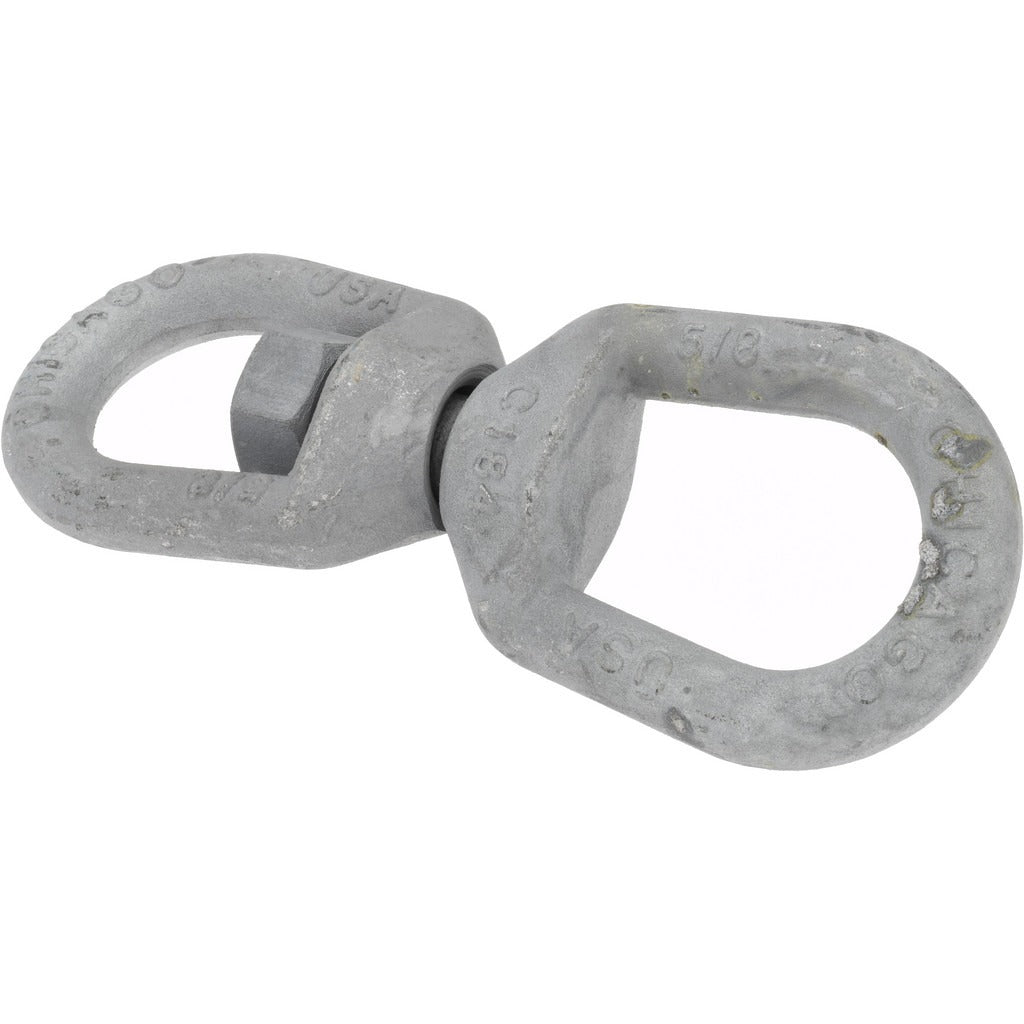

Gibraltar 21525 1 Oval Eye Swivel 5200 Lb Galvanized

Product Description

The GIBRALTAR 21525 1 is a heavy-duty oval eye swivel rated for a 5,200-pound load limit, built for rigging, lifting, and overhead material handling applications. Constructed from C1035 carbon steel with a galvanized finish, this swivel provides corrosion resistance and structural integrity under sustained working loads. It measures 7-7/8 inches in length with a 5/8-inch diameter oval eye. Key dimensional data includes a 3/4-inch pin diameter, 6-5/8-inch reach, 1-3/4-inch inside width, and 3-inch outside width. Riggers, millwrights, and industrial maintenance technicians use this hardware where controlled rotation between load points is required.

This swivel is suited for industrial rigging setups, overhead lifting assemblies, and load line applications where swivel rotation prevents line twist. The 2-3/8-inch lower eye inside height and 1-1/2-inch upper eye inside height allow standard rigging hardware connections. It is appropriate for both fixed-installation rigging points and temporary lift rigging in commercial or industrial settings. Quantity sold as a pack of 5 units per order.

Key Features

• 5,200-pound load limit for heavy rigging and lifting applications
• C1035 carbon steel construction for high tensile strength
• Galvanized finish for corrosion resistance in outdoor or wet environments
• 3/4-inch pin diameter for compatibility with standard rigging shackles and hardware
• Oval eye design allows secure connection to chain, rope, or cable assemblies
• 6-5/8-inch reach provides clearance in multi-leg rigging configurations

Compatibility

Designed for use with standard industrial rigging hardware including chain slings, wire rope assemblies, and lifting hooks where a 3/4-inch pin diameter and 5,200-pound rated swivel connection is required.

Installation Notes

Installation should be performed by a qualified rigger or millwright following applicable ASME B30 rigging standards. Inspect all mating hardware for matching load ratings before assembly and never exceed the stated 5,200-pound load limit. Ensure the swivel rotates freely before applying load and verify pin retention is secure. Remove from service if deformation, cracking, or corrosion damage is observed.
