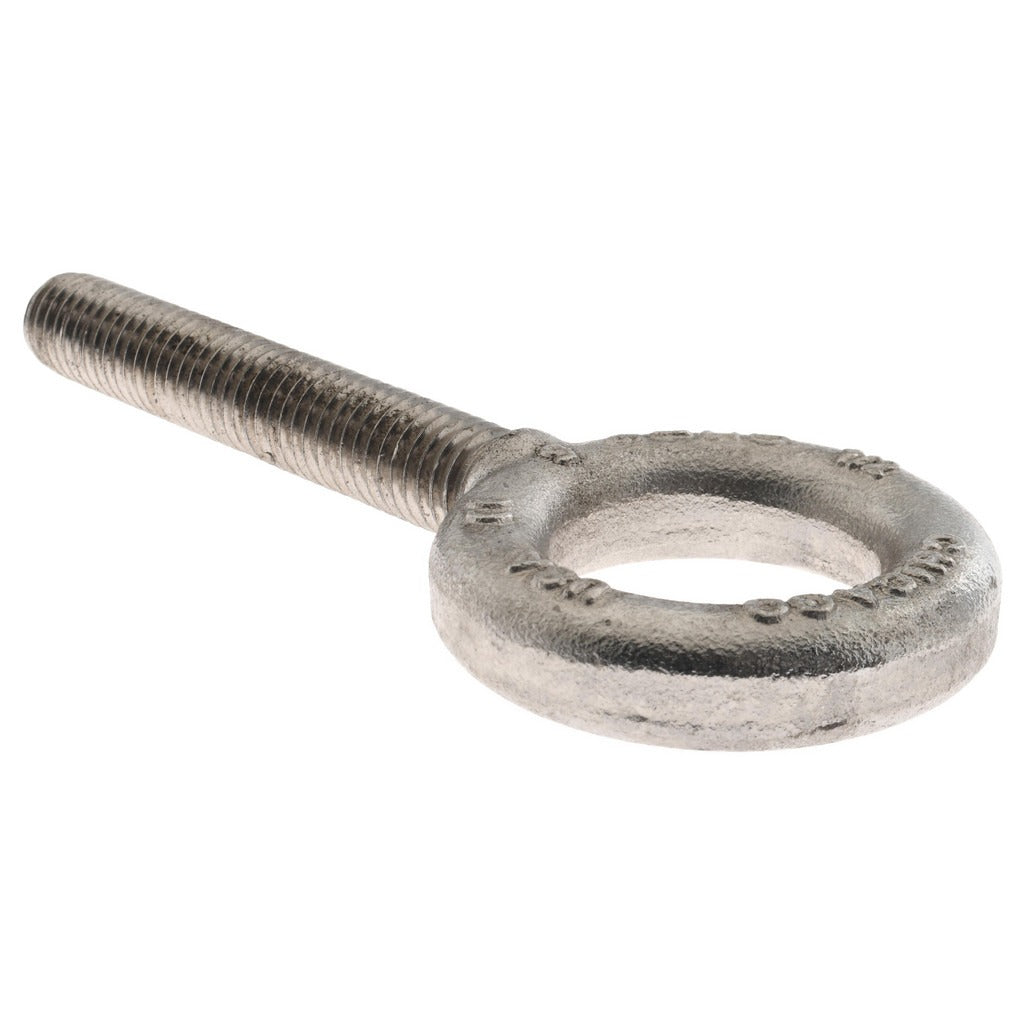

Gibraltar 14270 0 Fixed Lifting Eye Bolt 2600 Lb 1/2-13

Product Description

The GIBRALTAR 14270 0 is a fixed lifting eye bolt designed for rigging and overhead lifting applications where a threaded attachment point is needed. Manufactured from Grade 316 stainless steel with an electropolished finish, this eye bolt delivers strong corrosion resistance suited to marine, washdown, and outdoor environments. The bolt carries a 2,600 lb lifting capacity on a fully threaded 1/2-13 shank measuring 3 inches in length. Installation is handled by qualified riggers or millwrights working in compliance with applicable ASME and OSHA lifting standards.

This eye bolt is appropriate for use in both light industrial and commercial rigging setups where a fixed, non-swivel attachment point is acceptable and the load direction aligns with the bolt axis. The without-shoulder design means it is intended for use in solid material rather than plate-edge applications. Grade 316 stainless construction makes it a practical choice for food processing facilities, marine decks, chemical processing environments, and other corrosive or high-humidity settings where carbon steel hardware is not suitable.

Key Features

• 2,600 lb rated lifting capacity for fixed inline loads
• Grade 316 stainless steel construction for superior corrosion resistance
• Electropolished finish reduces surface roughness and further improves corrosion performance
• Fully threaded 3-inch shank with 1/2-13 thread size for secure engagement
• Without-shoulder design for solid material threaded installations
• 1-3/16 inch eye inside diameter accommodates standard shackles and hooks

Compatibility

Designed as an OEM-style fixed lifting eye bolt for use in rigging, hoist, and tie-down applications requiring a 1/2-13 threaded fastener in Grade 316 stainless steel.

Installation Notes

Installation should be performed by a qualified rigger or maintenance professional familiar with ASME B30.26 rigging hardware standards and applicable OSHA lifting regulations. Thread the bolt fully into a properly tapped hole in solid material to achieve the rated capacity — do not use in thin plate or unsupported edges without a shoulder-style bolt. Ensure the eye is loaded along the shank axis; angular loading on a fixed eye bolt significantly reduces safe working load. Inspect threads and the eye loop for deformation or corrosion before each use.
