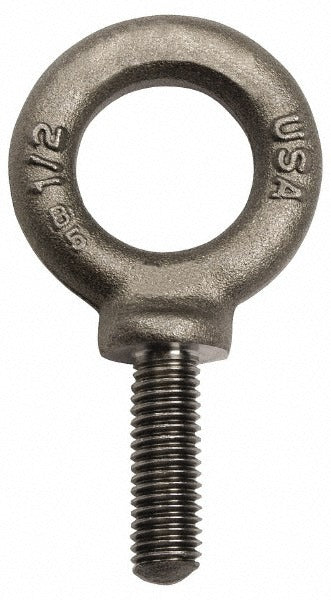

Gibraltar 12994 7 Fixed Lifting Eye Bolt 9000 Lb 1-8 Thread

Product Description

The GIBRALTAR 12994 7 is a fixed lifting eye bolt designed for heavy-duty rigging and lifting applications. Built from grade C-1035 forged steel, this eye bolt features a shoulder design that seats flush against the load surface to maintain alignment during vertical lifts. It carries a rated lifting capacity of 9,000 pounds and accepts a 1-8 thread pitch on a fully threaded shank measuring 4 inches in length. The shoulder base diameter measures 1 inch. This type of hardware is typically installed by millwrights, riggers, and industrial maintenance technicians working in manufacturing, construction, or material handling environments.

This eye bolt is suited for use in vertical lifting applications where a fixed, shouldered eye bolt is required to comply with rigging load requirements. The shoulder bears against the mating surface to prevent the bolt from pulling through under load. The 1-8 thread size accommodates standard heavy fastener tooling. Its forged steel construction provides the structural integrity required for sustained overhead lifting service in industrial settings.

Key Features

• Fixed eye design with integral shoulder for controlled vertical lifting
• 9,000 lb rated lifting capacity
• Fully threaded 4-inch shank with 1-8 thread pitch
• Grade C-1035 forged steel construction for high-strength performance
• Eye inside diameter of 1-13/16 inches accommodates standard rigging hardware
• Eye outside diameter of 3-9/16 inches

Compatibility

Designed as an OEM-style replacement or new-installation fixed shoulder eye bolt for use in standard 1-8 threaded lifting and rigging applications in industrial and construction environments.

Installation Notes

Installation should be performed by a qualified rigger or maintenance technician familiar with ASME B30.26 rigging hardware standards. Ensure the mating surface is flat and the shoulder seats fully before applying load. Always confirm the thread engagement depth meets application requirements before lifting. Never exceed the rated lifting capacity and do not use a fixed eye bolt for angular loads without derating per applicable rigging standards.
