Gibraltar 11091 4 Fixed Blank Lifting Eye Bolt C-1035 Steel

Product Description

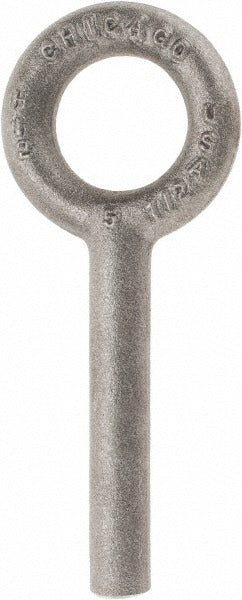

The GIBRALTAR 11091 4 is a fixed blank lifting eye bolt designed for overhead lifting and rigging applications where a shoulderless configuration is required. Manufactured from C-1035 forged steel, this eye bolt delivers solid structural integrity suited to demanding industrial and construction environments. The shank measures 3 inches in length, with an eye inside diameter of 1-3/16 inches and an eye outside diameter of 2-1/16 inches. The 1/2-inch shoulder and base diameter provides a defined seating reference during installation. Riggers, millwrights, and maintenance mechanics typically select this style for straight vertical lifts where a swivel or shoulder style is not required.

This fixed blank eye bolt is used in industrial facilities, fabrication shops, and construction sites for securing rigging hardware, attaching hoisting equipment, or anchoring loads. The blank shank style is intended to be threaded or used with a matching tapped hole in the application structure. It is appropriate for vertical lift scenarios in light to moderate industrial rigging setups. Installers should verify the rated load capacity of the fastener and rigging assembly against the intended load before use.

Key Features

• Fixed blank eye configuration — no shoulder, suited for straight vertical lift applications
• C-1035 forged steel construction for high structural strength and rigidity
• Eye inside diameter of 1-3/16 inches accommodates standard rigging hooks and shackles
• 3-inch shank length provides adequate thread engagement depth for most applications
• Blank shank design allows field threading to match application requirements
• Compact 1/2-inch base diameter suits installations with limited mounting surface clearance

Compatibility

Designed as an OEM-style fixed blank lifting eye bolt for general industrial rigging, hoisting, and material handling applications requiring a shoulderless, blank-shank forged steel eye bolt.

Installation Notes

Installation should be performed by a qualified rigger or maintenance mechanic familiar with applicable ASME B30 rigging standards. Ensure the mating threaded hole or nut is properly sized and fully engaged before applying any load. Always de-energize or lock out any equipment connected to the load path prior to installation or removal. Never side-load a fixed eye bolt; this style is rated for in-line vertical loading only.
