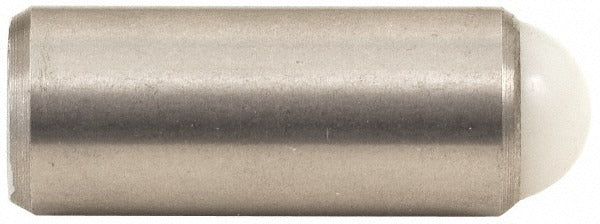

Gibraltar 10636SS Press Fit Ball Plunger 0.188 in Dia

Product Description

The GIBRALTAR 10636SS is a press fit ball plunger with a stainless steel body and a Delrin ball, designed to provide consistent spring-loaded positioning and detenting in mechanical assemblies. The body measures 0.188 inches in diameter and 0.44 inches in length, with a ball diameter of 0.187 inches and a maximum ball reach of 0.058 inches. Initial end force is 4 pounds and final end force is 10 pounds, giving the plunger a firm, predictable actuation feel. This component is installed by pressing directly into a drilled or reamed hole without threading, making installation fast and repeatable in production environments.

Ball plungers of this type are used across a wide range of light industrial and mechanical applications, including fixture alignment, panel latching, drawer positioning, and jig indexing. The stainless steel body resists corrosion in wash-down or high-humidity environments, while the Delrin ball offers low friction contact against mating surfaces. This plunger is suited for use in manufacturing, tooling, and equipment assembly where compact, no-flange hardware is required. The purple color code identifies the spring force rating for quick identification during assembly.

Key Features

• Stainless steel body provides corrosion resistance for demanding service environments
• Delrin ball delivers low-friction, low-wear contact on mating surfaces
• Press fit installation — no threads required, installs directly into a drilled hole
• 4 pound initial end force and 10 pound final end force for firm detent action
• No flange, no locking element — compact profile for tight clearance applications
• Purple color code identifies spring force rating at a glance

Compatibility

Designed as a standard press fit ball plunger for use in fixtures, jigs, panels, and mechanical assemblies requiring a 0.188 inch press fit bore.

Installation Notes

Press fit ball plungers are installed by machinists or assembly technicians using an arbor press or similar tooling to seat the plunger body into a precisely drilled or reamed hole. Ensure the receiving bore diameter and depth match the body diameter and length of the plunger before installation. De-energize or lock out any powered equipment before servicing assemblies that contain these components. Once pressed in, the plunger is not designed for removal and reinstallation without risk of bore damage.
