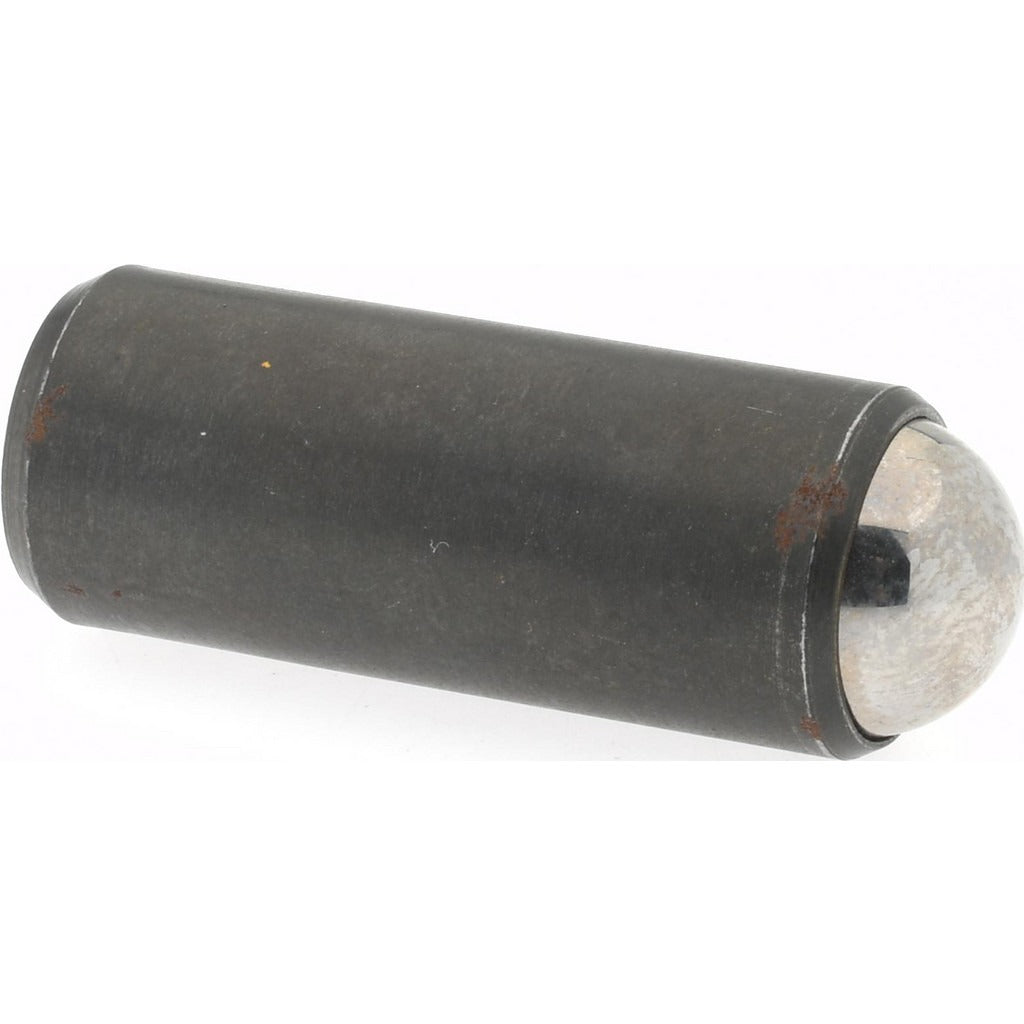

Gibraltar 10605 Steel Press Fit Ball Plunger

Product Description

The GIBRALTAR 10605 is a press fit ball plunger designed for use in positioning, indexing, and detent applications across a wide range of industrial and mechanical assemblies. The body measures 0.5 inches in diameter and 1.218 inches in length, with a stainless steel ball measuring 0.187 inches in diameter and a maximum ball reach of 0.161 inches. Initial end force is 4 pounds, with a final end force of 9 pounds. The black-finished steel body installs via press fit into a drilled hole, requiring no threads or locking elements. Machinists, toolmakers, and maintenance technicians install this component in fixtures, jigs, and equipment panels.

The 10605 is suited for light-duty detent and positioning applications in manufacturing tooling, machine fixtures, assembly jigs, and equipment enclosures. The press fit installation method makes it appropriate for situations where threaded installation is not practical or where a flush, low-profile body is required. The stainless steel ball provides corrosion resistance at the contact point while the steel body maintains structural integrity within the bore.

Key Features

• Press fit body installs without threads or locking hardware
• Stainless steel ball for corrosion resistance at the contact surface
• 4-pound initial end force and 9-pound final end force for reliable detent action
• Black finish on steel body
• No flange, no locking element — minimal footprint in tight assemblies
• Sold individually, no minimum order beyond single unit

Compatibility

Designed as an OEM-style press fit ball plunger for use in machined bores requiring a 0.5-inch diameter body in industrial tooling, fixtures, and mechanical assemblies.

Installation Notes

Installation requires pressing the body into a properly sized 0.5-inch diameter drilled or reamed bore using an arbor press or similar tooling — do not hammer directly onto the ball or body end. Ensure the bore depth accommodates the full 1.218-inch body length before pressing. Verify that the bore surface finish and tolerance are within specifications to achieve proper retention force. This type of component is typically installed by machinists or maintenance technicians during fixture fabrication or equipment assembly.
