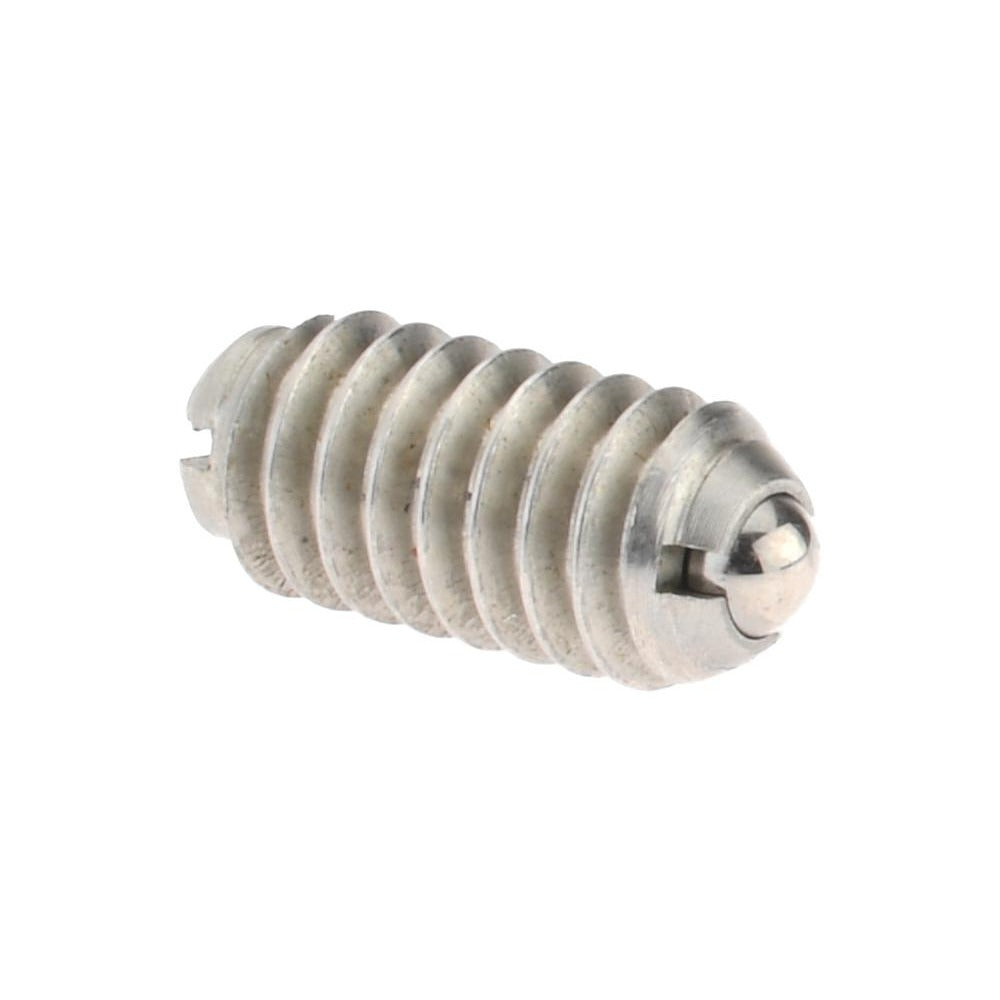

Gibraltar 10106P-G Threaded Ball Plunger 1/4-20 Stainless

Product Description

The GIBRALTAR 10106P-G is a threaded ball plunger designed for indexing, positioning, and light-duty detent applications across mechanical assemblies, fixtures, and tooling. It features a 1/4-20 thread size with a stainless steel body and stainless steel ball. The ball diameter measures 0.125 inches with a maximum ball reach of 0.035 inches. Initial end force is 4 pounds and final end force is 12 pounds, providing a controlled spring-loaded engagement. The all-stainless construction resists corrosion, making it suitable for washdown environments or applications where contact with fluids or cleaning agents is expected.

This ball plunger is commonly used in manufacturing, fabrication, and maintenance applications where repeatable positioning or light retention is needed. Typical installations include jigs, fixtures, drawer slides, machine tooling, and panel assemblies. The 1/4-20 thread allows installation into standard tapped holes without specialized hardware. It is installed by machinists, millwrights, and maintenance technicians working on light mechanical assemblies and positioning fixtures.

Key Features

• 1/4-20 thread size fits standard tapped holes without adapters
• 0.125 inch stainless steel ball for smooth, repeatable engagement
• 4 pound initial end force and 12 pound final end force for controlled detent action
• 0.035 inch maximum ball reach suits shallow detent geometry
• Stainless steel body and ball for corrosion resistance in wet or chemical environments
• No locking element - straightforward threaded installation

Compatibility

Designed as a standard 1/4-20 threaded ball plunger for use in any application requiring a tapped 1/4-20 receiving hole for indexing or positioning service.

Installation Notes

Install into a pre-tapped 1/4-20 hole using a hex key or appropriate wrench on the body flats. De-energize or lock out any moving machinery before installing or adjusting ball plungers in active fixtures or assemblies. Avoid overtightening, which can deform the body and restrict ball travel. Verify ball reach and force requirements against the application before final installation.
