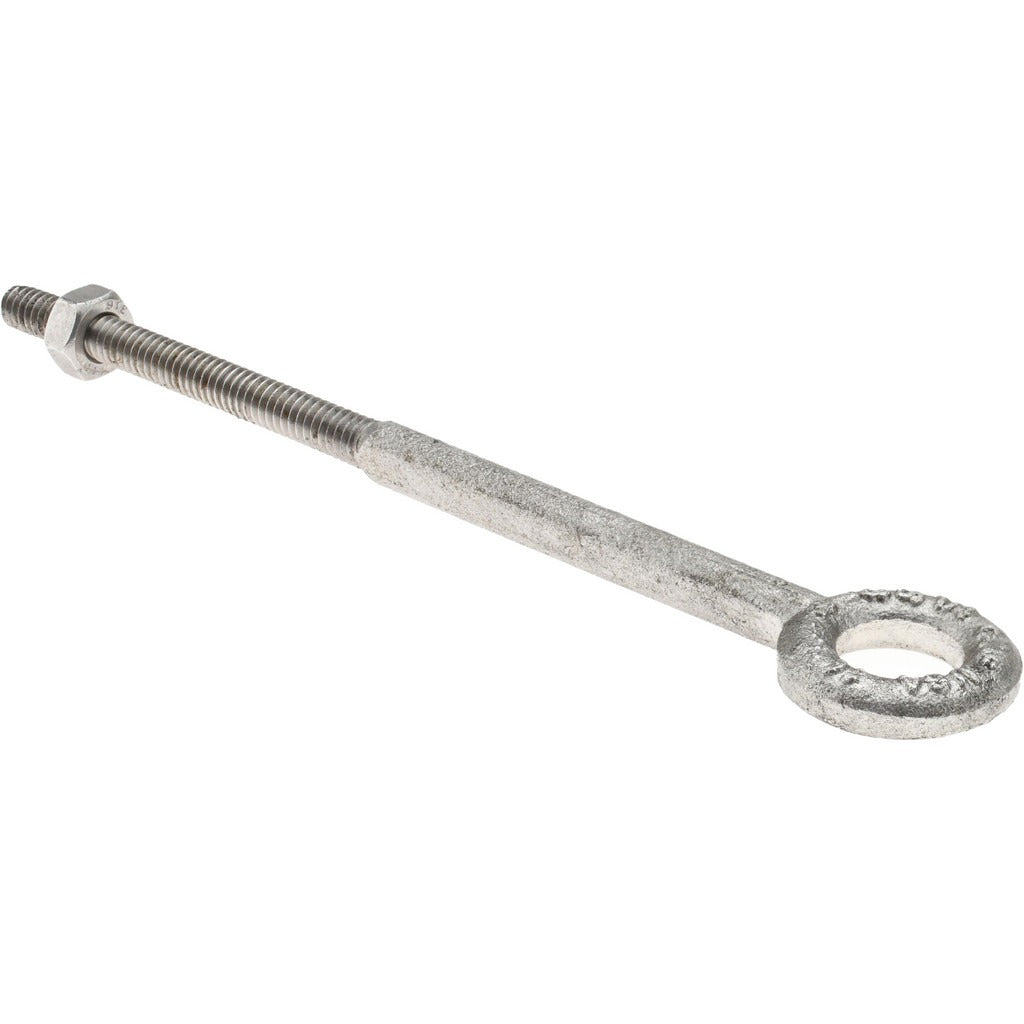

Gibraltar 08214 3 Fixed Lifting Eye Bolt 500 Lb 316 Ss

Product Description

The GIBRALTAR 08214 3 is a fixed lifting eye bolt rated for 500 pounds of lifting capacity, designed for use in rigging, lifting, and anchoring applications where a permanent, non-swivel attachment point is required. Manufactured from Grade 316 stainless steel with an electropolished finish, this eye bolt delivers strong corrosion resistance in wet, marine, and chemically aggressive environments. The 1/4-20 thread is partially threaded along a 5-inch shank, with a 2.5-inch thread length. Licensed riggers and maintenance professionals install this hardware in structural, mechanical, and industrial settings where reliable load-bearing connection points are needed.

This eye bolt is suited for both light industrial and commercial applications requiring a fixed overhead or lateral lift point. The Grade 316 stainless steel construction makes it appropriate for marine environments, food processing facilities, chemical plants, and coastal installations where standard carbon steel would be prone to rust and degradation. The without-shoulder design is intended for use through flat plate or structural members where a shouldered base is not required for the mounting configuration.

Key Features

• 500 lb lifting capacity for reliable light-duty rigging and anchoring
• Grade 316 stainless steel construction for superior corrosion resistance
• Electropolished finish reduces surface roughness and further enhances corrosion resistance
• 1/4-20 partial thread with 5-inch shank and 2.5-inch thread length for flexible installation depth
• Without-shoulder design for flat-plate or structural through-bolt mounting
• 0.5-inch eye inside diameter accommodates standard shackles and hooks

Compatibility

Designed as a fixed lifting eye bolt for use in rigging and tie-down applications requiring a 1/4-20 threaded fastener in Grade 316 stainless steel construction.

Installation Notes

Installation should be performed by a qualified rigger or maintenance professional familiar with applicable ASME B30 rigging standards. Before installation, confirm the mounting structure is rated to support the intended load. Thread the eye bolt fully into a properly tapped or through-hole and use a compatible nut and washer when load direction or mounting material requires additional securing. Never exceed the rated lifting capacity, and inspect the eye bolt and hardware for deformation or corrosion before each use.
