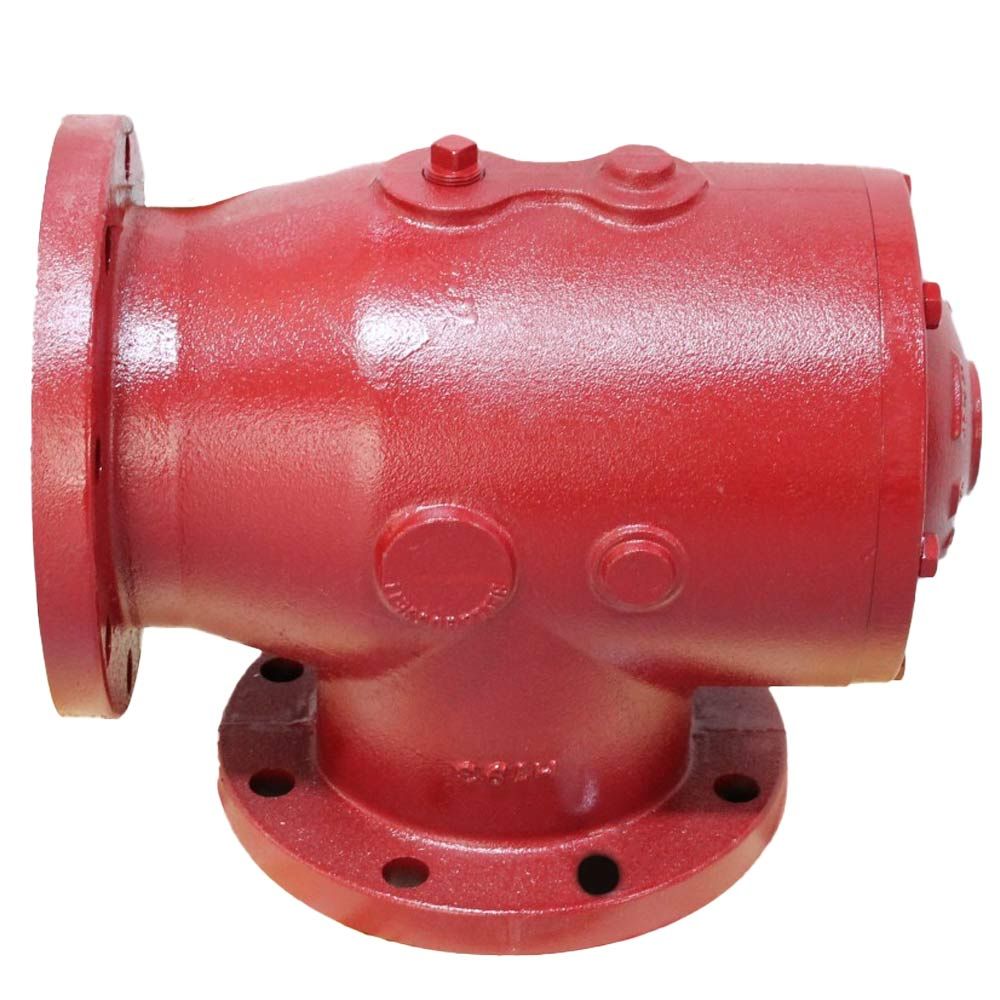

Bell & Gossett 115125 GG-3X Suction Diffuser Plus 6 inch Flange x 6 inch Flange

Product Description

The Bell & Gossett GG-3X Suction Diffuser Plus, model number 115125, is engineered for optimized pump efficiency and space-saving in HVAC systems. This device functions both as an elbow, connecting the return piping directly to the pump suction, and as a coarse Y-strainer, preventing large debris from entering the pump.

• Maximizes flow efficiency with its 6 inch flanged connections.
• Rated for pressures up to 175 psi and temperatures up to 250 degrees Fahrenheit.
• Features removable internals for easy maintenance.

Product Highlights

Constructed from durable cast iron, this suction diffuser ensures long-term reliability in demanding environments. Its EPDM o-ring and 16 mesh bronze strainer effectively condition the flow into the pump, enhancing the overall system performance.

Product Information

Standard Information

• Brand: Bell & Gossett
• Model: GG-3X

Technical Specifications

• Connection Size: 6 inch x 6 inch
• Connection Type: Flanged
• Body Material: Cast Iron
• Max Pressure: 175 psi
• Max Temperature: 250 degrees Fahrenheit
• SKU: 115125
