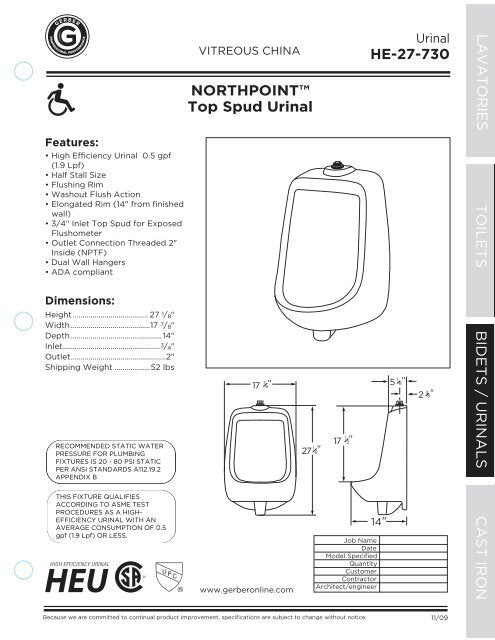

Gerber HE-27-730 Northpoint Top Spud Urinal 0.5 gpf Half Stall

Product Description

The GERBER HE-27-730 is a high-efficiency vitreous china top spud urinal designed for optimal water conservation. Operating at 0.5 gallons per flush (1.9 Lpf), this half stall size urinal features a flushing rim and washout flush action. Its elongated rim extends 14 inches from the finished wall, ensuring ample space. It includes a 3/4-inch inlet top spud for an exposed flushometer and a 2-inch inside (NPTF) threaded outlet connection, making it suitable for various commercial installations.

• High Efficiency Urinal 0.5 gpf (1.9 Lpf)
• Half Stall Size with Elongated Rim (14" from finished wall)
• 3/4" Inlet Top Spud for Exposed Flushometer

Product Highlights

ADA compliant vitreous china urinal with dual wall hangers, designed for water conservation and easy installation.

Product Information

Standard Information

• Brand: GERBER
• Manufacturer Part Number: HE-27-730

Technical Specifications

• Material: Vitreous China
• Model: HE-27-730
• Efficiency: 0.5 gpf (1.9 Lpf)
• Stall Size: Half Stall
• Flushing Action: Flushing Rim, Washout Flush
• Rim Type: Elongated (14 inches from finished wall)
• Inlet Connection: 3/4 inch Top Spud for Exposed Flushometer
• Outlet Connection: 2 inch Inside (NPTF) Threaded
• Mounting: Dual Wall Hangers
• Compliance: ADA Compliant
• Recommended Static Water Pressure: 20 - 80 PSI (per ANSI A112.19.2 Appendix B)
• ASME Qualification: High-Efficiency Urinal
