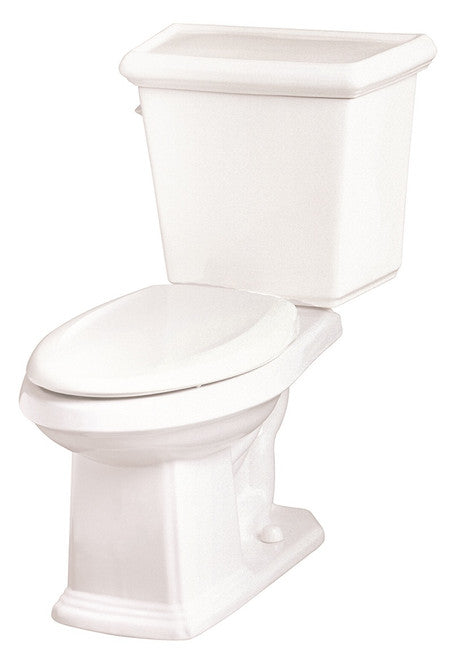

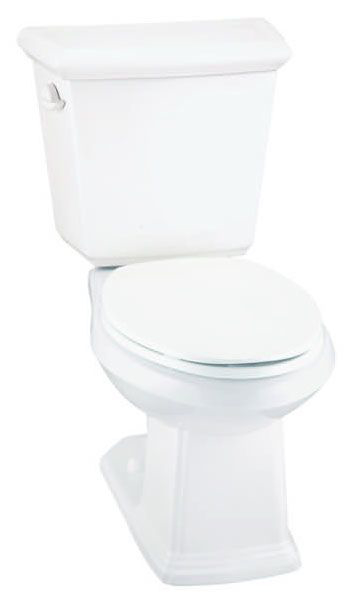

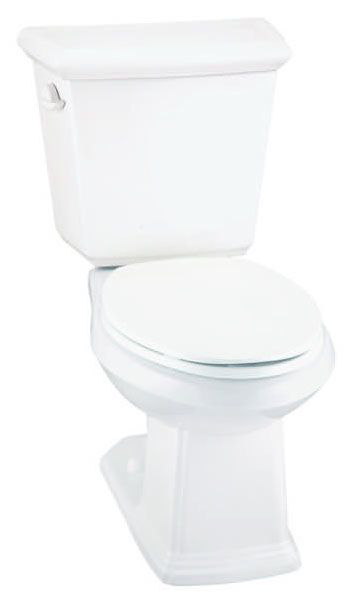

Gerber HE-21-532 Logan Square Elongated Toilet Bowl 1.28 gpf Less Seat

Product Description

The GERBER HE-21-532 Logan Square Elongated Toilet Bowl is a 1.28 GPF vitreous china fixture designed for floor mount installation. It features a 15-1/4 inch bowl height and a 12-inch rough-in. This WaterSense certified toilet bowl includes extra-large dual fed siphon jets and a 2-inch fully glazed trapway for efficient waste removal, meeting ASME A112.19.2, CSA, and UPC standards.

• ADA Compliant design for accessibility.
• Double Nut, Multi-Point Tank-to-Bowl Mounting System for tool-free installation.
• Extra-Large Dual FED Siphon Jets for high power bowl clearing.

Product Highlights

WaterSense certified elongated toilet bowl with dual fed siphon jets and a 2-inch fully glazed trapway for efficient, clog-free operation.

Product Information

Standard Information

• Brand: GERBER
• Manufacturer Part Number: HE-21-532

Technical Specifications

• Type: Elongated
• Material: Vitreous China
• Bowl Height: 15-1/4 inch
• Applicable Standard: ASME A112.19.2, CSA, UPC, HET
• Exclusions: Seat
• Mounting Type: Floor Mount
• Rough-In: 12 inch
• Gallons Per Flush: 1.28
• Outlet Location: Bottom
• Width: 15-1/2 inch
• Water Surface: 10-1/8 inch x 7-1/8 inch
• Product Type: Plumbing
• Water Surface from Rim: 5 7/8"
• Trapway Min: 2"
• Water Seal: 2 1/2"
