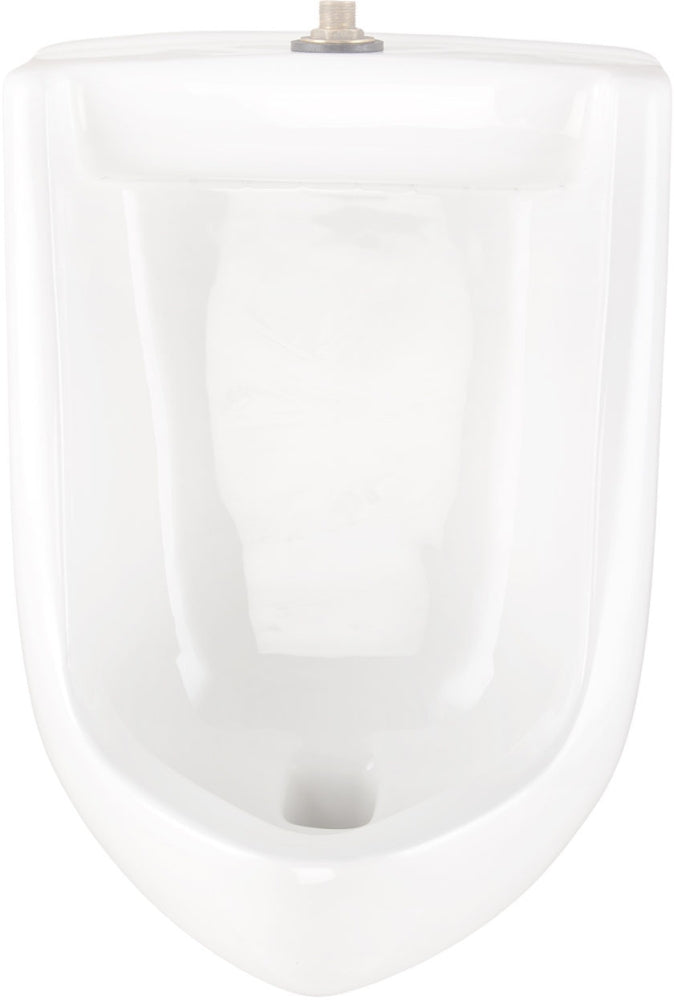

Gerber G0027770 Hamilton Urinal Top Wall Mount 1 gpf 3/4 x 2 in

Product Description

The Gerber G0027770 is a wall-mounted urinal suited for various commercial settings. This product features a siphon jet flush action and top spud inlet, making it effective in water conservation with a flush rate of one gallon per flush.

• Siphon jet flush action ensures efficient cleaning.
• Made from durable vitreous china.
• ADA compliant for accessibility standards.

Product Highlights

Designed for wall mounting, this urinal includes two wall hangers and an integral flush spreader to enhance performance.

Product Information

Standard Information

• Brand: Gerber
• Model Number: G0027770

Technical Specifications

• Type: Siphon Jet Flush Action, Low Consumption
• Material: Vitreous China
• Color/Finish: White
• Height: 26-1/2 inches
• Length: 18 inches
• Depth: 14-1/2 inches
• Inlet Connection: 3/4 inch
• Outlet Connection: 2 inch SPS Female
• Applicable Standards: ADA, ANSI A112.19.2M, CSA, UPC
• Static Water Pressure: 20 to 80 PSI
• Gallons Per Flush: 1
• Inclusions: (2) Wall Hanger, Integral Flush Spreader, Extended Shield, Half Stall Size
• Exclusions: Strainer
