Gerber G001250409 Maxwell Petite Ped Top 20.5 x 17.75 (4 in Center) G001250409

Product Description

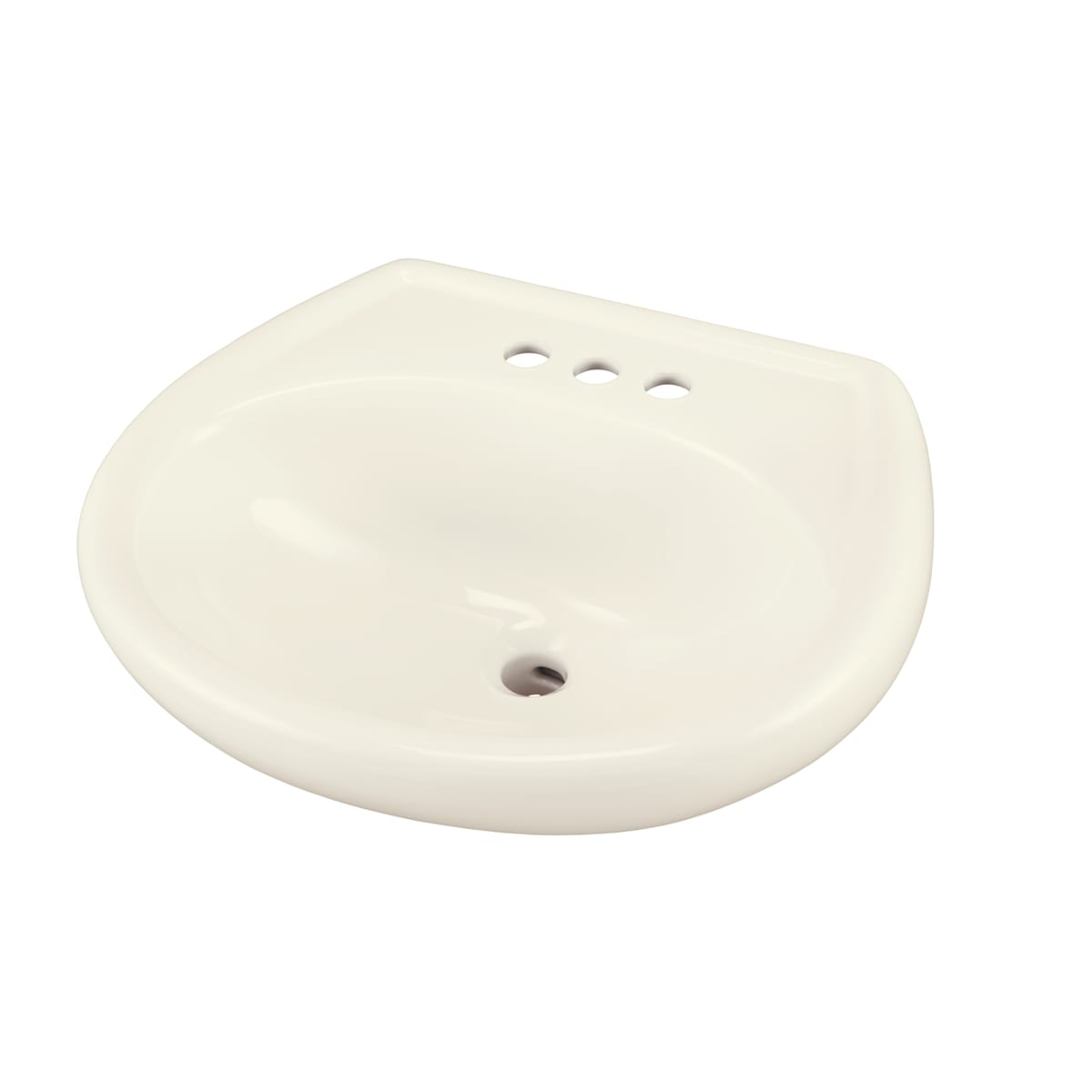

Gerber G001250409 is a Maxwell Petite Ped Top vitreous china sink top designed for wall or pedestal mounting. The top measures 20-1/2 inch by 17-3/4 inch with an 8-1/2 inch height and a 7-1/8 inch rough-in. It features a 4 inch faucet hole center, concealed front overflow, rear-oriented drain location and a 1-1/4 inch drain connection; discrete backsplash and wall hanger are included.

• Vitreous china construction; overall dimensions 20-1/2 in x 17-3/4 in with 8-1/2 in height
• 4 in faucet hole centers, concealed front overflow, 7-1/8 in rough-in, rear-oriented drain
• Includes discrete backsplash and wall hanger; drain connection 1-1/4 in; meets ASME A112.19.2, CSA, UPC

Product Highlights

Compact vitreous china top for wall or pedestal mounting with concealed overflow and 4 in faucet centers

Product Information

Standard Information

• Brand: GERBER
• Manufacturer Part Number: G001250409

Technical Specifications

• Brand: Gerber
• Manufacturer Part Number (MPN): G001250409
• Model #: G0012504
• Material: Vitreous China
• Mounting Type: Wall / Pedestal Mount
• Overall Dimensions: 20.5 in x 17.75 in x 8.5 in
• Length: 20.5 in
• Width: 17.75 in
• Height: 8.5 in
• Bowl Size: 18-1/2 in length x 14-3/4 in width
• Rough-In: 7-1/8 in
• Faucet Hole Center: 4 in
• Drain Connection: 1-1/4 in
• Overflow Style: Concealed front overflow
• Finish Name: Biscuit
• Drain Location: Rear-oriented drain hole
• Inclusions/Features: Discrete backsplash, wall hanger
• Exclusions: Faucet, drain
• Applicable Standard: ASME A112.19.2, CSA, UPC
• UPC: 671052036325
