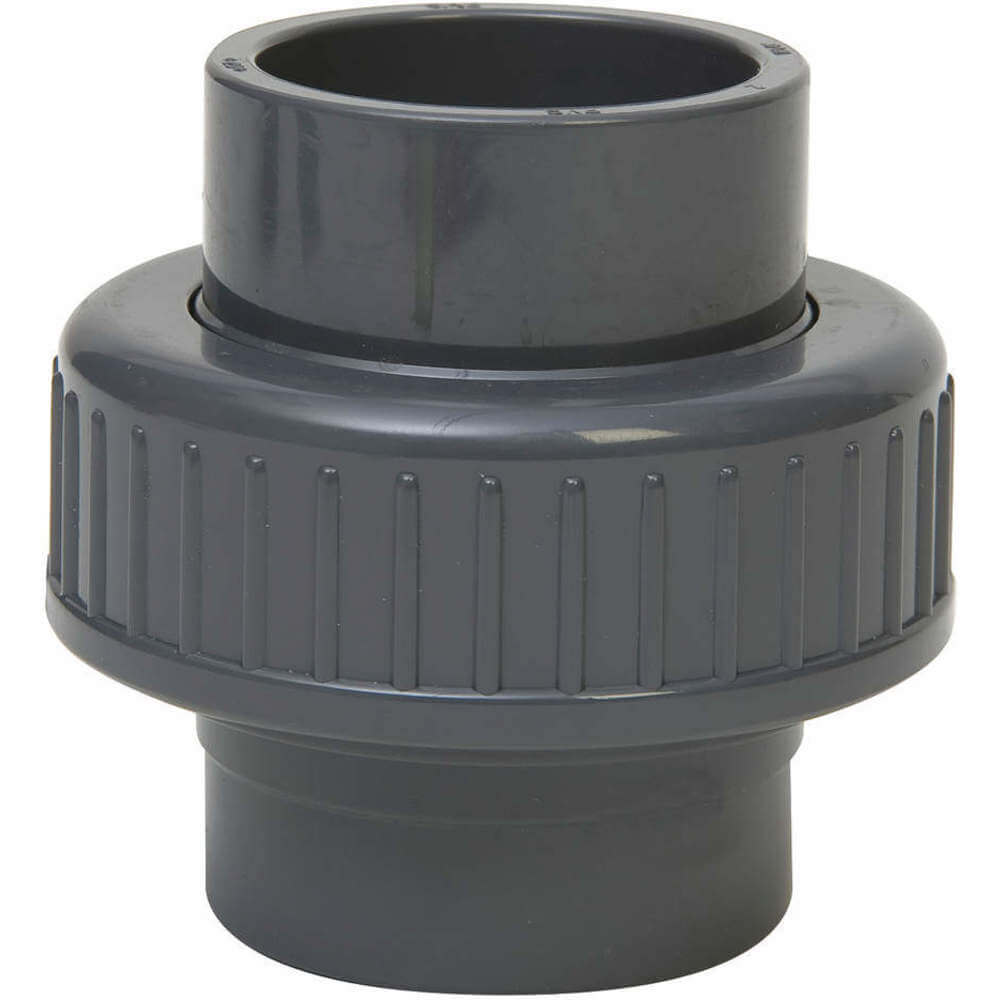

Georg Fischer 9898375015 Union Cpvc 80 1-1/2 Inch

Product Description

The GEORG FISCHER 9898375015 Union is a CPVC fitting designed for various applications. Suitable for both potable and non-potable water systems, this union features a robust CPVC body and EPDM seal. It conforms to ASTM F1970 and ASTM F441 standards, ensuring quality and reliability in pipe connections.

• Constructed from CPVC for durability and chemical resistance.
• Suitable for pipe size 1 1/2"
• Maximum operating pressure of 235 psi @ 73°F.

Product Highlights

This CPVC union fitting is ideal for creating a tight seal in various piping systems, including potable and non-potable water applications.

Product Information

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 9898375015
• Country of Origin: US

Technical Specifications

• Application: Non-Potable Water, Potable Water
• Basic Fitting Shape: Union
• Body Material: CPVC
• Color: Gray
• Connection Type: FNPT x FNPT
• Fitting Side A Gender: Female
• Fitting Side A Nominal Pipe Size: 1 1/2"
• Fitting Side A Outside Diameter: 2 5/16"
• Fitting Side A Pipe Threading: 11 1/2"
• Fitting Side A Type: NPT
• Fitting Side B Gender: Female
• Fitting Side B Nominal Pipe Size: 1 1/2"
• Fitting Side B Outside Diameter: 2 5/16"
• Fitting Side B Pipe Threading: 11.5
• Fitting Side B Type: NPT
• For Pipe Outside Diameter: 1 1/2"
• For Pipe Schedule: 80
• Includes Plug: No
• Includes Pre-applied Thread Sealant: No
• Includes Seal: No
• Includes Shield: No
• Low Lead Certified Standard: NSF 61
• Max. Temp.: 210 F
• Maximum Operating Pressure: 235 psi @ 73 F
• Overall Length: 2 3/4"
• Pipe Fitting Material: CPVC
• Pipe Size: 1 1/2"
• Schedule: 80
• Seal Material: EPDM
• Specific Fitting Shape: Union
• Standards: Astm F1970, Astm F441
• Temp. Range: 32 F to 200 F
