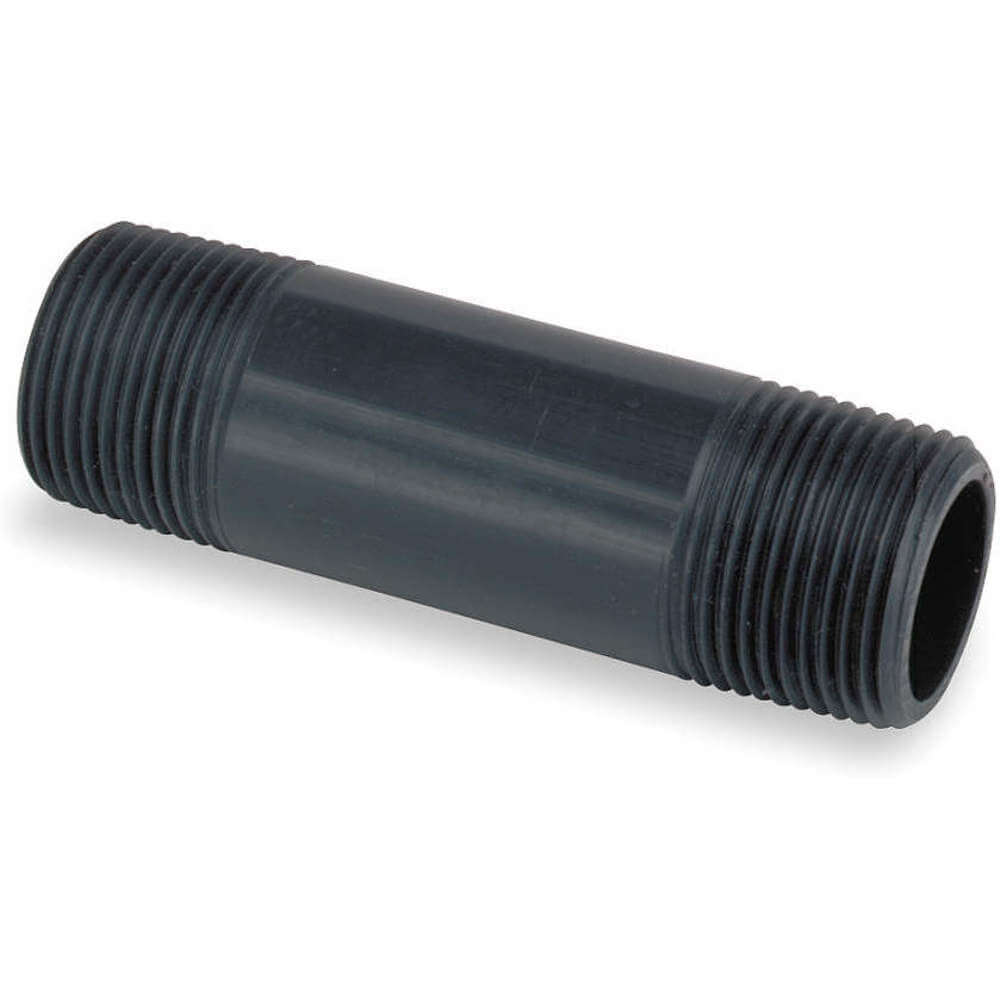

Georg Fischer 9861-109 Cpvc Nipple 3/4x6 in Sch 80

Product Description

The GEORG FISCHER 9861-109 is a Schedule 80 CPVC threaded nipple designed for use in pressurized piping systems handling potable and non-potable water. Measuring 3/4 inch nominal pipe size with an overall length of 6 inches and an outside diameter of 1.05 inches, this nipple features male NPT threads on both ends for straightforward inline connections. Built from CPVC material under the Chlorfit designation, it is rated for a maximum operating pressure of 345 psi at 73 degrees F and a maximum operating temperature of 210 degrees F, making it well suited to demanding plumbing and industrial process lines. Licensed plumbers and pipefitters are the typical installers for this fitting.

This nipple is used in residential and commercial plumbing systems where Schedule 80 CPVC pipe and fittings are specified. Its gray color and CPVC construction make it a common choice for chemical-resistant, corrosion-resistant water distribution lines, both above ground and in exposed mechanical room installations. The MPT connection on both ends allows it to thread directly into Schedule 80 CPVC couplings, valves, and other fittings without adapters. It is appropriate for systems operating as low as 32 degrees F and up to 210 degrees F.

Key Features

• Schedule 80 CPVC construction rated to 345 psi at 73 degrees F operating pressure
• Male NPT threads on both ends for direct inline installation
• 3/4 inch nominal pipe size with 6 inch overall length and 1.05 inch outside diameter
• Suitable for potable and non-potable water applications
• Compliant with ASTM D1784, ASTM F439, NSF 14, and NSF 61 standards
• Operating temperature range from 32 degrees F to 210 degrees F

Compatibility

Designed for use with Schedule 80 CPVC piping systems and fittings using 3/4 inch nominal pipe size with NPT threaded connections.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC requirements. Shut off the water supply and relieve system pressure before removing or installing any threaded fitting. Use CPVC-compatible thread sealant or tape rated for plastic threads — do not use petroleum-based compounds that can degrade CPVC. Do not exceed the rated pressure or temperature limits for the system.

Technical Specifications

• Material: CPVC
• Material Trade Name: Chlorfit
• Nominal Pipe Size: 3/4 inch
• Overall Length: 6 inches
• Outside Diameter: 1.05 inches
• Schedule: 80
• Connection Type: MPT (Male NPT Threaded Both Ends)
• Max. Operating Pressure: 345 psi at 73 degrees F
• Max. Pressure: 420 psi
• Max. Operating Temperature: 210 degrees F
• Max. Temperature: 140 degrees F
• Min. Operating Temperature: 32 degrees F
• Color: Gray
• Application: Potable Water, Non-Potable Water
• Standards: ASTM D1784, ASTM F439, NSF 14, NSF 61

Standard Information

• Brand: GEORG FISCHER
• Manufacturer Part Number: 9861-109
